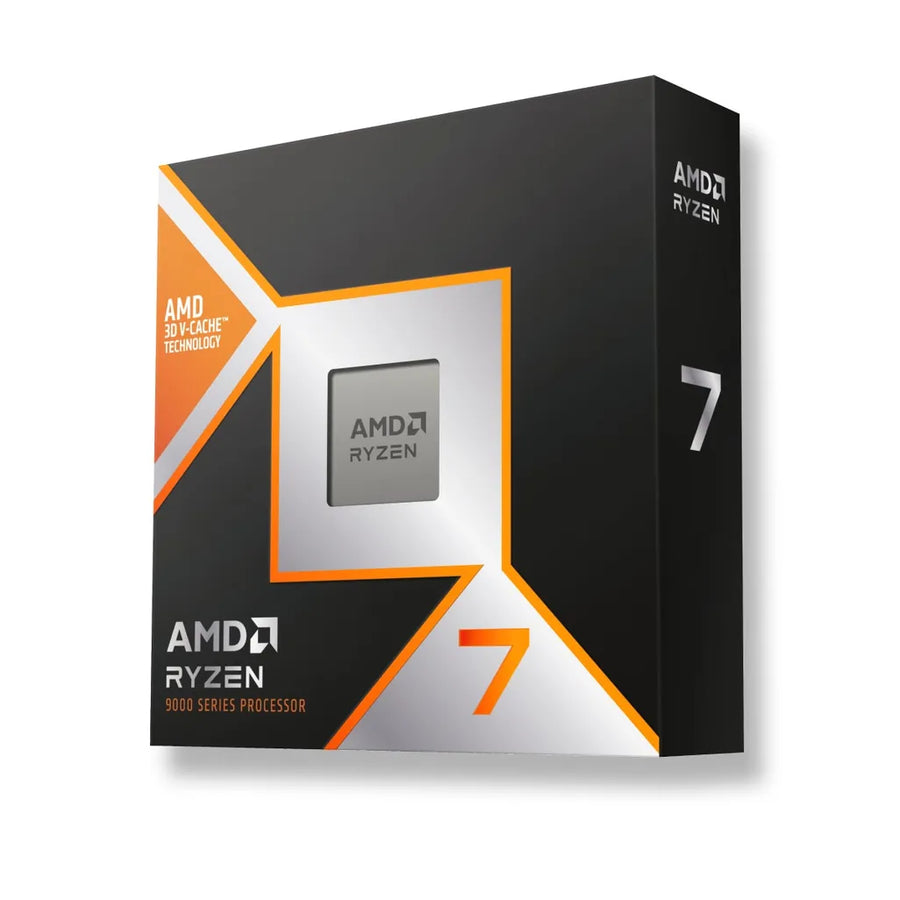

AMD Ryzen 7 9850X3D 8-Core AM5 Processor 4.7GHz Base 5.6GHz Boost 96MB 3D V-Cache 120W

AMD Ryzen 7 9850X3D CPU - AMD Ryzen 7 8-Core Socket AM5 5.6GHz Processor

Designed for gaming and built with Zen 5 architecture, the Ryzen 7 9850X3D 4.7 GHz 8-Core AM5 Processor from AMD is a CPU built for motherboards with an AM5 socket. It features 8 cores and 16 threads with a base clock speed of 4.7 GHz and a max boost speed of 5.6 GHz, although this CPU is unlocked for overclocking. Other technical features include support for up to 192GB of 5600 MHz DDR5 memory, a 96MB L3 cache, integrated AMD Radeon Graphics, and more. Supported connectivity options include USB 3.2 Gen 2, USB 2.0, and PCIe 5.0.

Features:

• 8 Cores & 16 Threads
• 4.7 GHz Base Clock
• 5.6 GHz Max Boost Clock
• AM5 CPU Socket
• 8MB L2 & 96MB L3 Cache
• Integrated AMD Radeon Graphics
• DDR5-5600 Memory
• Unlocked for Overclocking
• Zen 5 Architecture
• Thermal Solution Not Included

Technical Specifications:

General
Name: AMD Ryzen™ 7 9850X3D
Family: Ryzen
Series: Ryzen 9000 Series
Form Factor: Desktops, Boxed Processor
Market Segment: Enthusiast Desktop
AMD PRO Technologies: No
Regional Availability: Global
Former Codename: Granite Ridge AM5
Launch Date: 1/29/2026

Architecture & Performance
Processor Architecture: Zen 5
Processor Technology for CPU Cores: TSMC 4nm FinFET
Processor Technology for I/O Die: TSMC 6nm FinFET
# of CPU Cores: 8
# of Threads: 16
Multithreading (SMT): Yes
Base Clock: 4.7 GHz
Max. Boost Clock: Up to 5.6 GHz
L1 Cache: 640 KB
L2 Cache: 8 MB
L3 Cache: 96 MB
Default TDP: 120W
Package Die Count: 2

Overclocking & Tuning
Unlocked for Overclocking: Yes
AMD EXPO™ Memory Overclocking Technology: Yes
Precision Boost Overdrive: Yes
Curve Optimizer Voltage Offsets: Yes
AMD Ryzen™ Master Support: Yes

Socket & Chipset Support
CPU Socket: AM5
Supporting Chipsets: A620, X670E, X670, B650E, B650, X870E, X870, B840, B850
CPU Boost Technology: Precision Boost 2

Instruction Set & Extensions
Instruction Set: x86-64
Supported Extensions: AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX-plus, SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Thermals & Cooling
Thermal Solution (PIB): Not Included
Recommended Cooler: Liquid cooler recommended for optimal performance
Max. Operating Temperature (Tjmax): 95°C

Connectivity & Expansion
Native USB 3.2 Gen 2 (10Gbps): 4
Native USB 2.0 (480Mbps): 1
PCI Express® Version: PCIe® 5.0
Native PCIe® Lanes (Total/Usable): 28 / 24
NVMe Support: Boot, RAID0, RAID1, RAID5, RAID10

Memory
System Memory Type: DDR5
System Memory Subtype: UDIMM
Memory Channels: 2
Max. Memory: 192 GB
Max Memory Speed:
2x1R DDR5-5600
2x2R DDR5-5600
4x1R DDR5-3600
4x2R DDR5-3600
ECC Support: Yes (Requires motherboard support)

Graphics
Graphics Model: AMD Radeon™ Graphics
Graphics Core Count: 2
Graphics Frequency: 2200 MHz
USB Type-C® DisplayPort™ Alternate Mode: Yes

Product Identification
Product ID (Boxed):
Product ID (Tray): 100-000001973

Security & Virtualization
AMD Secure Processor Support: Yes
AMD Platform Secure Boot: Yes
Windows Secure Boot Support: Yes
UEFI Secure Boot Support: Yes
Windows Device Guard Support: Yes
Supervisor Mode Execution Prevention (SMEP): Yes
Guest Mode Execution (GMET) Trap Support: Yes
Virtualization-Based Security (VBS) Support: Yes
Windows Secured-Core PC Support: Yes
Firmware TPM: Yes
AMD-V (SVM) Support: Yes
AMD AVIC (Interrupt Virtualization) Support: Yes
AMD-Vi (I/O MMU Virtualization) Support: Yes
Second Level Address Translation (SLAT) Supported: Yes
Advanced Encryption Standard New Instructions (AES-NI): Yes
AMD Enhanced Virus Protection (NX bit): Yes
AMD Shadow Stack: Yes

Compatibility
OS Support: Windows 11 – 64-Bit Edition, Windows 10 – 64-Bit Edition, RHEL x86 64-Bit, Ubuntu x86 64-Bit
