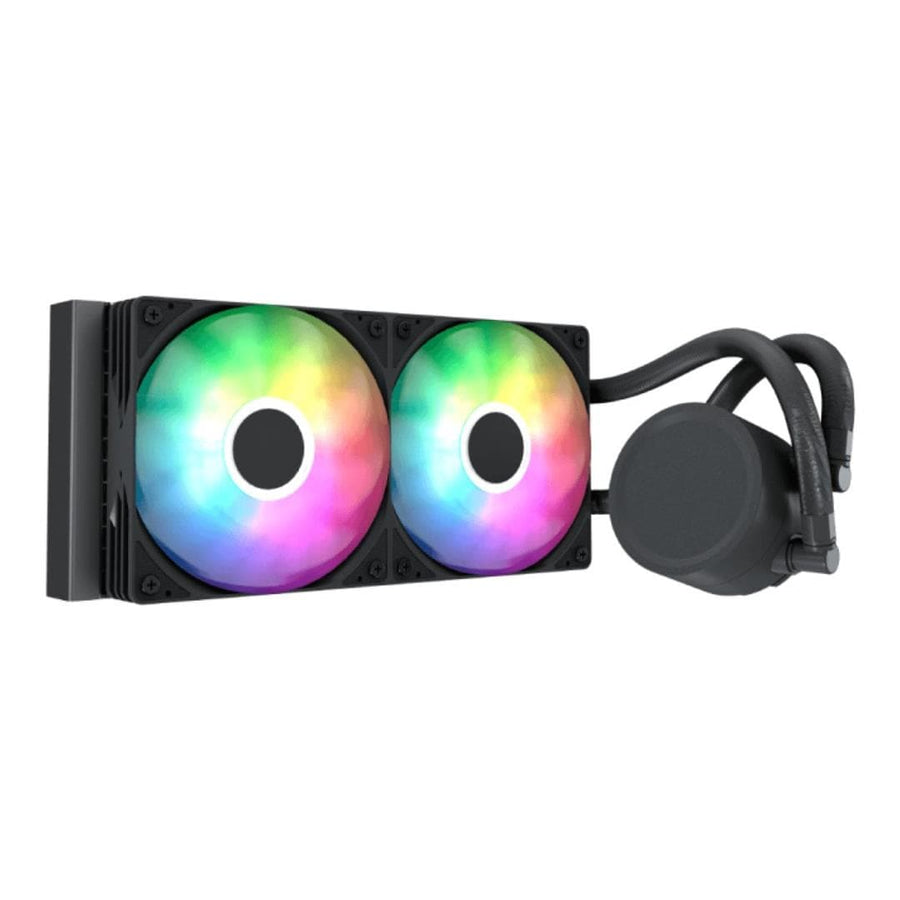

AeroCool Abyss L240R 240mm ARGB AIO CPU Liquid Cooler Black LGA1851 AM5 AM4

AeroCool Abyss L240 240mm ARGB CPU Liquid Cooler Black

Elevate your cooling game with AeroCool’s Abyss L240R, engineered for high-performance thermal management and stunning visual appeal. Its pure copper micro-channel water block and expanded radiator surface ensure efficient heat dissipation, while the pre-installed PWM ARGB fans deliver powerful airflow and pressure. With a vibrant ARGB-illuminated pump head, the Abyss L240R is built to perform and designed to impress.

ARGB Lighting That Stands Out

The pump head and fans feature addressable RGB illumination with 16.8 million colors, letting you fully customize the look to match your build’s personality and mood.

Superior Heat Conductivity

The water block is crafted from pure copper, ensuring excellent heat conductivity. Its micro-channel design accelerates heat dissipation, allowing your system to stay cool and efficient even during intense gaming or heavy workloads. With a TDP rating of 280W, it delivers reliable thermal performance for high-demand setups.

Simple & Clean Design

Integrated fan frames streamline installation and cable routing, while ceramic pump bearings ensure long-term durability and whisper-quiet operation.

High Performance ARGB Fans

Equipped with high airflow and high air pressure fans, Abyss ensures superior cooling performance. These fans not only provide excellent cooling but also enhance visual appeal with vibrant ARGB lighting.

Hassle-free Installation

Designed with fewer parts, the brackets make installation quick and straightforward, saving time and effort during setup.

Specifications:

Model Name: Abyss L240R BK

Block Material: Copper

Radiator Material: Corrosion resistant aluminum alloy

Radiator Dimension: 277 × 120 × 27 mm

TDP (Thermal Design Power): 280W

Pump Speed: 600 ~ 3000 RPM ± 10%

Pump Rated Voltage: DC 12.0V

Pump Rated Power: 4.2W

Pump Noise: 18 dB(A)

Pump Bearing Type: Ceramic bearing

Fan Speed: 660 ~ 1800 RPM ± 10%

Fan Connector Type: PWM 4-Pin

Fan Dimensions (L × W × H): 240 × 120 × 25.4 mm

Fan Starting Voltage: 6V

Fan Rated Voltage: DC 12.0V

Fan Rated Current: 1A

Fan Rated Power: 12W

Fan Air Pressure (Max.) (One Fan): 2.3 mmHâ‚‚O

Fan Air Flow (Max.) (One Fan): 81.5 CFM

Fan Noise Level (Max.): 36.0 dB(A)

Fan Bearing Type: Hydro bearing​

MTBF: 30,000 hrs

Socket: Intel LGA1851 / LGA1700 / LGA1200 / LGA115X  |  AMD AM5 / AM4

LED Type: Addressable RGB LED

LED Rated Voltage: 5 VDC

LED Rated Power: 1.8 W (Pump) / 1.44 W × 3 (Fan × 3)

LED Connector: 3-Pin (+5V-D-G)
