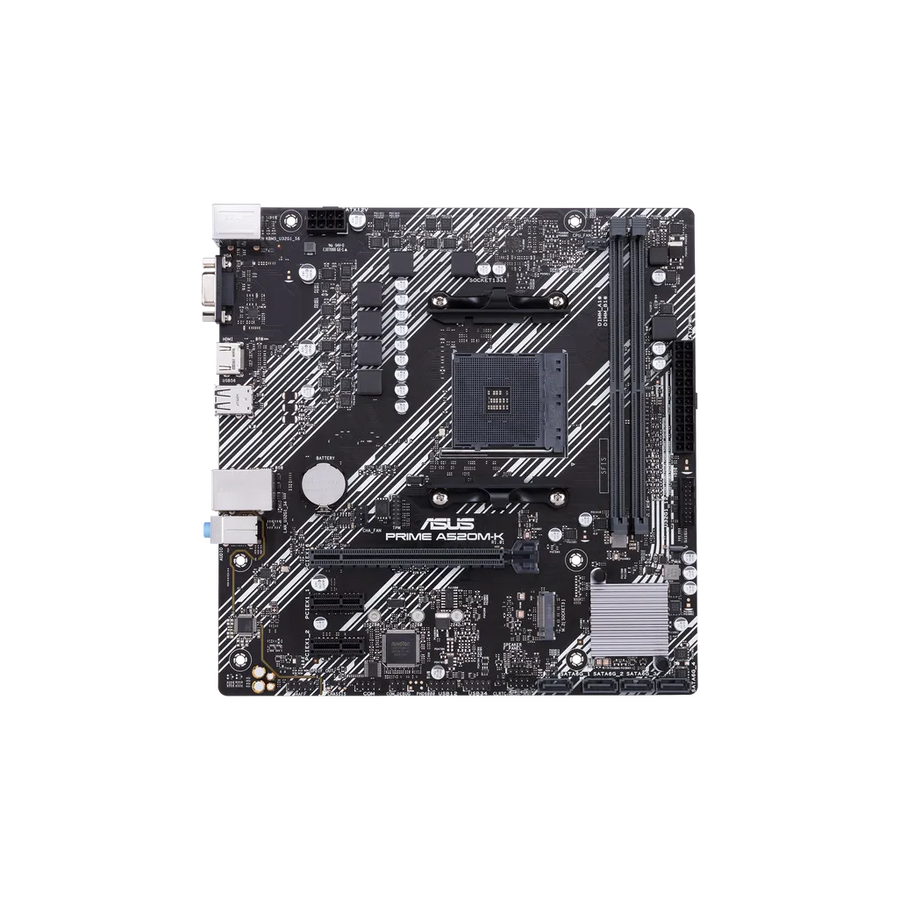

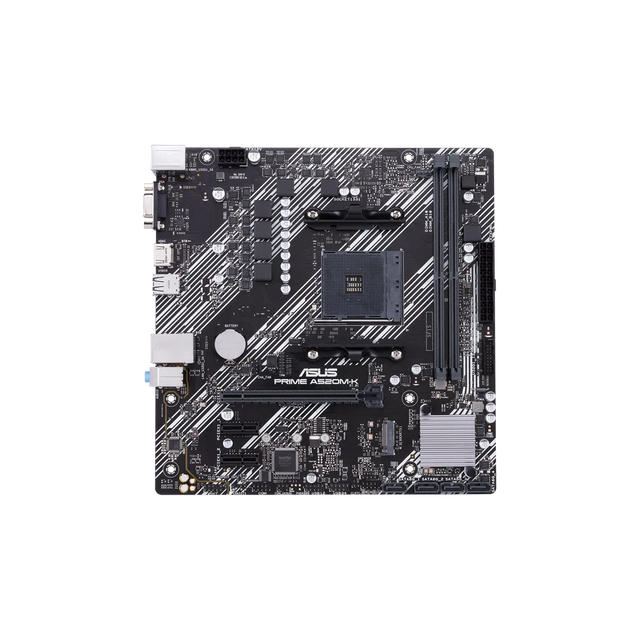

ASUS PRIME A520M-K Micro-ATX Motherboard AMD AM4 A520 DDR4 M.2 HDMI VGA

ASUS PRIME A520M-K

ASUS PRIME A520M-K. Processor manufacturer: AMD, Processor socket: Socket AM4, Compatible processor series: AMD Ryzen™ 3, AMD Ryzen™ 5, AMD Ryzen™ 7. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. USB connector type: USB Type-A. Ethernet interface type: Gigabit Ethernet, LAN controller: Realtek RTL8111H

Specifications

• Processor socket: Socket AM4
• Processor manufacturer: AMD
• Supported processor sockets: Socket AM4
• Compatible processor series: AMD Ryzen 3 3rd Gen,AMD Ryzen 5 3rd Gen,AMD Ryzen 7 3rd Gen,AMD Ryzen 9 3rd Gen
• Compatible processor series: AMD Ryzen 3,AMD Ryzen 5,AMD Ryzen 7
• Maximum internal memory: 64
• ECC: Y
• Supported memory types: DDR4-SDRAM
• Number of memory slots: 2
• Memory slots type: DIMM
• Unbuffered memory: Y
• Memory channels: Dual-channel
• Supported memory clock speeds: 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4400,4600
• Supported memory clock speeds: 2133,2400,2666,2800,2933,3000,3200,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4333,4400,4466,4600,4866
• Wi-Fi: N
• Ethernet LAN: Y
• Ethernet interface type: Gigabit Ethernet
• Wake-on-LAN ready: Y
• LAN controller: Realtek RTL8111H
• Width: 226
• Depth: 221
• Parallel processing technology support: Not supported
• Component for: PC
• Windows operating systems supported: Windows 10
• Motherboard form factor: Micro ATX
• Motherboard chipset family: AMD
• Audio output channels: 7.1
• Audio chip: Realtek ALC887 / Realtek ALC897
• Motherboard chipset: AMD A520
• Windows operating systems supported: Windows 10 x64,Windows 11
• Cables included: SATA
• PCI Express x16 (Gen 3.x) slots: 1
• Number of M.2 (M) slots: 1
• PCI Express x1 (Gen 3.x) slots: 2
• USB 2.0 connectors: 2
• USB 2.0 connectors: 4
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of chassis fan connectors: 1
• TPM connector: Y
• Number of SATA III connectors: 4
• S/PDIF out connector: Y
• Front panel audio connector: Y
• ATX Power connector (24-pin): Y
• CPU fan connector: Y
• 12V power connector: Y
• Number of EATX power connectors: 2
• Number of COM connectors: 1
• USB 2.0 ports quantity: 2
• VGA (D-Sub) ports quantity: 1
• Ethernet LAN (RJ-45) ports: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• PS/2 ports quantity: 1
• HDMI ports quantity: 1
• Microphone in: Y
• USB connector type: USB Type-A
• Headphone outputs: 3
• HDMI version: 2.1
• RAID levels: 0,1,10
• RAID support: Y
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,Serial ATA
• Supported storage drive interfaces: M.2,SATA III
• Number of storage drives supported: 5
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Clear CMOS jumper: Y
• Harmonized System (HS) code: 84733020
