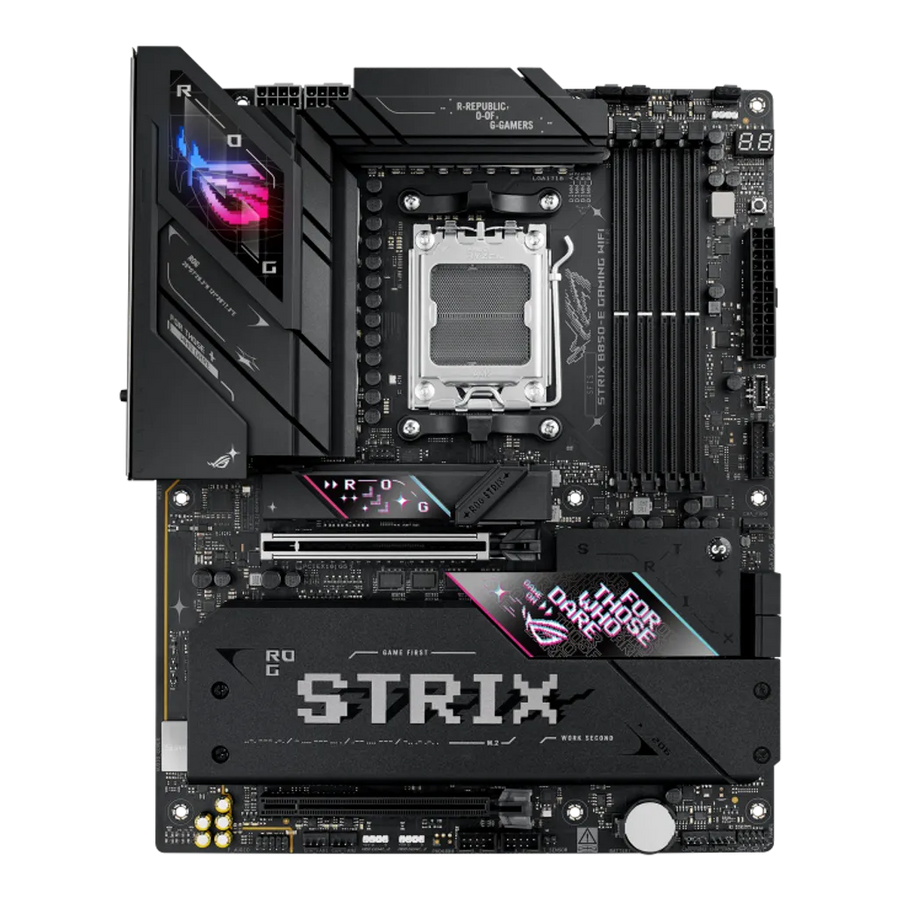

ASUS ROG Strix B850-E Gaming WIFI

ASUS ROG STRIX B850-E GAMING WIFI

ASUS ROG STRIX B850-E GAMING WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 192 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Maximum resolution: 7680 x 4320 pixels. Ethernet interface type: 5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: Wi-Fi 7 (802.11be)

Specifications

• Product colour: Black
• Component for: PC
• Motherboard form factor: ATX
• Power source type: ATX
• Motherboard chipset family: AMD
• Audio output channels: 7.1
• Audio chip: Realtek ALC4080
• Windows operating systems supported: Windows 11
• Motherboard chipset: AMD B850
• Wi-Fi: Y
• Ethernet LAN: Y
• Bluetooth: Y
• Ethernet interface type: 5 Gigabit Ethernet
• Bluetooth version: 5.4
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Wi-Fi standards: Wi-Fi 7 (802.11be)
• Width: 305
• Depth: 244
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Supported processor sockets: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series,AMD Ryzen 8000 Series,AMD Ryzen 9000 Series
• Number of memory slots: 4
• Memory slots type: DIMM
• Unbuffered memory: Y
• Memory channels: Dual-channel
• Supported memory types: DDR5-SDRAM
• Supported memory clock speed (max): 8000
• Maximum internal memory: 192
• ECC сompatibility: ECC & non-ECC
• Parallel processing technology support: Not supported
• Maximum resolution: 7680 x 4320
• Cables included: SATA
• Antenna included: Y
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Y
• Front panel connector: Y
• ATX Power connector (24-pin): Y
• CPU fan connector: Y
• EPS power connector (8-pin): Y
• RGB LED pin header: Y
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
• Number of chassis fan connectors: 5
• Number of CPU fan connectors: 2
• Number of water pump connectors: 1
• Number of temperature sensor headers: 1
• Number of EPS power connectors (8-pin): 2
• Number of RGB LED pin headers: 3
• USB 2.0 ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• Headphone outputs: 1
• S/PDIF out port: Y
• Digital audio optical out: 1
• WiFi-AP antenna jack: 2
• DisplayPorts quantity: 1
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
• DisplayPort version: 1.4
• HDMI version: 2.1
• Line-in: Y
• DVI-D ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
• VGA (D-Sub) ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 0
• USB4 Gen 3x2 ports quantity: 1
• USB4 Gen 2x2 ports quantity: 1
• RAID levels: 0,1,5,10
• RAID support: Y
• Number of HDDs supported: 4
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of storage drives supported: 9
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Clear CMOS button: Y
• Package weight: 2300
• Package height: 87
• Package depth: 281
• Package width: 356
• Quick installation guide: Y
• Weight: 910
• PCI Express x16 (Gen 4.x) slots: 1
• Number of M.2 (M) slots: 5
• PCI Express x16 (Gen 5.x) slots: 1
• 1st M.2 highest PCI Express generation: 5.0
• 5th M.2 highest PCI Express generation: 4.0
• 5th M.2 largest key size: 2280
• 4th M.2 highest PCI Express generation: 4.0
• 4th M.2 largest key size: 2280
• 1st M.2 largest key size: 2280
• 2nd M.2 largest key size: 22110
• 2nd M.2 highest PCI Express generation: 5.0
• 3rd M.2 largest key size: 2280
• 3rd M.2 highest PCI Express generation: 5.0
