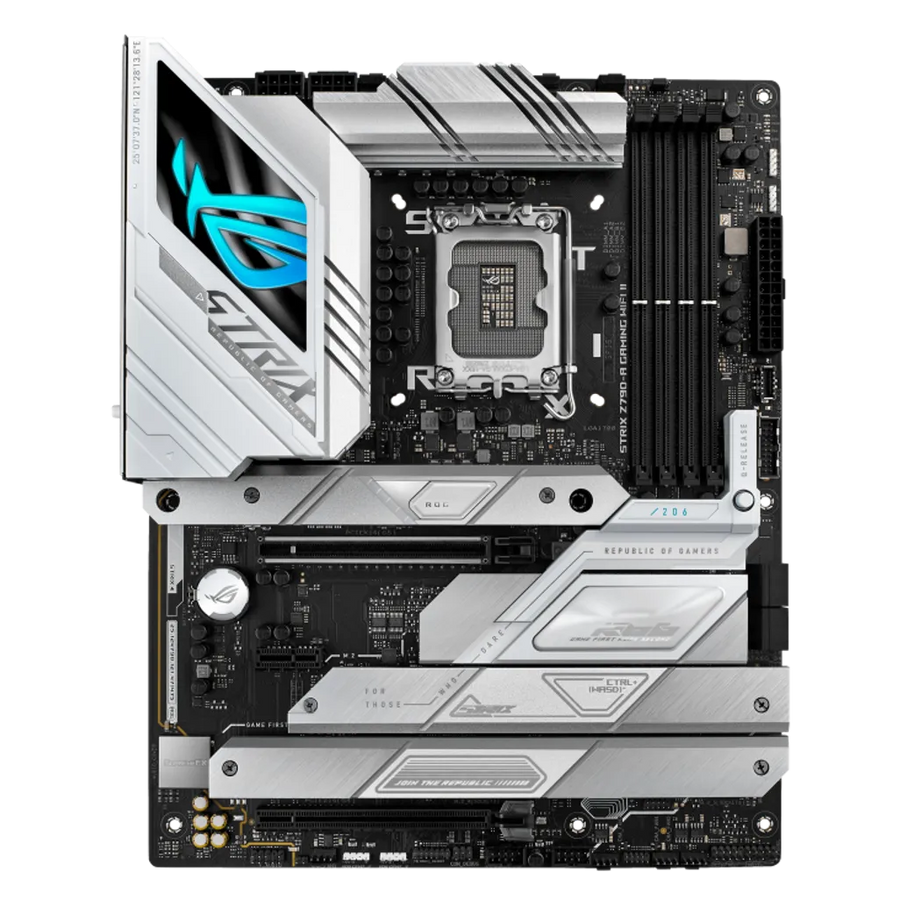

ASUS ROG Strix Z790-A Gaming WIFI Ii

ASUS ROG STRIX Z790-A GAMING WIFI II

ASUS ROG STRIX Z790-A GAMING WIFI II. Processor manufacturer: Intel, Processor socket: LGA 1700, Compatible processor series: Intel® Celeron®, Intel® Pentium® Gold, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™.... Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 5, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 7 (802.11be), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E.... Component for: PC, Motherboard form factor: ATX, Motherboard chipset family: Intel

Specifications

• Wi-Fi: Y
• Ethernet LAN: Y
• Bluetooth: Y
• Ethernet interface type: 2.5 Gigabit Ethernet
• Bluetooth version: 5.3
• Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax),Wi-Fi 6E (802.11ax),Wi-Fi 7 (802.11be)
• Top Wi-Fi standard: Wi-Fi 7 (802.11be)
• Width: 305
• Depth: 244
• Processor manufacturer: Intel
• Processor socket: LGA 1700
• Supported processor sockets: LGA 1700
• Compatible processor series: Intel Celeron,Intel Pentium Gold,Intel Core i3,Intel Core i5,Intel Core i7,Intel Core i9
• Maximum internal memory: 128
• Number of memory slots: 4
• Memory slots type: DIMM
• Non-ECC: Y
• Unbuffered memory: Y
• Memory channels: Dual-channel
• Supported memory types: DDR5-SDRAM
• Supported memory clock speed (max): 7800
• Supported memory clock speeds: 7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5400,5200,5000,4800
• Parallel processing technology support: Not supported
• Component for: PC
• Motherboard form factor: ATX
• Power source type: ATX
• Motherboard chipset family: Intel
• Audio output channels: 7.1
• Audio chip: Realtek ALC4080
• Windows operating systems supported: Windows 10 x64,Windows 11
• Motherboard chipset: Intel Z790
• Cables included: SATA
• Package width: 355
• Package height: 70
• Package depth: 275
• Package weight: 9510
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• Number of SATA III connectors: 4
• Front panel audio connector: Y
• ATX Power connector (24-pin): Y
• CPU fan connector: Y
• EPS power connector (8-pin): Y
• 12V power connector: Y
• RGB LED pin header: Y
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
• Thunderbolt headers: 1
• Number of chassis fan connectors: 5
• USB 2.0 ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
• HDMI ports quantity: 1
• Headphone outputs: 1
• Microphone in: Y
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
• S/PDIF out port: Y
• WiFi-AP antenna jack: 2
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• HDMI version: 2.1
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• Line-in: Y
• RAID levels: 0,1,5,10
• RAID support: Y
• Number of HDDs supported: 4
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of storage drives supported: 9
• BIOS type: UEFI AMI
• BIOS memory size: 256
• Clear CMOS button: Y
• PCI Express x1 (Gen 3.x) slots: 1
• Number of M.2 (M) slots: 4
• PCI Express x16 (Gen 4.x) slots: 2
• PCI Express x16 (Gen 5.x) slots: 1
