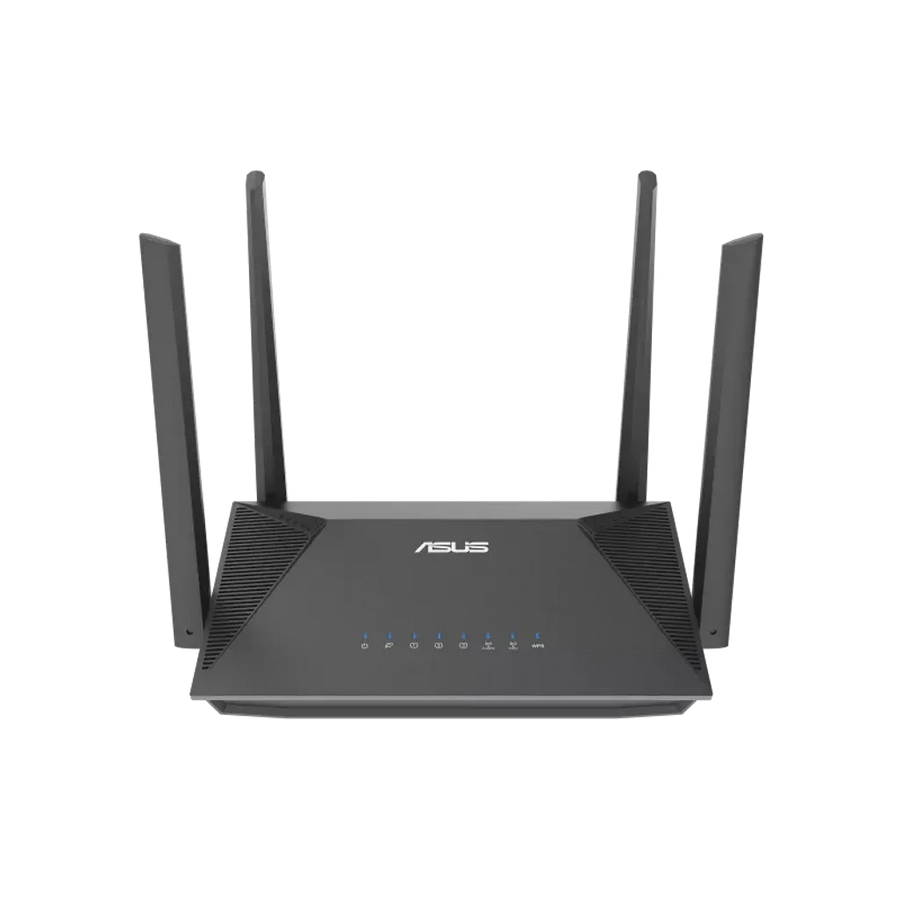

ASUS RT-AX52 Dual-Band WiFi 6 AX1800 AiMesh Router (Black)

ASUS RT-AX52 Pro AX3000 Wireless Router - Dual-band 2.4GHz and 5GHz Gigabit Ethernet

Features:

• New-gen WiFi standard:  Supports the 802.11ax WiFi 6 standard for enhanced efficiency and performance
• Ultra-fast WiFi speed:  AX3000 speed with 1024-QAM, delivering up to 574 Mbps on 2.4GHz and 2402 Mbps on 5GHz bands
• Increased capacity and efficiency:  MU-MIMO and OFDMA technologies enable smooth, simultaneous communication with multiple devices
• Easy extendable network:  AiMesh compatibility allows seamless expansion with other AiMesh routers
• Advanced features:  Includes Instant Guard, parental control scheduling, and built-in VPN support

BSS Coloring Boosts Connection Efficiency

WiFi 6 includes a new feature called BSS Coloring that improves WiFi connection efficiency even in crowded environments. When two neighboring routers send traffic on the same channel, your router has to wait until the channel is free. With BSS Coloring, your WiFi 6 router identifies its data with a unique channel tag ('color') that's different from neighboring networks. Your WiFi 6 router can then ignore other-colored signals on the channel and send data immediately.* This greatly reduces router waiting times and boosts network efficiency.

*A BSS Coloring-compatible client is needed to enjoy the benefit.

Technical Specifications:

Network Standard
IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, WiFi 4 (802.11n), WiFi 5 (802.11ac), WiFi 6 (802.11ax), IPv4, IPv6

Product Segment
AX3000 ultimate AX performance: 2402 Mbps + 574 Mbps

WiFi Data Rate
802.11a: up to 54 Mbps
802.11b: up to 11 Mbps
802.11g: up to 54 Mbps
WiFi 4 (802.11n): up to 300 Mbps
WiFi 5 (802.11ac): up to 867 Mbps
WiFi 6 (802.11ax) 2.4GHz: up to 574 Mbps
WiFi 6 (802.11ax) 5GHz: up to 2402 Mbps

Antenna
External antenna x 4

Transmit / Receive
2.4GHz 2x2
5GHz 2x2

Processor
1.3GHz dual-core processor

Memory
128 MB Flash, 256 MB RAM

Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Operating Frequency
2.4GHz / 5GHz

Operating Mode
Access Point, AiMesh Node, Repeater, Router

I/O Ports
RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 3

Buttons
WPS Button, Reset Button, Power Switch

LED Indicator
Power x 1, WAN x 1, LAN x 3, 2.4G x 1, 5G x 1, WPS x 1

Power Supply
AC Input: 110V~240V (50~60Hz), DC Output: 12V with max. 1 A current

Package Content
RT-AX52 Pro, RJ45 Ethernet Cable, Power Adapter, Quick Start Guide, Warranty Card

Product Weight
298 g

Product Dimensions
192 x 126.3 x 47.5 mm (WxDxH)

AiMesh
Primary AiMesh Router, AiMesh Node

Parental Control
Customized Internet Schedule

Guest Network
Provides Internet connection for guests but restricts access to your local network

Security
Open system, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, SSH, Firewall

VPN
Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP

Traffic Control
Bandwidth Limiter, Traditional QoS, Traffic Monitor, Real-time Traffic Monitor, Wired Traffic Monitor, Wireless Traffic Monitor

WAN
Internet connection type: PPPoE, PPTP, L2TP, Automatic IP, Static IP
Dual WAN, Port triggering, DMZ, DDNS

LAN
DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, Wake on LAN (WOL)

Wireless
UTF-8 SSID, WiFi MAC Address Filter, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

Administration
Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log
