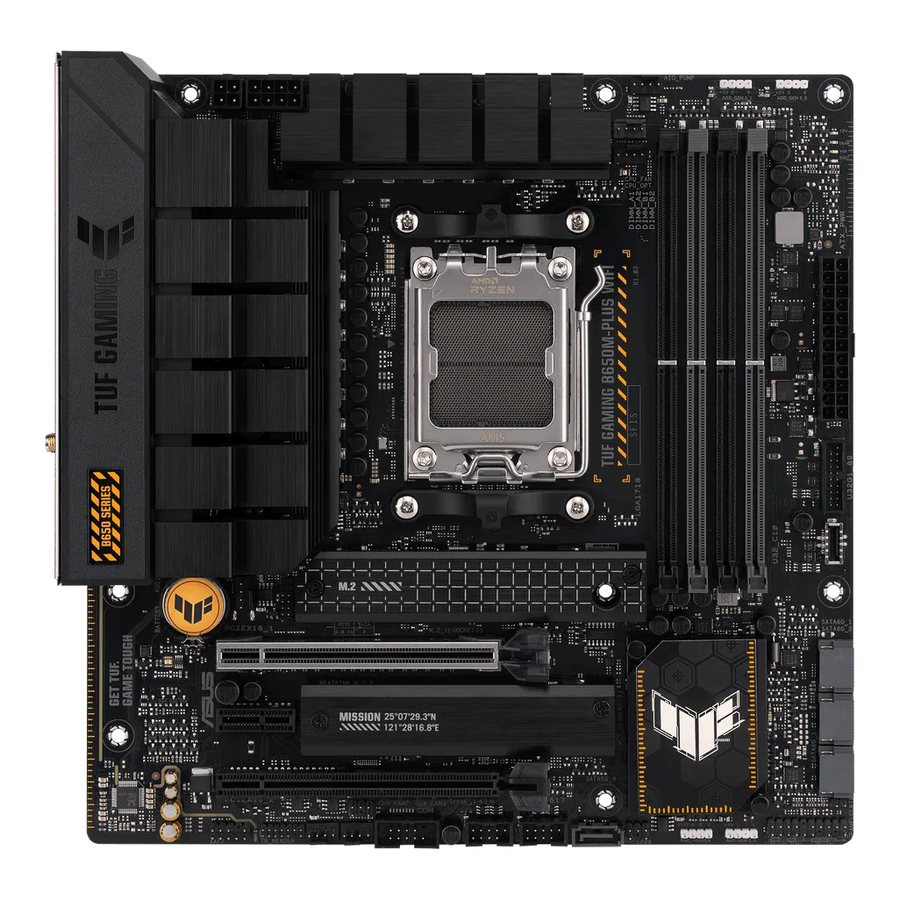

ASUS TUF Gaming B650M-PLUS WIFI

ASUS TUF GAMING B650M-PLUS WIFI

ASUS TUF GAMING B650M-PLUS WIFI. Processor manufacturer: AMD, Processor socket: Socket AM5. Supported memory types: DDR5-SDRAM, Maximum internal memory: 128 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Ethernet interface type: 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Top Wi-Fi standard: Wi-Fi 6 (802.11ax), Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax). Component for: PC, Motherboard form factor: micro ATX, Motherboard chipset family: AMD

Specifications

• Product colour: Black
• Component for: PC
• Motherboard form factor: Micro ATX
• Motherboard chipset family: AMD
• Audio output channels: 7.1
• Windows operating systems supported: Windows 10 x64,Windows 11 x64
• Motherboard chipset: AMD B650
• Wi-Fi: Y
• Ethernet LAN: Y
• Bluetooth: Y
• Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
• Wi-Fi standards: 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax)
• Bluetooth version: 5.2
• Ethernet interface type: 2.5 Gigabit Ethernet,Fast Ethernet,Gigabit Ethernet
• Width: 244
• Depth: 244
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Maximum internal memory: 128
• ECC: Y
• Number of memory slots: 4
• Memory slots type: DIMM
• Non-ECC: Y
• Unbuffered memory: Y
• Memory channels: Dual-channel
• Supported memory types: DDR5-SDRAM
• Supported memory clock speeds: 4800,5000,5200,5400,5600,5800,6000,6200,6400
• Number of M.2 (M) slots: 2
• PCI Express x16 (Gen 4.x) slots: 2
• PCI Express x1 (Gen 4.x) slots: 1
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
• Number of chassis fan connectors: 3
• Number of SATA III connectors: 4
• Front panel audio connector: Y
• ATX Power connector (24-pin): Y
• CPU fan connector: Y
• EPS power connector (8-pin): Y
• RGB LED pin header: Y
• Number of COM connectors: 1
• Thunderbolt headers: 1
• USB 2.0 ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• HDMI ports quantity: 1
• Microphone in: Y
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
• DisplayPorts quantity: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
• USB 3.2 Gen 2x2 Type-C ports quantity: 1
• Line-in: Y
• RAID levels: 0,1,10
• RAID support: Y
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of storage drives supported: 6
• BIOS type: UEFI AMI
• BIOS memory size: 256
• On-board graphics card: N
