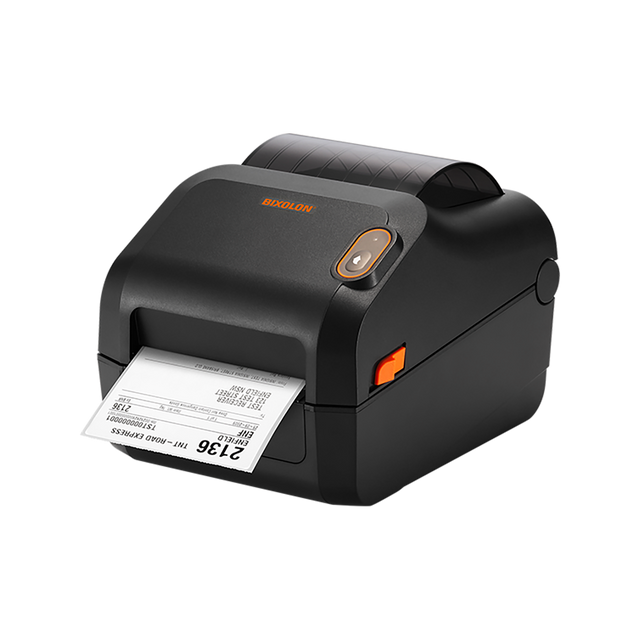

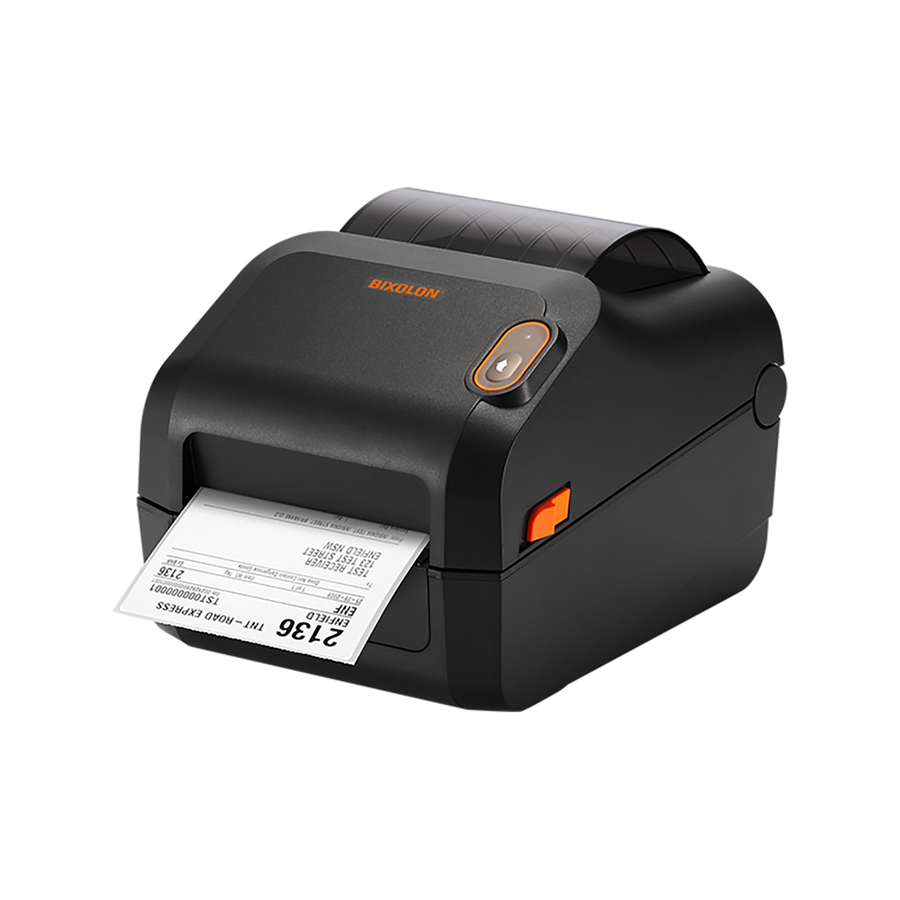

Bixolon XD3-40T 4" Direct Thermal Label Printer

Bixolon XD3-40 4-inch 203dpi Thermal Transfer Wired USB/SERIAL/ETHERNET Label Printer

Durable and Cost-Effective

The XD3-40t, a 4-inch (118mm) cost-effective Direct Thermal or Thermal Transfer Desktop Barcode and Label printer. Featuring a compact, clamshell design paired with high reliability which is ideal for labelling applications within the Manufacturing, Retail, Transport and Logistics and Healthcare industries.

Supporting data processing and print speed up to 5 ips (127mm/sec) to produce high quality 203dpi text, graphics and barcodes paired with memory space of up to 64MB SDRAM, 125MB Flash Memory. Multiple connectivity options including USB 2.0 as standard, plus optional USB + Serial + Ethernet. Flexible core ribbon handling for 1/2-inch and 1-inch options (74m and 300m). While accompanied with an optional field-installable Peeler and an external paper supply, the label printer offers an adjustable paper guide plus holder and space for a media roll diameter of up to 127mm.

The XD3-40t is compatible with market-leading programming languages including SLCS™, BPL-Z™ and BPL-E™ and provides Smart Switch language programming without having to set the mode. Harmonizing with label design software including BIXOLON’s Label Artist-II™ and BarTender® UltraLite for BIXOLON. The XD3-40t also allows easy printer management and support with a single button setup with visual LED, comprehensive online ‘How to’ videos and an onboard QR code with direct links to online support resources. All complimented by a 2-year warranty as standard.

Industrial-Standard Performance

• Supporting Direct Thermal(XD3-40d) and Thermal Transfer(XD3-40t) label printing
• Printing speeds of up to 5ips (127mm/sec)
• Fully compatible with market-leading programming languages
• Simple to set up through a single LED
• Smart switch programming languages without setting the mode

User-Friendly Design

• Easy paper loading with adjustable paper guide and holder
• Easy set up media sensor
• Optional peeler and external paper supply
• Toolless maintenance of roller and print head
• Suitable for both half-inch and full-inch core ribbon (74m and 300m)

Connectivity Options

• Standard: USB
• Optional: USB + Serial + Ethernet
