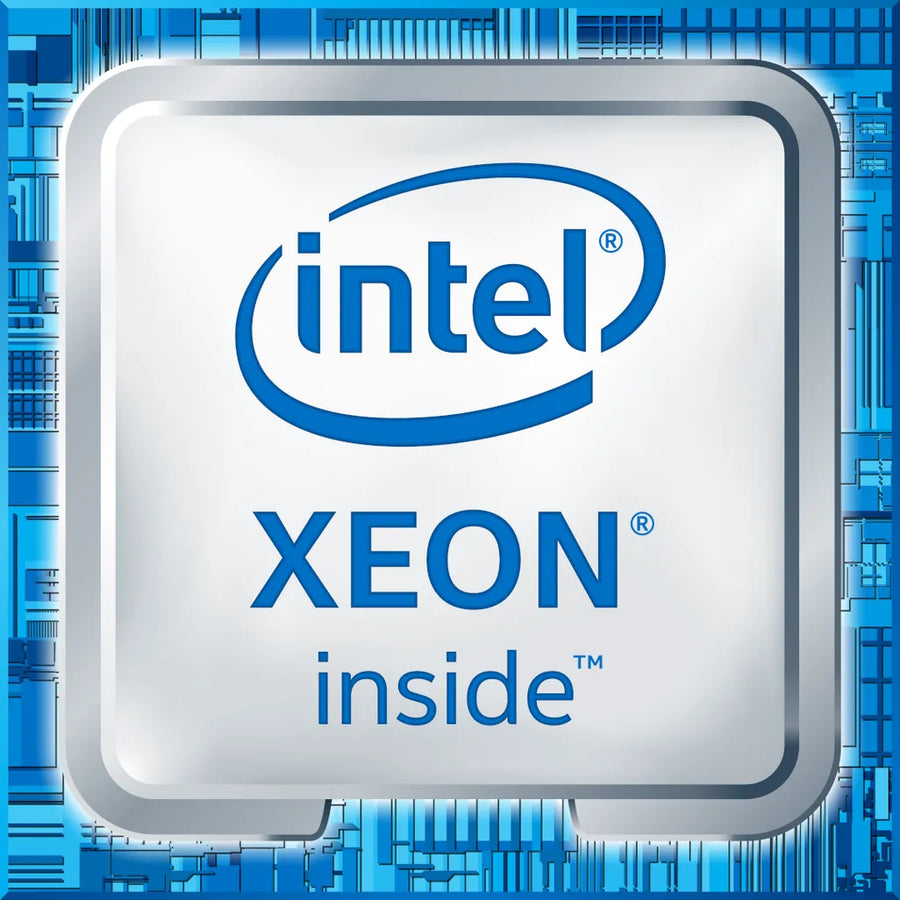

Home/Processors/Intel Xeon E-2224G 4-Core 3.5GHz LGA 1151 Server Processor 4.7GHz Turbo UHD P630 71W

In stock

Intel

Intel Xeon E-2224G 4-Core 3.5GHz LGA 1151 Server Processor 4.7GHz Turbo UHD P630 71W

SKU: BX80684E2224G

R 5,099.00

Incl. VAT · Free delivery over R1,500

BX80684E2224GIntel Xeon E-2224G. Processor family: Intel Xeon E, Processor socket: LGA 1151 (Socket H4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR4-SDRAM. On-board graphics card model: Intel UHD Graphics...

WarrantyManufacturer-backed

Free deliveryTracked, 2–4 days

10-day returnsHassle-free

Expert helpCall 010 541 0089

BX80684E2224G

Intel Xeon E-2224G. Processor family: Intel Xeon E, Processor socket: LGA 1151 (Socket H4), Processor lithography: 14 nm. Memory channels: Dual-channel, Maximum internal memory supported by processor: 128 GB, Memory types supported by processor: DDR4-SDRAM. On-board graphics card model: Intel UHD Graphics P630, Maximum on-board graphics card memory: 128 GB, On-board graphics card base frequency: 350 MHz. Market segment: Server, PCI Express configurations: 1x16, 2x8, 1x8+2x4, Supported instruction sets: SSE4.1, SSE4.2, AVX 2.0. Intel® Turbo Boost Technology 2.0 frequency: 4.7 GHz

Specifications

Cooler included: Y
Processor operating modes: 64-bit
Box: Y
Processor cores: 4
Processor socket: LGA 1151 (Socket H4)
Processor lithography: 14
Processor threads: 4
Processor cache: 8
Processor cache type: Smart Cache
System bus rate: 8
Component for: Server/Workstation
Processor boost frequency: 4.7
Box: N
Processor codename: Coffee Lake
Processor manufacturer: Intel
Thermal Design Power (TDP): 71
Processor family: Intel Xeon E
Processor model: E-2224G
Processor base frequency: 3.5
Processor ARK ID: 191037
Memory types supported by processor: DDR4-SDRAM
Memory clock speeds supported by processor: 2666
Maximum internal memory supported by processor: 128
ECC: Y
Memory channels: Dual-channel
Discrete graphics adapter: N
Discrete graphics adapter model: Not available
On-board graphics adapter: Y
On-board graphics adapter base frequency: 350
Number of displays supported (on-board graphics): 3
On-board graphics adapter DirectX version: 12.0
On-board graphics adapter OpenGL version: 4.5
On-board graphics adapter dynamic frequency (max): 1200
On-board graphics adapter 4K support: Y
On-board graphics adapter maximum resolution (DisplayPort): 4096 x 2304
On-board graphics adapter maximum resolution (eDP - Integrated Flat Panel): 4096 x 2304
On-board graphics adapter refresh rate at maximum resolution (DisplayPort): 60
On-board graphics adapter refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60
On-board graphics adapter refresh rate at maximum resolution (HDMI): 24
On-board graphics adapter model: Intel UHD Graphics P630
Maximum on-board graphics adapter memory: 128
On-board graphics adapter maximum resolution (HDMI): 4096 x 2160
On-board graphics adapter ID: 0x3E96
On-board graphics card: Y
Discrete graphics card: N
Discrete graphics card model: Not available
On-board graphics card base frequency: 350
On-board graphics card 4K support: Y
On-board graphics card DirectX version: 12.0
On-board graphics card OpenGL version: 4.5
On-board graphics card maximum resolution (DisplayPort): 4096 x 2304
On-board graphics card maximum resolution (eDP - Integrated Flat Panel): 4096 x 2304
On-board graphics card maximum resolution (HDMI): 4096 x 2160
On-board graphics card refresh rate at maximum resolution (DisplayPort): 60
On-board graphics card refresh rate at maximum resolution (eDP - Integrated Flat Panel): 60
On-board graphics card dynamic frequency (max): 1200
Maximum on-board graphics card memory: 128
On-board graphics card refresh rate at maximum resolution (HDMI): 24
On-board graphics card model: Intel UHD Graphics P630
On-board graphics card ID: 0x3E96
Status: Launched
Product type: Processor
Launch date: Q2'19
Maximum memory: 128
Bus speed: 8 GT/s
Maximum resolution & refresh rate (DisplayPort): 4096x2304@60Hz
Supported memory types: DDR4-SDRAM
Maximum graphics adapter memory: 128
Processor ID: 0x3E96
Maximum graphics card memory: 128
Servicing status: Baseline Servicing
PCI Express slots version: 3.0
PCI Express configurations: 1x16,2x8,1x8+2x4
Harmonized System (HS) code: 8542310001
Execute Disable Bit: Y
Idle States: Y
Thermal Monitoring Technologies: Y
Maximum number of PCI Express lanes: 16
Supported instruction sets: SSE4.1,SSE4.2,AVX 2.0
Scalability: 1S
CPU configuration (max): 1
Embedded options available: N
PCI Express CEM revision: 3.0
Market segment: Server
Export Control Classification Number (ECCN): 5A992C
Commodity Classification Automated Tracking System (CCATS): G077159
Tjunction: 100
Tcase: 69.3
Intel® Hyper Threading Technology (Intel® HT Technology): N
Intel® Turbo Boost Technology: 2.0
Intel® AES New Instructions (Intel® AES-NI): Y
Enhanced Intel SpeedStep Technology: Y
Intel Trusted Execution Technology: Y
Intel VT-x with Extended Page Tables (EPT): Y
Intel 64: Y
Intel Virtualization Technology (VT-x): Y
Intel Virtualization Technology for Directed I/O (VT-d): Y
Intel® vPro™ Platform Eligibility: Y
Intel® Quick Sync Video Technology: Y
Intel® InTru™ 3D Technology: Y
Intel® Clear Video HD Technology (Intel® CVT HD): Y
Intel® Secure Key: Y
Intel® Optane™ Memory Ready: Y
Intel TSX-NI: Y
Intel® OS Guard: Y
Intel® Memory Protection Extensions (Intel® MPX): Y
Intel Clear Video Technology: Y
Intel® Boot Guard: Y
Intel Software Guard Extensions (Intel SGX): Y
Intel® Transactional Synchronization Extensions: Y
Intel® Turbo Boost Technology 2.0 frequency: 4.7
Processor package size: 37.5mm x 37.5mm
Package type: Retail box
Maximum internal memory: 128
Harmonized System (HS) code: 85423119
