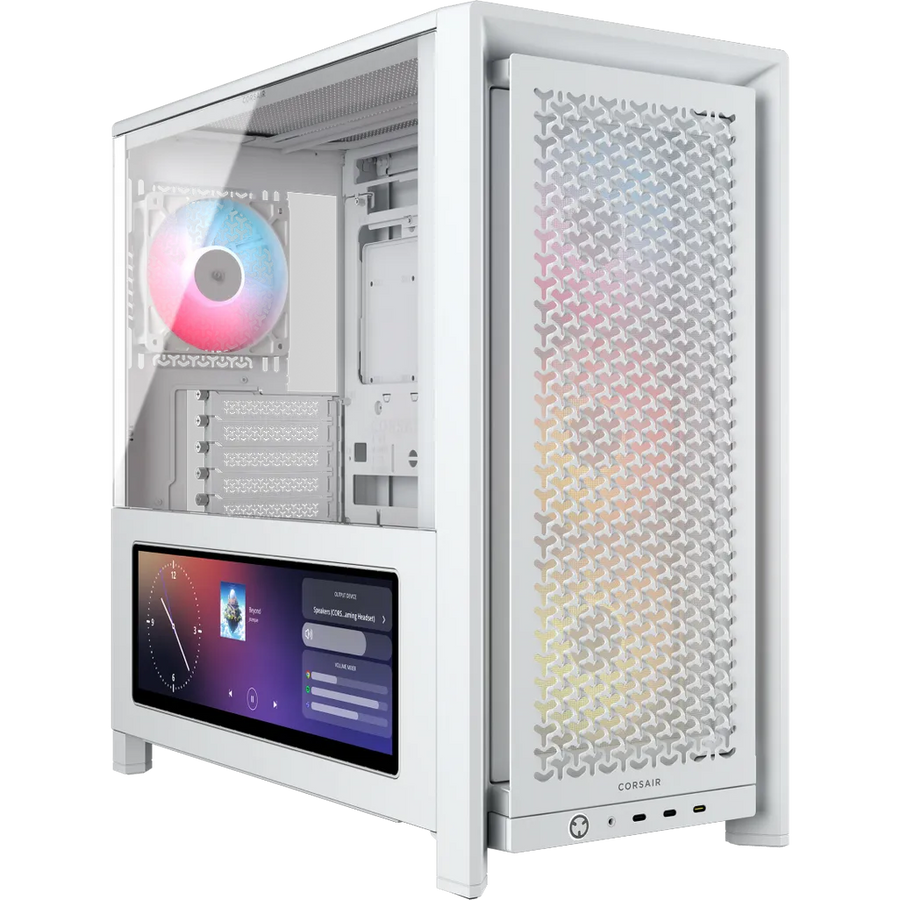

Corsair Frame 4000D LCD RS ARGB Mid-Tower PC Case White 14.5-inch LCD Touchscreen 4 RS120 Fans Dual 360mm Radiator

Corsair FRAME 4000D LCD RS ARGB Premium Mid-Tower PC Case White

LEVEL UP YOUR BATTLESTATION

Take your build to the next level with this standout 14.5" display. Showcase system metrics, calendars, weather apps, or in-game chats.

PREMIUM POWER

BUILD YOUR DREAM MACHINE

This leveled-up version of the FRAME 4000D includes a host of upgrades for peak performance with a pre-installed XENEON EDGE 14.5" LCD Touchscreen, more cooling power, updated front panel I/O, and increased rigidity for the ultimate mid-tower chassis.

FOUR POWERFUL RS120 ARGB FANS INCLUDED

The FRAME 4000D LCD provides full system cooling right out of the box with three RS120 ARGB intake fans and one RS120 ARGB exhaust fan for powerful cooling with very low-noise and customizable lighting. A new 120mm/140mm fan mount has been added to the bottom of the chassis as well, giving builders even more options for fan placement.

FAN FOCUSED

CORSAIR INFINIRAIL™ FAN MOUNTING SYSTEM

The steel multi-point mounting system provides unmatched flexibility for front and roof fan configurations. Easily slide the rail between 120mm and 140mm fan sizes and adjust the fan locations to ensure targeted airflow without limitations of fixed mounting points.

MODERN FRONT PANEL I/O

Puts your connections within easy reach, including a USB 3.2 Gen 2x2 Type-C port with 20Gb/s of bandwidth, 2x USB 3.2 Gen 1 Type-C ports with 5Gb/s of bandwidth, and a combination audio/microphone jack.

• Power Button
• Headphone / Mic Combo Jack
• 2x USB 3.2 Gen 1 Type-C Ports
• USB 3.2 Gen 2x2 Type-C Port

BUILD AND CHILL

DUAL 360mm RADIATOR SUPPORT
Boost your cooling with three dedicated mounting locations for 360mm radiators—front, roof, and side. You can mount up to 13x 120mm fans simultaneously, ensuring continuous cool air intake and efficient hot air exhaust.

HIDDEN FROM VIEW

LOOK, NO CABLES

The case is fully compatible with motherboards with backside connections and works with ASUS BTF, MSI Project Zero, and GIGABYTE Project Stealth motherboards. It features ample connector and cable cutouts along with plenty of tie-downs to keep your build neat and organized.

A BREEZE TO BUILD IN

With a modern design approach to a mainstream PC format, the FRAME 4000D LCD RS ARGB has the convenient features to take the hassle out of your build.

EXTRA AIRFLOW

A new 120mm bottom fan mount gives PC builders even more options for fan placement.

SAG-FREE GRAPHICS CARDS

Every CORSAIR FRAME 4000D LCD includes a GPU Anti-sag Stabilization Arm to keep your GPU steady, so you never have to worry about damaging your PCIe slot.

CABLE SHROUD

Keep unused and overly long cables out of sight with the cable shroud for a clean and organized interior.

Specifications:

Case Supported: Mini-ITX | MicroATX | ATX | E-ATX (305mm x 277mm)

Case Height: 486mm

Case Length: 490mm

Case Width: 239mm

Material: Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Colour: White

Case Size: Mid-Tower

Radiator Compatibility: 120mm, 140mm, 240mm, 280mm, 360mm

Case Window: Tempered Glass

Compatible Liquid Coolers: H60, H100, H115, H150, NAUTILUS, TITAN

Case Warranty: 2 Year

Internal 3.5" Drive Bays: 2

Internal 2.5" Drive Bays: 4

Maximum CPU Cooler Height: 170mm

Maximum PSU Length: 220mm

Case Front IO: (1x) USB 3.2 Gen 2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out

Maximum GPU Length: 430mm

Weight: 12.36kg

Case Expansion Slots: 7 Horizontal or 3 Vertical

Case Power Supply: ATX

Radiator Support - Top: 360mm, 280mm, 240mm

Radiator Support - Front: 360mm, 280mm, 240mm

Radiator Support - Bottom: None

Radiator Support - Side: 360mm, 280mm, 240mm

Radiator Support - Rear: 140mm, 120mm

Fan Support - Top: 3x 120mm, 2x 140mm

Fan Support - Front: 3x 120mm, 2x 140mm, 2x 200mm

Fan Support - Bottom: 3x 120mm

Fan Support - Side: 3x 120mm, 2x 140mm

Fan Support - Rear: 1x 120mm, 1x 140mm

Front IO Motherboard Connections: 1x HD Audio; 1x USB 3.2 Gen1; 1x USB-3.2 Gen2 Type-E; 1x F_PANEL

Reverse Connector Motherboard Support: Yes

Included Fans: 4x RS120 PWM ARGB Fans

Dust Filtration: Yes

Cable Routing Space: 37mm

RapidRoute Included: No

Left Side Panel: Tempered Glass

Right Side Panel: Steel

Vertical Mount Support: Supported (Riser Card Sold Separately)
