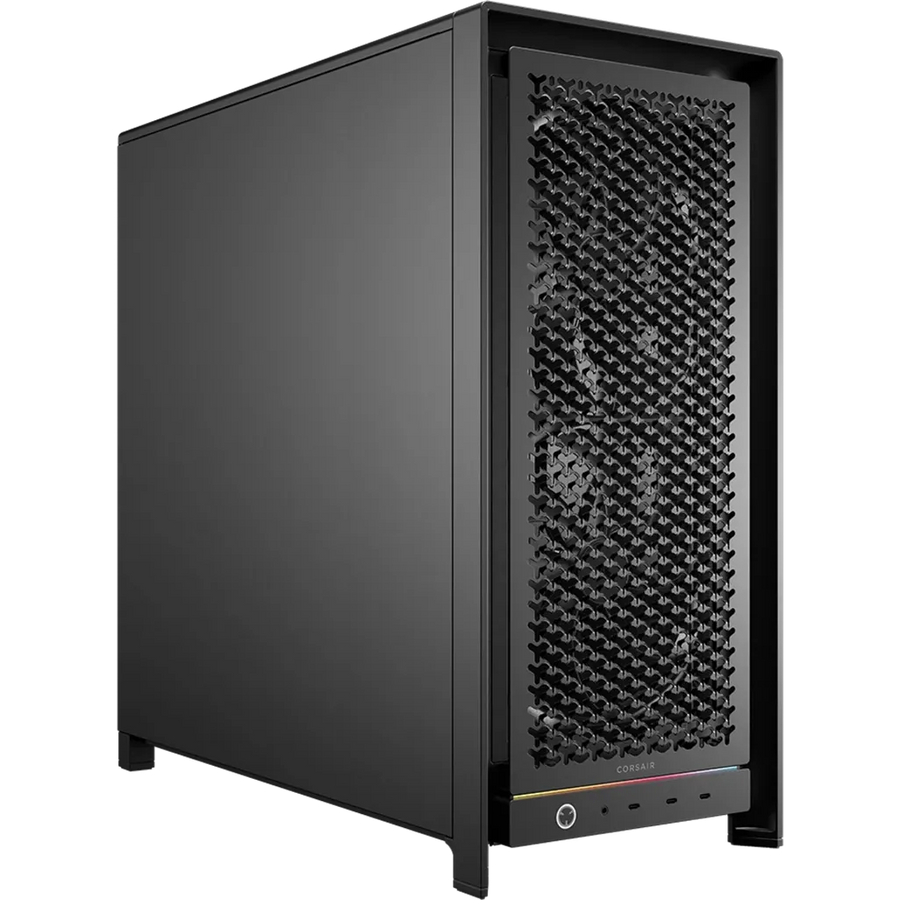

Corsair FRAME 5000D WORKSTATION Modular Mid-Tower PC Case Black

SUPERSIZED

FILL IT UP WITH THE LATEST HARDWARE

The spacious interior is fully compatible with SSI-EEB/CEB motherboards for servers as well as more traditional ATX, E-ATX, and motherboards with reverse connectors.

• A roomy chassis with 9 PCI slots for multi-GPU builds
• Steel side panels feature sound dampening material
• GPU immobilization and anti-sag options
• Support for SSI-EEB/CEB, reverse-connector motherboards
• Dual 200mm intake fans for quiet, powerful airflow
• Optional UV printing and custom hardware configurations available

GPU OPTIMIZED

BUILT FOR DEMANDING WORKLOADS

The interior of the FRAME 5000D WORKSTATION is made for multi-GPU builds with ample vertical clearance for up to four dual-slot GPUs for advanced rendering, CAD, and AI workloads.

PEACEFULLY POWERFUL

BUILT TO ELIMINATE NOISE

The steel side panels feature embedded sound dampening materials for quiet operation, while the massive 200mm intake fans in the ventilated front panel and rear 140mm exhaust fan provide continuous airflow with very little noise.

EXPANSION IS ENCOURAGED

PLENTIFUL STORAGE

Abundant storage options include dual HDD/SDD combo trays and two dedicated 2.5" SSD trays for a total of 2x 3.5" HDDs and up to 6x 2.5" SSDs for those who need more than just M.2 drives.

TAILOR MADE

MODULAR AND CUSTOMIZABLE

The FRAME 5000D WORKSTATION is a flexible and powerful platform that can be customized to fit your exact needs. CORSAIR offers UV printing options for personalized branding, as well as bespoke chassis configurations for a wide variety of build diversity thanks to the FRAME Modular Case System.

Specifications:

Case Supported: Mini-ITX | MicroATX | ATX | E-ATX (305mm x 277mm) | SSI-CEB | SSI-EEB

Case Height: 542mm

Case Length: 556mm

Case Width: 250mm

Material: Steel, Tempered Glass, 3D-Y Airflow Steel, Plastic

Colour: BLACK

Case Size: Mid-Tower

Case Window: Tempered Glass

Compatible Liquid Coolers: H60, H100, H115, H150, NAUTILUS, TITAN

Maximum CPU Cooler Height: 175mm

Case Front IO: (1x) USB 3.2 Gen 2x2 Type-C, (2x) USB 3.2 Gen 1 Type-C, (1x) Audio in/out

Maximum GPU Length: 450mm

Weight: 15.48kg

Case Expansion Slots: 8 horizontal + 3 vertical

Case Power Supply: ATX

Radiator Support - Top: 420mm, 360mm, 280mm, 240mm

Radiator Support - Front: 360mm, 280mm, 240mm

Radiator Support - Bottom: None

Radiator Support - Side: None

Radiator Support - Rear: 140mm, 120mm

Fan Support - Top: 3x 120mm, 3x 140mm

Fan Support - Front: 3x 120mm, 3x 140mm, 2x 200mm

Fan Support - Bottom: 4x 120mm

Fan Support - Side: None

Fan Support - Rear: 1x 120mm, 1x 140mm

Front IO Motherboard Connections: 1x USB-3.2 Gen2x2 Type-E, 1x USB 3.2 Gen1 20-Pin, 1x F_PANEL, 1x HD Audio

Reverse Connector Motherboard Support: Yes

Included Fans: RS Series

Dust Filtration: Yes

Cable Routing Space: 42mm

RapidRoute Included: Yes

Left Side Panel: Tempered Glass

Right Side Panel: Steel

Vertical Mount Support: Supported (Riser Card Sold Separately)
