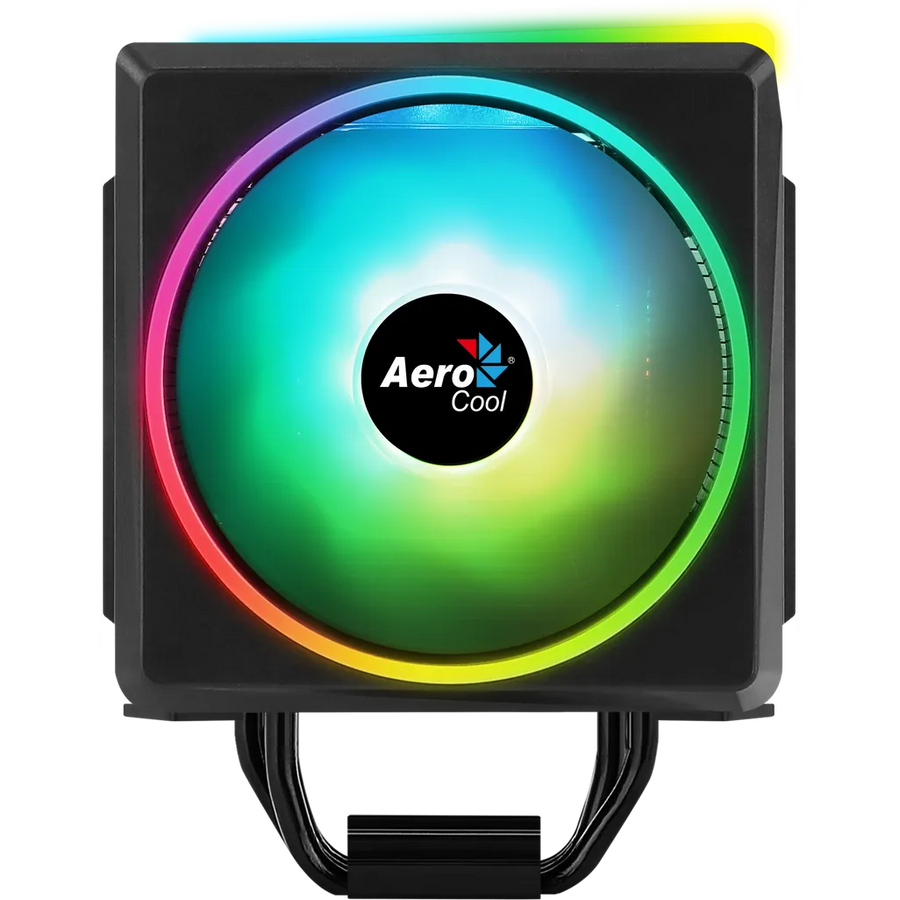

Aerocool Cylon 4F ARGB CPU Air Cooler 145W TDP 4 Heatpipe 120mm PWM ARGB Fan

Cylon 4F ARGB PWM 4P

Aerocool Cylon 4F ARGB CPU Air Cooler ACTC-CL30420.14

PWM air cooling solution with stylish Addressable RGB LED on the front and side of the air cooler. Powered by Heat Core Touch Technology (HCTT) with 4 ultra-efficient thermal heat pipes. Black coating on fins increase heat dissipation area and improves efficiency of dissipation. Cover on the side of the air cooler achieves a unidirectional air flow, improving heat dissipation.

Comes equipped with 12cm Addressable RGB fan with translucent fan blades that can be controlled using Addressable RGB motherboard or LED control button.

Features

• RGB LED design on the front and side of the air cooler adds a stylish flair to your rig
• Comes equipped with 12cm Addressable RGB fan with translucent fan blades
• Comes with built-in RGB lighting effects and compatibility with Addressable RGB motherboards or hubs
• Heat Core Touch Technology with 4 ultra-efficient thermal heat pipes
• Cover on the side of the air cooler achieves a unidirectional air flow, improving heat dissipation
• Upgraded high efficiency fins for optimal thermal performance
• Black coating on fins improves efficiency of heat dissipation
• TDP (Thermal Design Power) up to 145W

Technical Specification

Model: Cylon 4F ARGB PWM 4P

Base Material: Aluminum block with HCTT Heat Core Touch Technology

Fin Material: Aluminum

Heat pipe: Dia. 6mm x 4

Dimension: 126.5 x 76 x 160mm

TDP(Thermal Design Power): 145W

Fan Speed: 800-1800 rpm

Connector: PWM 4-Pin

Dimension: 120 x 120 x 25mm

Bearing Type: Hydraulic Bearing

Started Voltage: 5V

Rated Voltage: 12V

Rated Current: 0.6 A

Power Consumption: 7.2 Watts

Air Flow: 26.1 - 52.5 CFM

Noise: 14 - 26 dBA

MTBF (Mean Time Before Failure): 60000 hrs.

Socket

• LGA 2066 / 2011 / 1700 / 1200 / 115X
• AM5/AM4/AM3+/AM3/AM2+/AM2/FM2/FM1

For compatibility, check that LGA1700/AM5 is listed as a supported bracket on the packaging.
