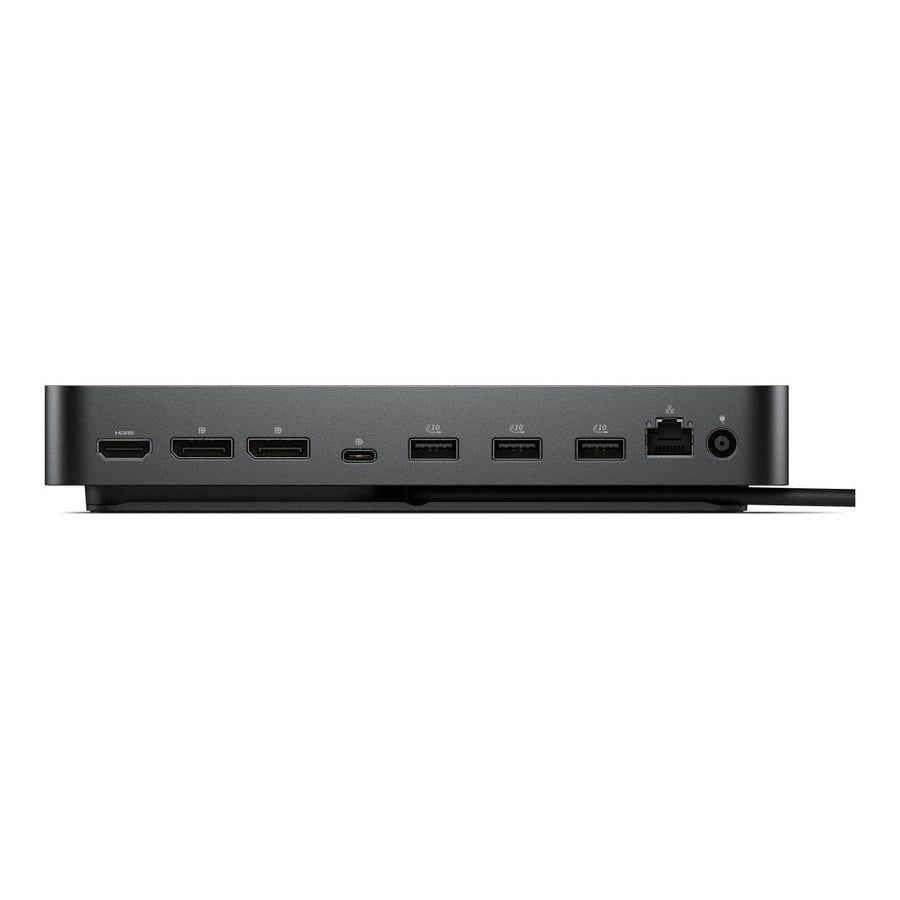

Dell Pro Dock - WD25Z

Dell Pro Dock WD25Z Type-C Docking Station

Fuel your AI productivity

Create a highly compatible, single-cable workspace with a dock that features six USB ports, supports up to four displays, and delivers up to 130W of power to the latest Dell AI PCs, ensuring optimal productivity.

Accelerate manageability

Easily keep your dock updated, ensuring uninterrupted productivity.

Improved manageability

Manage your dock from the Dell Device Management Console by utilizing Dell Display and Peripheral Manager, and Dell Device Management Agent installed on your PC.

Simplify firmware updates

Reduce IT complexity by deploying a single firmware file across workspaces. Minimise end-user disruption with silent firmware updates that are executed upon dock disconnection.

Work with confidence

Enhance your docking experience with universally compatible features including MAC Address Pass-Through and Power Button Sync, for a better docking experience across brands.

Specifications:

Connectivity Technology: Wired

Device Supported: Notebook, Desktop PC

Cable Length: 90 cm

Features

• Power Delivery Pass-through
• LED Power Indicator
• Indicator Light

Management Features

• MAC Address Pass-through
• PXE Boot
• Dock Power Button Sync
• Wake-on-LAN
• WLAN to LAN Switch
• Kernel Direct Memory Access (DMA) Protection
• Dell Command Update (DCU)
• Port Disablement
• Host PC based firmware update
• Firmware update on disconnect

Number of Displays Supported: 4

Screen Mode Supported

• FHD @ 60Hz
• QHD @ 60Hz
• 4K @ 60Hz
• WQHD @ 60Hz
• 5K @ 60Hz
• 6K @ 60Hz
• SXGA @ 60Hz

Supported Resolutions

• 1280 x 1024
• 1920 x 1080
• 2560 x 1440
• 3840 x 2160
• 3440 x 1440
• 5120 x 2160
• 6144 x 3456

Maximum Data Transfer Rate: 1.25 GB/s

Security Slot Type: Kensington Security Slot, Noble Wedge Security Slot

Power Delivery Details

• 4 x USB-A 3.2 Gen 2 (4.5W each)
• 1 x USB-C 3.2 Gen 2 (15W)
• 1 x USB-C Multi-function DisplayPort (7.5W)
• All deliver power with or without PC

Power Delivery: 130W (Dell Systems), 96W (non-Dell Systems)

Video Resolution Details

• SXGA - 60 Hz (Quad Display)
• FHD - 60 Hz (Triple Display)
• QHD - 60 Hz (Dual Display)
• 4K - 60 Hz (Single Display)
• WQHD - 60 Hz (Quad Display)
• WQHD - 60 Hz (Triple Display)
• 5K - 60 Hz (Dual Display)
• 6K - 60 Hz (Single Display)

Ethernet Technology: 2.5 Gigabit Ethernet

Host Interface: USB Type C

Total Number of USB Ports: 6

USB Type-A: Yes

Number of USB 3.2 Gen 2 Type-A Ports: 4

Number of USB 3.2 Gen 2 Type-C Ports: 1

Number of USB Type-A Ports: 4

USB Type-C: Yes

USB Type-C Detail: 1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C Multi-function DisplayPort (7.5W)

Number of USB Type-C Ports: 2

Network (RJ-45): Yes

DisplayPort: Yes

Number of DisplayPorts: 2

DisplayPort Version: 1.4

HDMI: Yes

Number of HDMI Ports: 1

HDMI Version: 2.1

Interfaces: 2 x DP1.4, 1 x HDMI 2.1, 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 1.4
