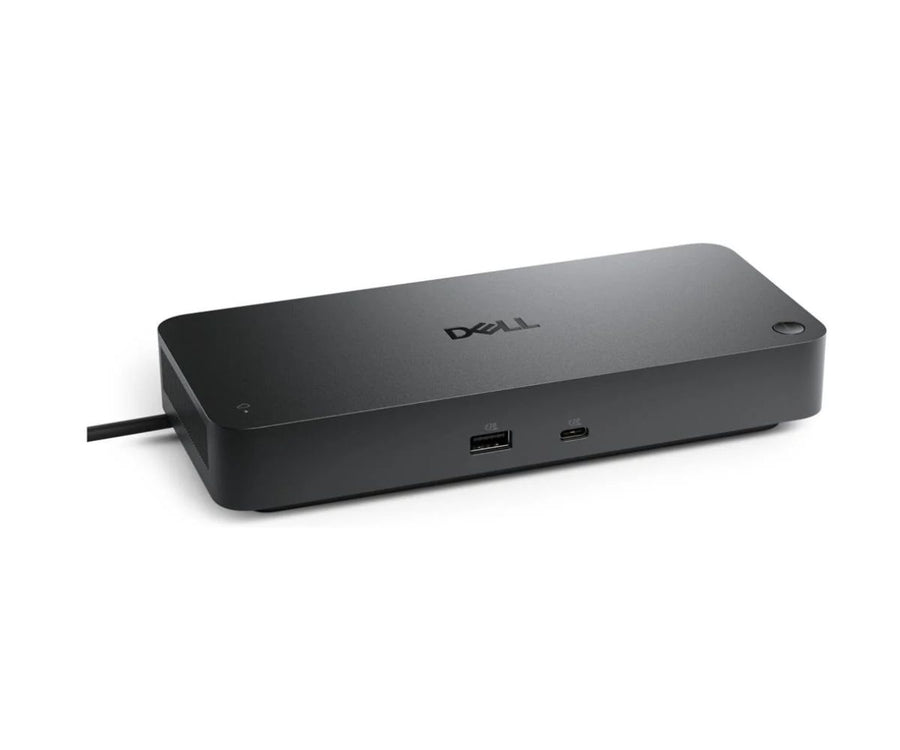

Dell Pro SD25TB4 Thunderbolt 4 Smart Docking Station 130W Power Delivery 4-Display 2.5GbE
Dell Pro SD25TB4 Thunderbolt 4 Smart Docking Station Take on intensive workloads with the latest Thunderbolt 4 smart dock delivering up to 130W of power and remote management capabilities. Features & Design Engineered for success Maximise your AI PC productivity by seamlessly...
Dell Pro SD25TB4 Thunderbolt 4 Smart Docking Station
Take on intensive workloads with the latest Thunderbolt 4 smart dock delivering up to 130W of power and remote management capabilities.
Features & Design
Engineered for success
Maximise your AI PC productivity by seamlessly using Gen AI tools across up to four 4K 60Hz displays, staying powered with up to 130W power delivery, and connecting all your peripherals effortlessly.
Most manageable and secure
Elevate the IT management experience by directly managing your smart docks from the Dell Device Management Console – no PC connection or software required.
Most manageable commercial dock
Reduce IT efforts by scheduling updates during off-hours, while ensuring fleetwide firmware compliance and eliminating end user interruptions.
Effortless maintenance
Remotely configure, deploy and update smart Docks over Wi-Fi via industry’s first holistic peripheral management solution.
Unlock out-of-band management on select Intel vPro® PCs with Intel® Active Management Technology (Intel® AMT) over Thunderbolt via the connected dock.
Work Smarter
Keep users working confidently with enterprise-grade WPA-3 192-bit encryption for secure Wi-Fi communication. Safeguard your sensitive data with tamper-resistant, hardware-based encryption built into your Dell Pro Thunderbolt 4 Smart Dock.
Connect your way
Configure your workspace to your liking with an ambidextrous USB-C cable that can be routed left or right.
Technical Specification
Product: Dell Pro SD25TB4 Thunderbolt 4 Smart Docking Station
Product Type: Smart Dock
Device Supported: Notebook
Connectivity Technology: Wired
Number of Displays Supported: 4
Video Resolution
DP1.4 / DP2.1 with Display Stream Compression
Up to
- 4x 4K (3840x2160) @ 60Hz
- 3x 4K (3840x2160) @ 60Hz
- 2x 6K (6144 x 3456) @ 60Hz
- 1x 8K (7680 x 4320) @ 60Hz
DP1.4 without Display Stream Compression
Up to
- 4x QHD (2560x1440) @ 60Hz
- 3x WQHD (3440 x 1440) @ 60Hz
- 2x 4K (3840x2160) @ 60Hz
- 1x 5K WUHD (5120 x 2160) @ 60Hz
Ethernet Technology: RJ45 Ethernet port, 2.5GbE
USB Ports (Power)
- 4x USB-A 3.2 Gen 2 (4.5W each)
- 1x USB-C 3.2 Gen 2 (15W)
- 1x USB-C Multi-function DisplayPort (7.5W)
- 2x Thunderbolt 4 (15W each)
- All deliver power with or without PC
USB Power Delivery: 130W (Dell systems), 96W (non-Dell systems)
Maximum Power Supply Wattage: 180W
Dimensions (H x W x D): 205 x 90 x 35.25mm
Weight: 579 g
Management Features
Host PC Management
- Intel AMT over Thunderbolt with select Intel vPro PCs
- MAC address pass-through
- PXE Boot
- Dock Power Button Sync
- Wake-On-LAN
- WLAN to LAN switch
- Kernel Direct Memory Access (DMA) protection
Dock Management Features
- Remote firmware updates without a PC
- Host-based firmware updates
- Firmware update on disconnect
- Port Disablement independent of PC
Warranty: 3-year Limited Hardware with Advanced Exchange
Ports and slots
- USB-A 3.2 Gen 2 with PowerShare
- USB-C 3.2 Gen 2
- USB-A 3.2 Gen 2 with PowerShare
- USB-A 3.2 Gen 2 with PowerShare
- USB-A 3.2 Gen 2 with PowerShare
- HDMI 2.1
- DisplayPort 1.4
- DisplayPort 1.4
- USB-C 3.2 Gen 2 Multifunction DisplayPort 1.4
- Thunderbolt 4
- Thunderbolt 4
- 2.5 Gigabit Ethernet (RJ45)
- Power In
