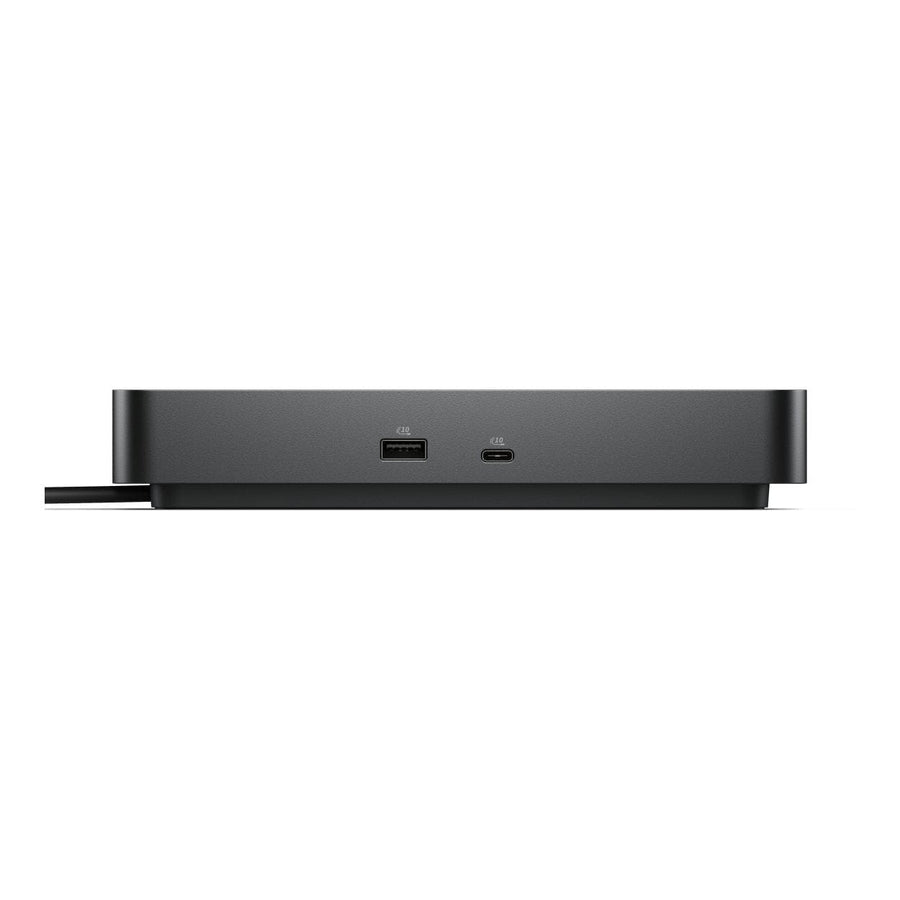

Dell Pro Thunderbolt 5 Dock - WD25TB5

Dell Pro WD25TB5 Thunderbolt 5 Docking Station

Conquer intense workloads with the most powerful Thunderbolt 5 Dock, and with up to 300W power delivery.

Specifications:

Connectivity Technology: Wired

Device Supported: Notebook, Desktop PC

Cable Length: 83 cm

Ethernet Technology: 2.5 Gigabit Ethernet

Maximum Power Supply Wattage: 330 W

Power Source Type: Power Adapter

Features

• Power Delivery Pass-through
• LED Power Indicator
• Indicator Light

Management Features

• Intel AMT over Thunderbolt with select Intel vPro PCs
• MAC Address Pass-through
• PXE Boot
• Dock Power Button Sync
• Wake-on-LAN
• WLAN to LAN Switch
• Kernel Direct Memory Access (DMA) Protection
• Dell Command Update (DCU)
• Port Disablement
• Host PC based firmware update
• Firmware update on disconnect

Number of Displays Supported: 4

Screen Mode Supported

• QHD @ 60Hz
• WQHD @ 60Hz
• 4K @ 60Hz
• 5K @ 60Hz
• 6K @ 60Hz
• 8K @ 60Hz
• 4K @ 120Hz

Supported Resolutions

• 3840 x 2160
• 5120 x 2160
• 2560 x 1440
• 3440 x 1440
• 7680 x 4320
• 6144 x 3456

Maximum Data Transfer Rate: 1.25 GB/s

Security Slot Type: Kensington Security Slot, Noble Wedge Security Slot

Power Delivery Details

• 4 x USB-A 3.2 Gen 2 (4.5W each)
• 1 x USB-C 3.2 Gen 2 (15W)
• 1 x USB-C Multi-function DisplayPort (7.5W)
• 2 x Thunderbolt 5 (15W each)
• All deliver power with or without PC

Power Delivery: Up to 300W (Dell Systems), Up to 240W (non-Dell Systems)

Video Resolution Details

• QHD - 60 Hz (Quad Display)
• WQHD - 60 Hz (Triple Display)
• 4K - 60 Hz (Dual Display)
• 5K - 60 Hz (Single Display)
• 4K - 60 Hz (Quad Display)
• 4K - 60 Hz (Triple Display)
• 6K - 60 Hz (Dual Display)
• 8K - 60 Hz (Single Display)
• 4K - 120 Hz (Quad Display)
• 4K - 120 Hz (Triple Display)

Interfaces/Ports

Host Interface: Thunderbolt 5

Total Number of USB Ports: 6

USB Type-A: Yes

Number of USB 3.2 Gen 2 Type-A Ports: 4

Number of USB 3.2 Gen 2 Type-C Ports: 1

Number of USB Type-A Ports: 4

USB Type-C: Yes

USB Type-C Detail: 1 x USB-C 3.2 Gen 2 (10 Gbps), (15W), 1 x USB-C Multi-function DisplayPort (7.5W)

Number of USB Type-C Ports: 2

Network (RJ-45): Yes

DisplayPort: Yes

Number of DisplayPorts: 2

DisplayPort Version: 2.1

HDMI: Yes

Number of HDMI Ports: 1

HDMI Version: 2.1

Thunderbolt: Yes

Thunderbolt Ports Quantity: 2

Interfaces

• 2 x DP2.1
• 1 x HDMI 2.1
• 1 x USB-C 3.2 Gen 2 Multi-function DisplayPort 2.1
• 2 x Thunderbolt 5
