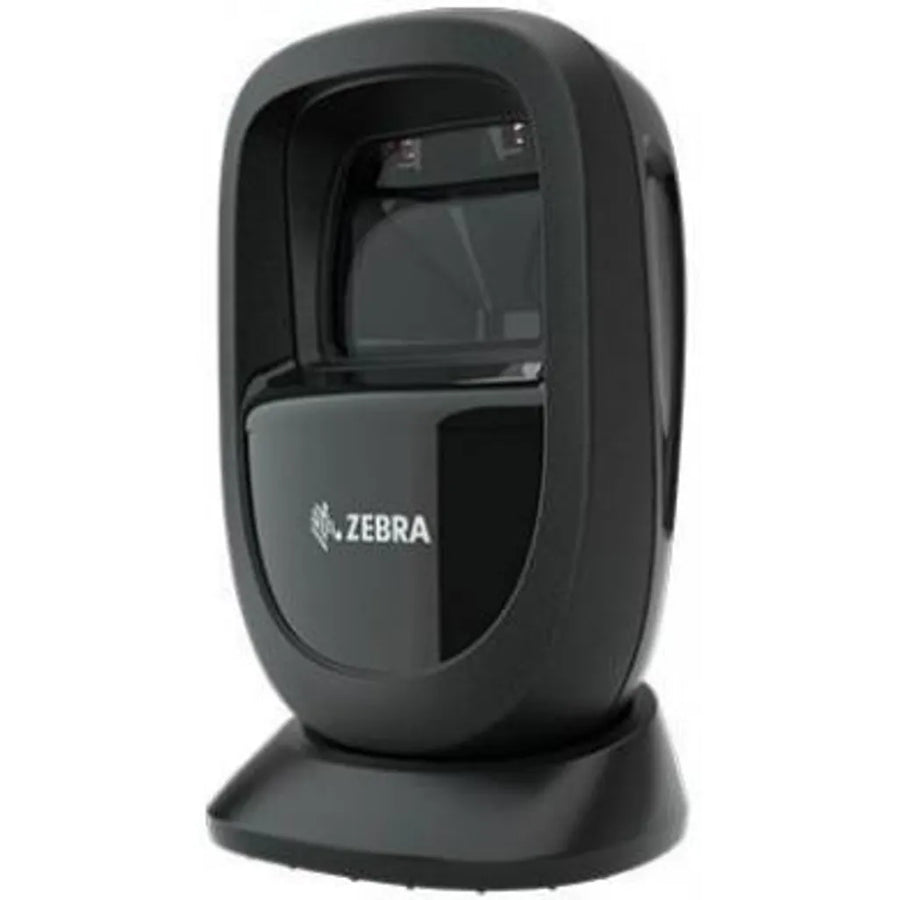

Zebra DS9308 Fixed Mount 1D/2D Barcode Scanner

DS9308-SR4U2100AZE

Zebra DS9308-SR. Type: Fixed bar code reader, Scanner type: 1D/2D, Sensor type: LED. Connectivity technology: Wired, Standard interfaces: RS-232, USB. Product colour: Black, International Protection (IP) code: IP52, Certification: EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1.... Power source type: RS-232, USB, Input voltage: 5.5 V. Weight: 318 g, Width: 86 mm, Depth: 83 mm

Specifications

• Product colour: Black
• International Protection (IP) code: IP52
• Certification: EN 50581:2012, RoHS 2011/65/EU (2015/863) - EN 50581:2012, IEC 63000, REACH 1907/2006, IEC 62368-1 2nd ed. EN 62368-1:2014/AC:2015, UL/IEC 60950-1, 2nd ed. CAN/CSA C22.2 No.60950-1, 2nd ed. IEC 62471:2006 (Ed.1.0), EN 62471:2008 (LED), FCC 47 CFR Part 15B, ICES-003, EN55032, EN55024, EN55035, VCCI, and SABS
• Product colour: Black
• Connectivity technology: Wired
• Standard interfaces: RS-232,RS-485,Keyboard wedge,USB
• Standard interfaces: RS-232,USB
• Width: 86
• Weight: 318
• Height: 145
• Depth: 83
• Operating temperature (T-T): 0 - 50
• Operating relative humidity (H-H): 5 - 95
• Storage temperature (T-T): -40 - 70
• Scanner type: 1D/2D
• Sensor type: LED
• Type: Fixed bar code reader
• Pitch reading angle: -60 - 60
• Optical sensor resolution (W x H): 1280 x 800
• 2D (matrix & stacked) barcodes supported: Aztec Code,Composite Codes,Data Matrix,Dot Code A,Han Xin,MaxiCode,Micro QR Code,MicroPDF417,PDF417,QR Code,TLC-39
• Working distance: 660
• Light levels (direct sunlight): 0 - 107700
• Linear (1D) barcodes supported: Codabar,Code 11,Code 128,Code 39,Code 93,EAN-13,GS1 DataBar,MSI,U.P.C.
• Harmonized System (HS) code: 84716070
• Input voltage: 5.5
• Power source type: RS-232,USB
