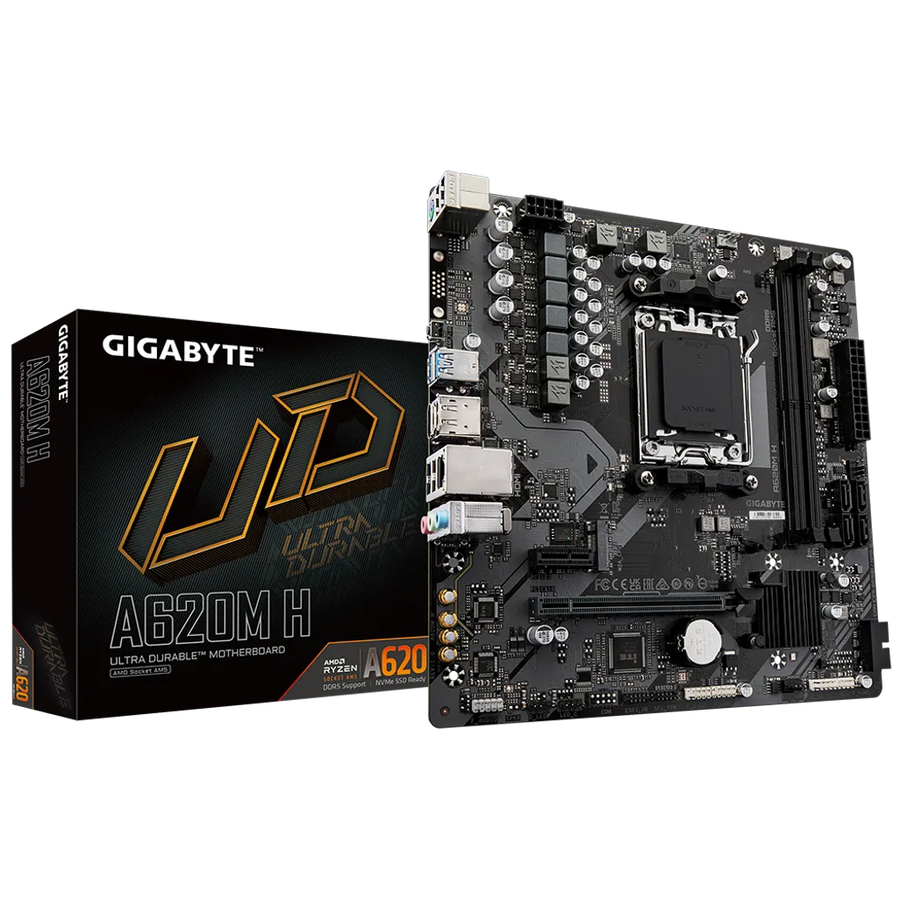

Gigabyte A620M H Micro-ATX Motherboard AMD AM5 DDR5 7200MHz PCIe 4.0 M.2 GbE LAN

GA-A620M-H

GIGABYTE A620M H Motherboard - Supports AMD Ryzen 8000 CPUs, 5+2+2 Phases Digital VRM, up to 7200MHz DDR5 (OC), 1xPCIe 4.0 M.2, GbE LAN, USB 3.2 Gen 1. Processor manufacturer: AMD, Processor socket: Socket AM5, Compatible processor series: AMD Ryzen 7000 Series. Supported memory types: DDR5-SDRAM, Maximum internal memory: 96 GB, Memory slots type: DIMM. Supported storage drive interfaces: M.2, SATA III, Supported storage drive types: HDD & SSD, RAID levels: 0, 1, 10. Maximum resolution: 4096 x 2160 pixels. USB connector type: USB Type-A, USB Type-C

Specifications

• Wi-Fi: N
• Ethernet LAN: Y
• Ethernet interface type: Gigabit Ethernet
• PCI Express x1 slots: 1
• PCI Express x16 slots: 1
• Number of M.2 (M) slots: 1
• Batteries included: Y
• Cables included: SATA
• Bundled software: Norton Internet Security LAN bandwidth management software
• Width: 230
• Depth: 225
• Height: 35
• Processor manufacturer: AMD
• Processor socket: Socket AM5
• Supported processor sockets: Socket AM5
• Compatible processor series: AMD Ryzen 7000 Series
• Maximum internal memory supported by processor: 96
• Number of memory slots: 2
• Memory slots type: DIMM
• Unbuffered memory: Y
• Memory channels: Dual-channel
• Supported memory types: DDR5-SDRAM
• Supported memory clock speed (max): 7200
• Maximum internal memory: 96
• Supported memory module capacities: 1GB,2GB,4GB,8GB,12GB,16GB,32GB,48GB
• ECC сompatibility: non-ECC
• Supported memory clock speeds: 4400,4800,5200,5600,6000,6200,6400,6800,7200
• Maximum resolution: 4096 x 2160
• Parallel processing technology support: Not supported
• HDCP: Y
• DirectX version: 12.0
• Component for: PC
• Motherboard form factor: Micro ATX
• Motherboard chipset family: AMD
• Audio output channels: 7.1
• Windows operating systems supported: Windows 10 x64,Windows 11 x64
• Product colour: Brown
• PC health monitoring: FAN,Temperature,Voltage,Water cooling
• Motherboard chipset: AMD A620
• Package depth: 265
• Package height: 54
• Package width: 265
• Package weight: 897
• USB 2.0 connectors: 2
• USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
• TPM connector: Y
• Number of SATA III connectors: 4
• Front panel audio connector: Y
• Front panel connector: Y
• ATX Power connector (24-pin): Y
• CPU fan connector: Y
• EPS power connector (8-pin): Y
• 12V power connector: Y
• RGB LED pin header: Y
• Total number of SATA connectors: 4
• USB 3.2 Gen 2 (3.1 Gen 2) connectors: 0
• USB 2.0 ports quantity: 4
• Ethernet LAN (RJ-45) ports: 1
• USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
• PS/2 ports quantity: 1
• HDMI ports quantity: 1
• Microphone in: Y
• USB connector type: USB Type-A,USB Type-C
• DisplayPorts quantity: 1
• DisplayPort version: 1.4
• Headphone outputs: 3
• HDMI version: 2.1
• DVI-D ports quantity: 0
• USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 0
• VGA (D-Sub) ports quantity: 0
• USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 0
• RAID levels: 0,1,10
• RAID support: Y
• Number of HDDs supported: 4
• Supported storage drive types: HDD & SSD
• Supported storage drive interfaces: M.2,SATA III
• Number of storage drives supported: 5
• BIOS type: UEFI AMI
• BIOS memory size: 256
• ACPI version: 5.0
• Clear CMOS jumper: Y
• Desktop Management Interface (DMI) version: 2.7
• System management BIOS (SMBIOS) version: 2.7
• Number of battery cells: 1
• Lithium weight per battery: 0.07
• Battery weight: 3
• Battery technology: Lithium-Manganese Dioxide (LiMnO2)
• Battery type: CR2032
• Country of origin: China
• Products per shipping (inner) case: 1
• Warranty period: 3
