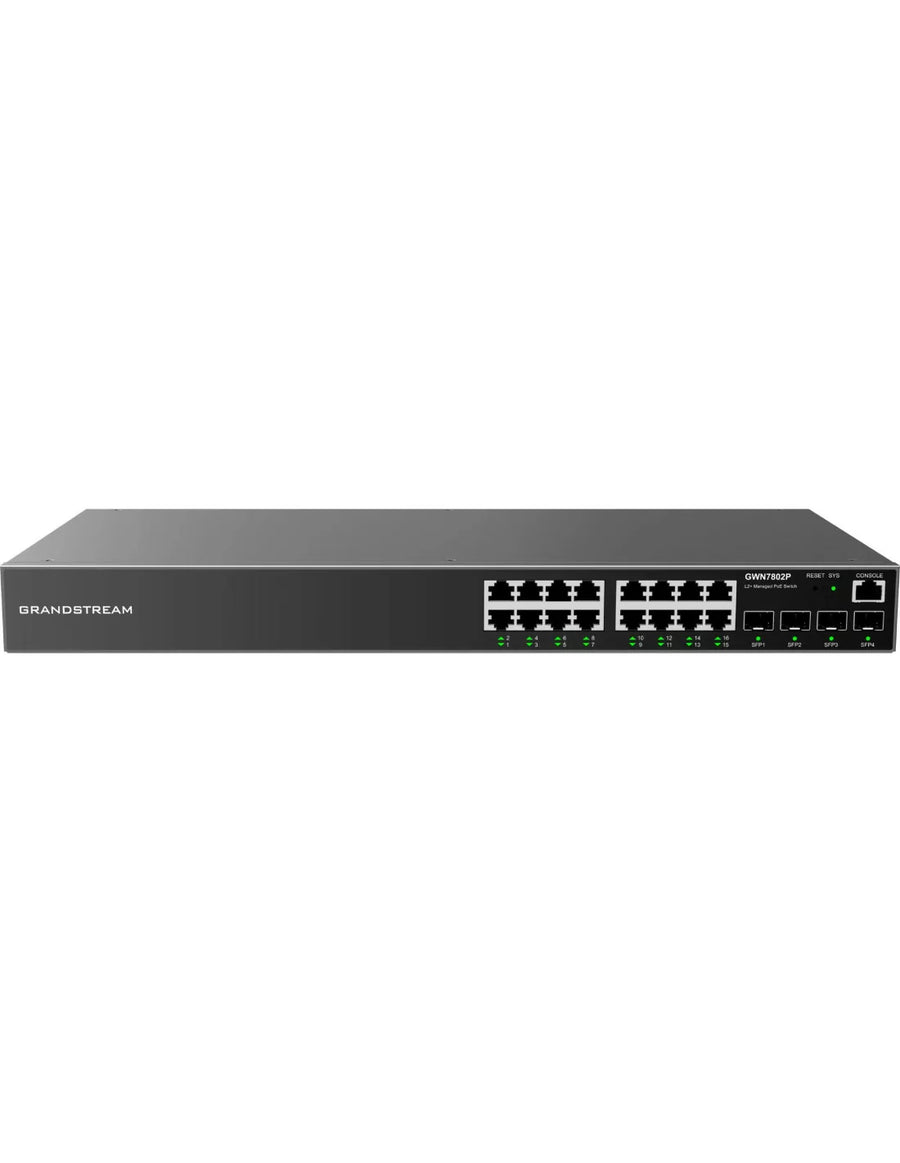

Grandstream Enterprise L2 16 port Managed GbE PoE+ Switch 240W | GWN7802P

Grandstream Enterprise L2++ 16-port Gigabit Ethernet PoE Managed Switch 120W

Enterprise Layer 2++ Managed Network Switches

The next generation of Grandstream’s layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum layer 2++ performance thanks to high-speed SFP or SFP+ ports that enable network speeds up to 10Gbps.

Features:

• All models include high-speed SFP or SFP+ ports
• 8, 16, 24 or 48 Gigabit Ethernet ports
• Offers double the RAM and CPU of the GWN7800 Series
• Smart power control to support dynamic PoE/PoE+/PoE++ (on select models) and power allocation per port for the PoE-capable models
• ARP Inspection, IP Source Guard, DoS protection, port security & DHCP snooping
• Flexible management options include the controller embedded in their WebUI, GDMS Networking (cloud), GWN Manager (software), GWN Series Routers, and CLI
• All models are available now

The Next Generation of Grandstream Switches

The new generation of Grandstream’s layer 2 network switches is here. The GWN7800 Pro Series is ideal for demanding businesses as it provides maximum performance and network speeds.

Maximum Network Speeds

With built-in SFP+ (10 Gbps) and SFP (2.5 Gbps) ports, the GWN7800 Pro Series is ideal for demanding network environments.

Double the Power and Memory

The GWN7800 Pro Series provides double the CPU and RAM of Grandstream's previous generation of Layer 2+ switches

Intelligent and Efficient Power Management

Available with PoE++ and PoE+ ports, the GWN7800 Pro Series intelligently provides power as needed to maximize energy efficiency.

Setup in Seconds

Simply scan the QR code on any GWN7800 Pro Series device to add it to your GDMS or GWN Manager account for easy management.

Ideal for Demanding Networking Environments

Ideal for enterprises, education, medical, and hospitality deployments, the GWN7800Pro Series provides the speeds and capacity to support the most demanding networks.

Technical Specifications:

Network Protocol
IPv4, IPv6, IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3az, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3af/at/bt, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1x

Gigabit Ethernet Ports
24

Gigabit SFP+ Ports
2

PoE Ports (PoE Models Only)
24

PoE Standards
IEEE 802.3af/at

Total PoE Output Power (PoE Models Only)
250W (30W per port)

Total Non Blocking Throughput
44Gbps

Switching Capability
88Gbps

Forwarding Rate
65.472Mpps

Switching
Jumbo frame (maximum length: 12288)
4K VLANs
Port-based VLAN
IEEE 802.1Q VLAN tagging
QinQ
MAC-based VLAN
Protocol-based VLAN
Voice VLAN including auto voice VLAN
Tagged OUI and untagged OUI
GVRP (pending)
ERPS (pending)
16K MAC addresses

Security
User hierarchical management and password protection
HTTPS
SSH
Telnet
Identity authentication, including 802.1X and MAC authentication
AAA authentication, including RADIUS and TACACS
Storm control
Port isolation
Port security, sticky MAC address, filtering invalid MAC addresses
IP/IPv6 source guard
DoS attack prevention
ARP inspection
CPU protection
Loop protection, including port loopback detection, BPDU protection, root protection, and loopback protection
Kensington Security Slot (Kensington Lock) support
Firmware signature
