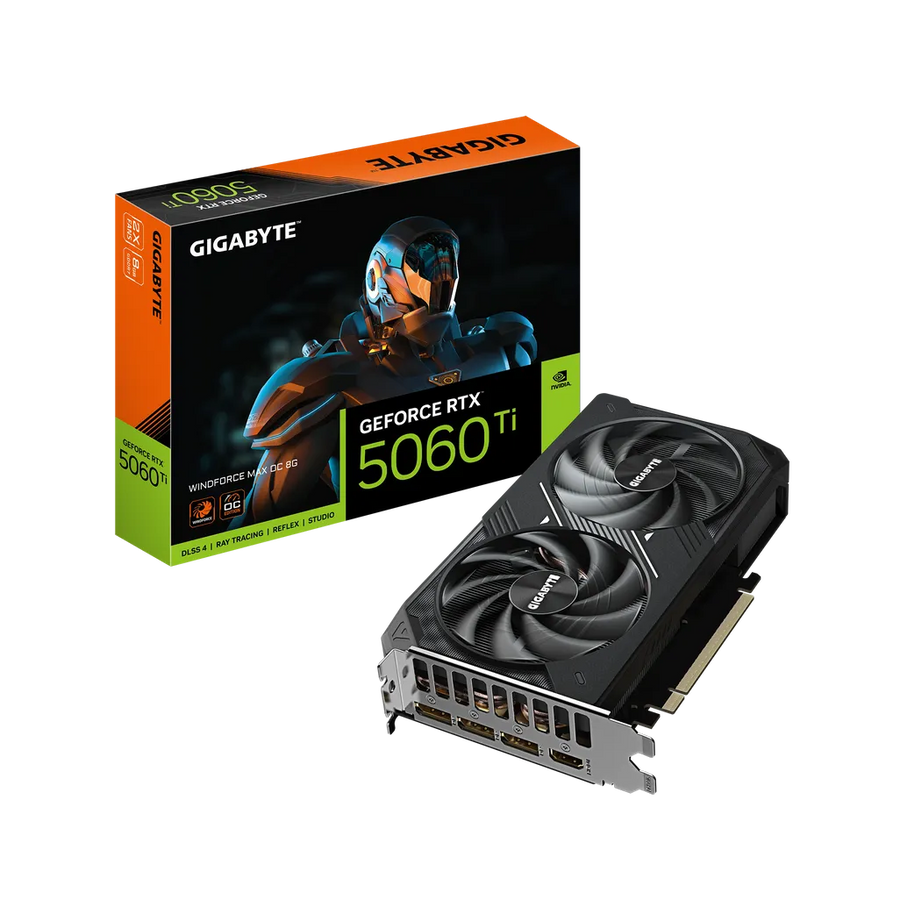

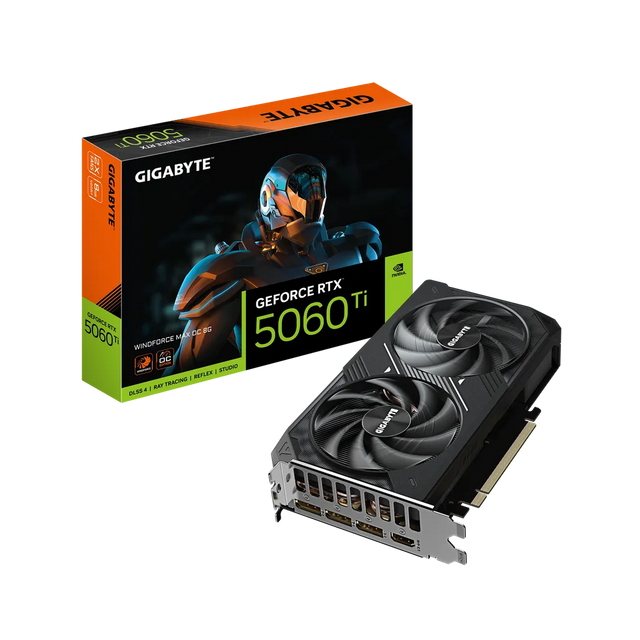

Gigabyte GeForce RTX 5060 Ti Windforce Max OC 8GB GDDR7 Graphics Card PCIe 5.0 2587MHz 128-bit 3x DisplayPort 2.1b HDMI 2.1b

Gigabyte GeForce RTX 5060 Ti Windforce Max OC 8G 8GB GDDR7 Graphics Card

Unlock unparalleled gaming prowess with GIGABYTE's NVIDIA graphics cards. Engineered for peak performance and visual excellence, our GPUs redefine gaming standards. With advanced cooling solutions and cutting-edge technologies, GIGABYTE NVIDIA graphics cards deliver stunning visuals and seamless gameplay experiences, empowering gamers to dominate every virtual battlefield with confidence and precision.

Features:

• Powered by the NVIDIA Blackwell architecture and DLSS 4
• Powered by GeForce RTX™ 5060 Ti
• Integrated with 8GB GDDR7 128bit memory interface
• WINDFORCE cooling system
• Hawk fan
• Server-grade Thermal conductive gel
• Reinforced structure

WINDFORCE COOLING SYSTEM

The WINDFORCE cooling system delivers exceptional thermal performance through a combination of cutting-edge technologies. It features server-grade thermal conductive gel, innovative Hawk fans with alternate spinning, composite copper heat pipes, copper plate, 3D active fans, and screen cooling.

HAWK FAN

The Hawk Fan features a unique blade design inspired by the aerodynamics of an eagle's wing. This design reduces air resistance and noise levels, resulting in up to a 53.6% increase in air pressure and a 12.5% increase in air volume without compromising acoustics.

GRAPHENE NANO LUBRICANT

Graphene nano lubricant can extend the life of sleeve bearing fan by 2.1 times, close to the life of double ball bearing, and is quieter.

SERVER-GRADE THERMAL CONDUCTIVE GEL

To enhance product quality and reliability, we have introduced server-grade thermal conductive gel for cooling critical components such as VRAM and MOSFETs. This highly deformable, non-fluid gel provides optimal contact for uneven surface and effectively resists deformation from transport or long-term use, unlike traditional thermal pads.

COPPER PLATE & COMPOSITE COPPER HEAT PIPE

The copper plate directly contacts the GPU, coupled with the composite copper heat pipes, which quickly transfers the heat of the GPU and VRAM to the heatsink.

SCREEN COOLING

Extended heatsink allows air to pass through, providing better heat dissipation.

Technical Specifications:

Graphics

Graphics Processing Unit: GeForce RTX™ 5060 Ti
Core Clock: 2587 MHz (Reference Card: 2572 MHz)
CUDA® Cores: 4608

Memory

Memory Size: 8 GB
Memory Type: GDDR7
Memory Speed: 28 Gbps
Memory Bus: 128-Bit

Interface

Card Bus: PCI-E 5.0
PCB Form: ATX

Graphics Technologies

DirectX Support: DirectX 12 API
OpenGL Support: 4.6
Maximum Digital Resolution: 7680 × 4320
Multi-View Support: 4 Displays

Connectivity

Video Outputs

• 3 × DisplayPort 2.1b
• 1 × HDMI 2.1b

Power

Recommended Power Supply: 650 W

Power Connectors

• 1 × 8-Pin

Physical

Card Dimensions (L × W × H): 208 × 120 × 40 mm

What's in the Box:

• Quick Guide
