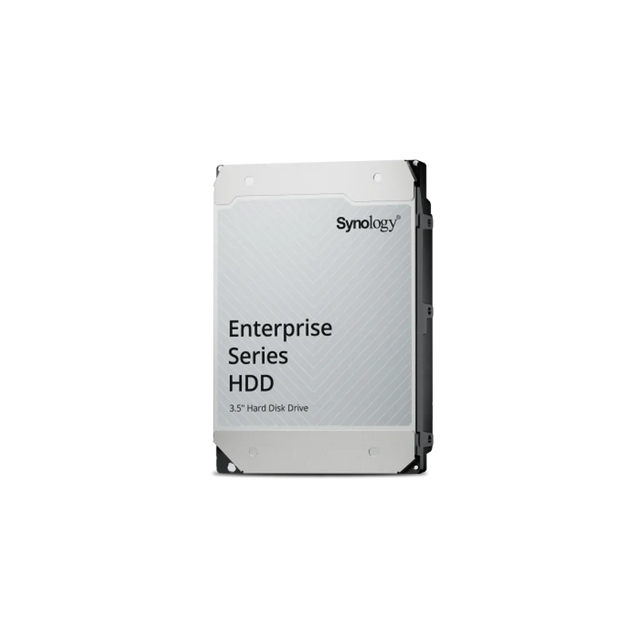

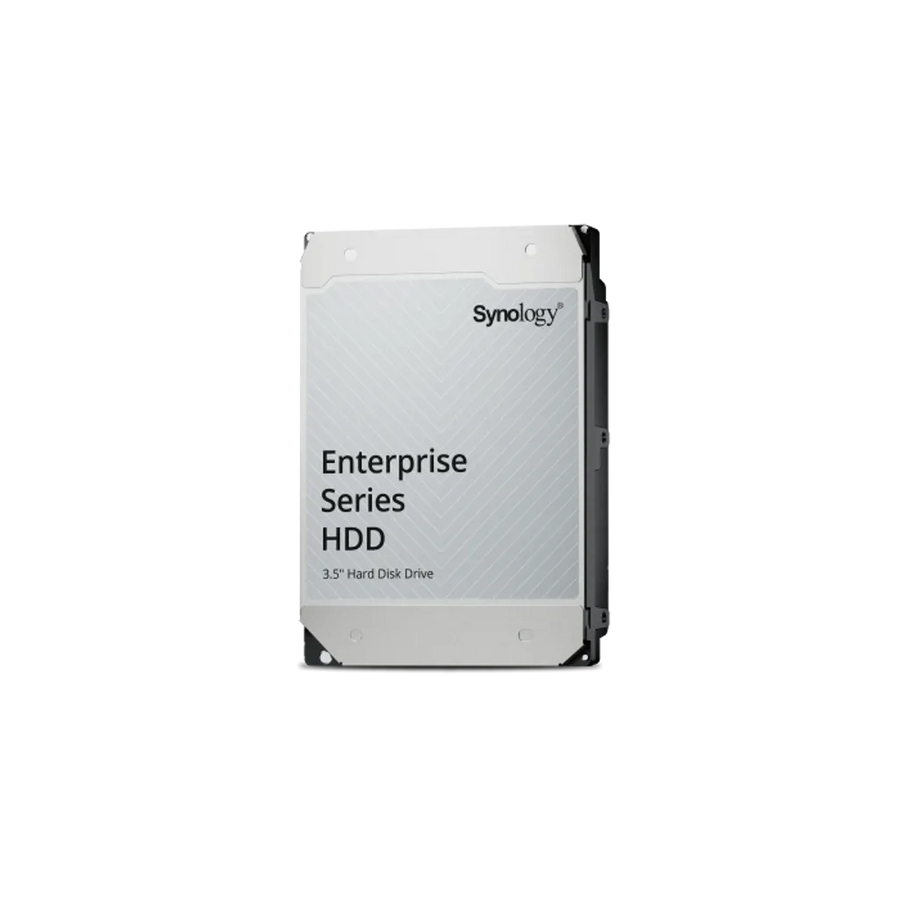

Synology HAT5300 24TB 3.5-inch SATA NAS Hard Drive 7200 RPM 5-Year Warranty

Synology 24TB 3.5-inch SATA III Internal Hard Drive

Enterprise storage drives for Synology systems

Synology HAT5300 series HDDs offer class-leading performance thanks to tight integration with DSM and Synology hardware. With over 500,000 hours of in-house validation testing and backed by Synology’s 5-year limited warranty, the HAT5300 series bring unmatched reliability to Synology deployments.

Consistent performance scaling

Through testing and optimizations, HAT5300 series HDDs has been tuned to deliver up to 23% higher sustained sequential read performance3 in demanding multi-user environments.

Hard drives designed for Synology

See how Synology hard drives deliver reliability, consistent performance, and simplified system management through deep hardware-software integration.

Rigorous validation

Over 500,000 hours of stress testing with Synology devices ensure that HAT5300 series drives can withstand even the most demanding enterprise environments and deliver highly reliable performance.

Durability for 24/7 environments

With an MTBF rating of up to 2.5 million hours, the HAT5300 series HDD supports a workload of 550 TB per year and persistent write cache technology to minimize data corruption in the event of sudden power loss.

One-click firmware upgrades

Automatic firmware update notifications and one-click installation through DSM minimize maintenance workload and reduce the chance of oversights.

Accelerated RAID recovery

Compared to similar-class drives from other brands, Synology hard drives deliver up to 27% quicker drive repair speeds within RAID arrays.

Technical Specifications:

General
Capacity: 24 TB
Form Factor: 3.5"
Interface: SATA 6 Gb/s

Performance
Rotational Speed: 7,200 rpm
Maximum Sustained Data Transfer Speed (Typ.): 309 MB/s

Reliability
Warranty: 5 Years
Notes: The warranty period starts from the purchase date as stated on your purchase receipt.

Power Consumption
Active Idle (Typ.): 4.35 W
Random Read / Write (4KB Q1) (Typ.): 8.11 W
Notes: Power consumption may differ according to configurations and platforms.

Temperature
Operating: 5°C to 60°C (41°F to 140°F)
Non-operating: -40°C to 70°C (-40°F to 158°F)
