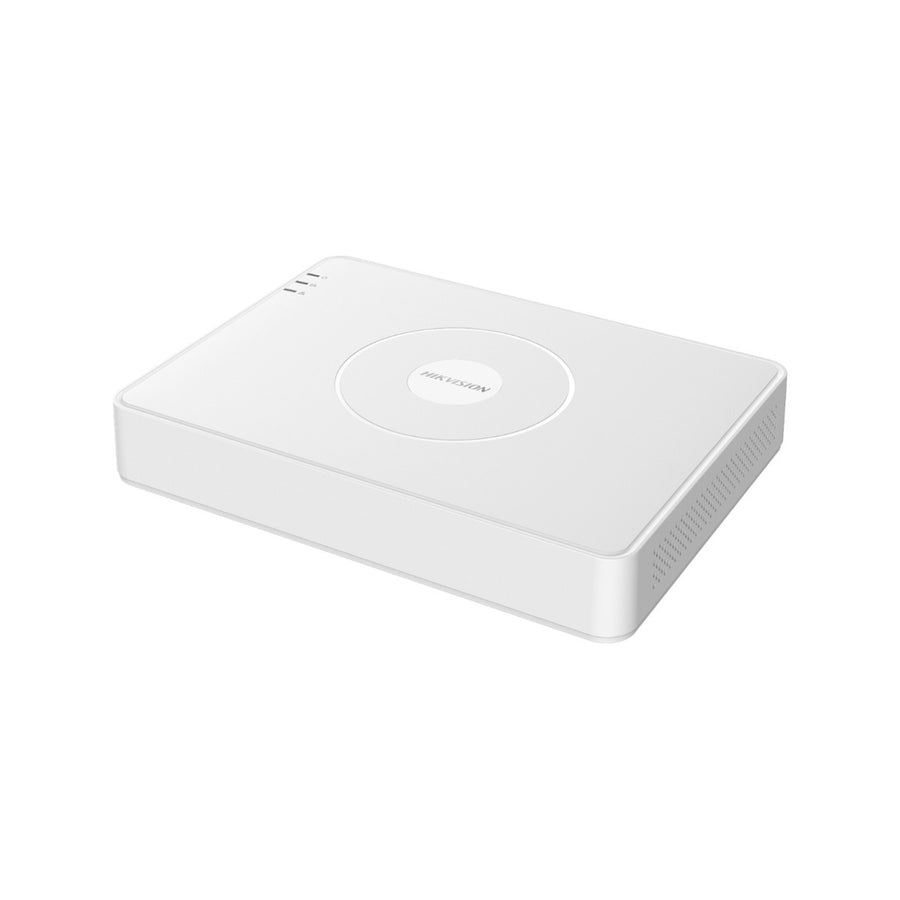

Hikvision 16-Channel Acusense Mini Turbo DVR

Hikvision 16-channel 1080P Lite Mini 1U H.265 DVR

The Hikvision is a 16-channel DVR designed for reliable and efficient video surveillance in a compact 1U chassis. It supports multiple video formats including HDTVI, AHD, CVI, CVBS, and IP, offering flexibility with up to 16 analog channels plus 2 IP channels, or up to 18 IP channels at resolutions up to 5 MP.

Features:

• Deep learning based human and vehicle targets classification of Motion Detection 2.0
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/AHD/CVI/CVBS/IP video input
• Audio via coaxial cable
• Up to 18-ch IP camera input (up to 5 MP)
• Encoding ability up to 1080p lite @ 15 fps
• Support all channels HDTVI two-way audio technology

Equipped with deep learning–based Motion Detection 2.0, it accurately distinguishes between human and vehicle movement, significantly reducing false alarms triggered by environmental factors.

The DVR uses advanced compression technologies such as H.265 Pro+, H.265 Pro, H.265, and H.264, ensuring optimized storage efficiency without compromising video quality. Recording supports up to 1080p Lite resolution at 15 fps, with synchronized playback across all 16 channels.

For output, the provides simultaneous HDMI and VGA connections with resolutions up to 1920 × 1080 at 60 Hz. Audio features include one RCA input (plus 16 via coaxial) and one RCA output, with support for one-way audio through the first channel.

Networking capabilities include a 96 Mbps total bandwidth, support for up to 128 remote connections, and compatibility with a wide range of protocols. Storage is handled via a single SATA interface supporting up to 10 TB per disk, alongside two USB 2.0 ports for backup and export.

Powered by 12 VDC with maximum consumption under 7 W (without HDD), the DVR is efficient and reliable. It operates in temperatures from –10 °C to 55 °C, with dimensions of 285 × 210 × 48 mm and a weight of less than 1.8 kg.

Technical Specifications:

Motion Detection 2.0

Human/Vehicle Analysis: Deep learning-based motion detection 2.0 is enabled by default for all analog channels. It can classify humans and vehicles, significantly reducing false alarms caused by objects such as leaves and lights. Quick search by object or event type is supported.

Video and Audio

• IP Video Input: 2-ch (up to 18-ch), up to 5 MP resolution, supports H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input: 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input: 1080p25, 1080p30, 720p25, 720p30
• AHD Input: 1080p25, 1080p30, 720p25, 720p30
• HDCVI Input: 1080p25, 1080p30, 720p25, 720p30
• CVBS Input: PAL/NTSC
• HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Video Output Mode: HDMI/VGA simultaneous output
• Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ), and 16-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback: 16-ch

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution:
• – For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
• – For 720p stream access: 720p/WD1/4CIF/VGA/CIF
• – For SD stream access: WD1/4CIF/VGA/CIF

Frame Rate:
Main stream:

• 1080p stream: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF @15 fps
• 720p stream: 720p/WD1/4CIF/VGA/CIF @15 fps
• SD stream: WD1/4CIF/VGA/CIF @25 fps (P)/30 fps (N)

Sub-stream:

1080p & 720p stream: CIF/QVGA @15 fps

SD stream: CIF/QVGA @25 fps (P)/30 fps (N)

• Video Bitrate: 32 Kbps to 4 Mbps
• Dual-stream: Supported
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Network

• Total Bandwidth: 96 Mbps
• Remote Connection: 128
• Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, UPnP™, HTTPS, ONVIF
• Network Interface: 1 × RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 1 × SATA interface, up to 6 TB capacity per disk
• USB: 2 × USB 2.0

General

• Power Supply: 12 VDC, 2 A
• Power Consumption: ≤ 7 W (without HDD)
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimensions (W × D × H): 285 × 210 × 48 mm (11.2 × 8.3 × 1.9 inch)
• Weight: ≤ 1.8 kg (without HDD, 4.0 lb.)
