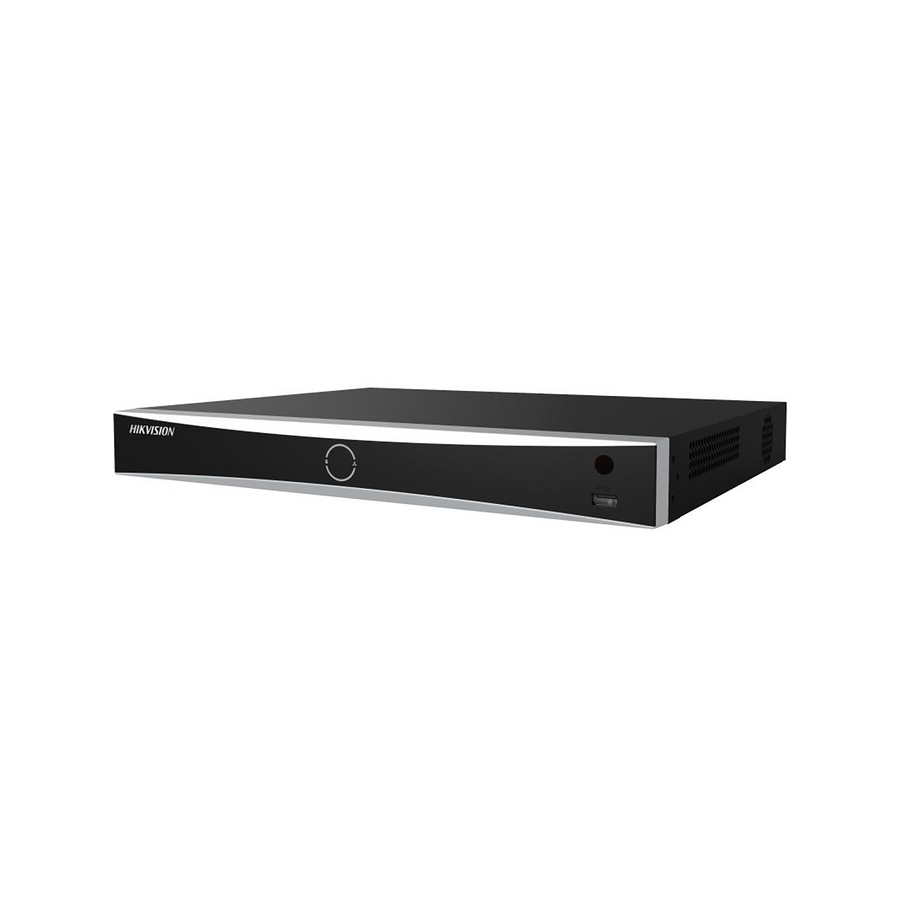

Hikvision 16-Channel Acusense NVR

Hikvision 16-Channel Acusense NVR

Intelligent Analytics

• AI by Device:  Facial recognition, perimeter protection, motion detection 2.0
• AI by Camera : Facial recognition, perimeter protection, throwing objects from building, motion detection2.0, ANPR, VCA

Facial Recognition

• Facial Detection and Analytics Face picture comparison, human face capture, face picture search
• Face Picture Library: Up to 16 face picture libraries, with up to 20,000 face pictures in total (each picture ≤ 4 MB, total capacity ≤ 1 GB)
• Facial Detection and Analytics Performance : 1-ch, 8 MP
• Face Picture Comparison: 4-ch

Motion Detection 2.0

• By Device: All channels, 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
• By Camera: All channel

Perimeter Protection

• By Device:2-ch, 4 MP (HD network camera, H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
• By Camera: All channels

Video and Audio

• IP Video Input : 16-ch
• Incoming Bandwidth : 160 Mbps
• Outgoing Bandwidth : 160 Mbps
• HDMI Output : 1-ch, 4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 ×1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
• VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Video Output Mode: HDMI/VGA independent output
• CVBS Output N/A
• Audio Output 1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
• Two-Way Audio 1-ch, RCA (Linear, 1 KΩ)

Decoding

• Decoding Format : H.265/H.265+/H.264+/H.264
• Recording Resolution : 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
• Synchronous playback : 16-ch
• Decoding Capability : AI on: 1-ch@12 MP (30 fps)/2-ch@8 MP (30 fps)/4-ch@4 MP (30 fps)/8-ch@1080p (30 fps)AI off: 2-ch@12 MP (30 fps)/3-ch@8 MP (30 fps)/6-ch@4 MP (30 fps)/12-ch@1080p (30 fps)
• Stream Type Video, Video & Audio
• Audio Compression : G.711ulaw/G.711alaw/G.722/G.726/AAC

Network

• Remote Connection : 128
• API : ONVIF (profile S/G); SDK; ISAPI
• Compatible Browser : IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
• Network Protocol : TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnPTM, HTTP, HTTPS
• Network Interface : 1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface

PoE

• Interface : 16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
• Power : ≤ 200 W
• Standard IEEE 802.3af/at

Auxiliary Interface

• SATA : 2 SATA interfaces
• Capacity Up to : 10 TB capacity for each HDD
• USB Interface : Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0
• Alarm : In/Out 4/1

GUI Language : English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French,
Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish
Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese,
Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian,
Kyrgyz , Brazilian Portuguese, Indonesian

• Power Supply : 100 to 240 VAC, 50 to 60 Hz
• Consumption : ≤ 15 W (without HDD and PoE off)
• Working Temperature : -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity : 10% to 90%
• Dimension (W × D × H) : 385 mm × 315 mm × 52 mm (15.2″”× 12.4″” × 2.0″”)
• Weight : ≤ 3 kg (without HDD, 6.6 lb.)

Certification

• FCC Part : 15 Subpart B, ANSI C63.4-2014 CE EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
• Obtained Certification : CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS
