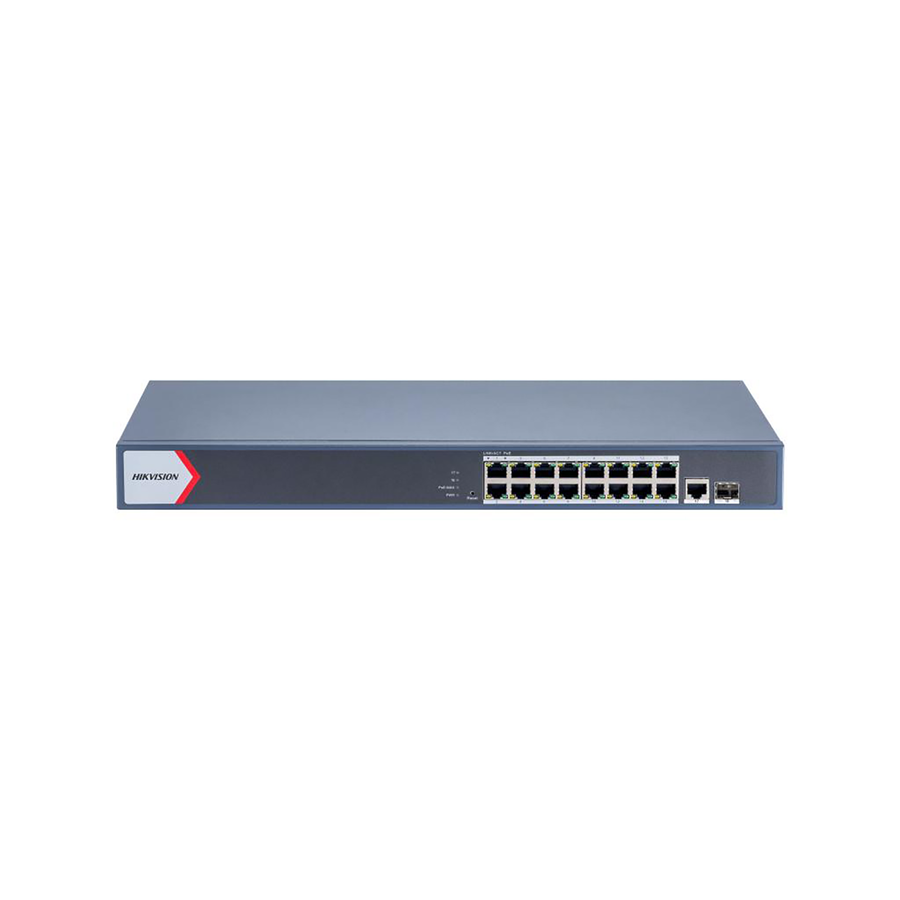

Hikvision 16 Port Gigabit Smart Managed POE Switch

Hikvision 16 Port Gigabit Smart Managed POE Switch

Hikvision 16-port GbE PoE Smart Managed Switch with 1x GbE and 1x SFP Port DS-3E1518P-EI

Smart managed switches are developed by Hikvision, featuring easy management and maintenance. You can easily deploy, monitor, and expand your video security system anytime and anywhere with our software platforms. You can view the network topology, monitor the health of the network, and receive device alarms in real time, which greatly reduces the cost of network operation and maintenance.

Features

• Unified cloud management for security systems
• Network topology at your fingertips
• Remote troubleshooting
• Visualized topology management
• Up to 300 m long-range PoE transmission

Technical Specification

• Ports: 16x Gigabit PoE port, 1x Gigabit RJ45 port, 1x Gigabit fiber optical port
• MAC Address Table: 8 K
• Switching Capacity: 56 Gbps
• Packet Forwarding Rate: 41.66 Mpps
• Internal Cache: 4.1 Mbits
• PoE Standard: IEEE 802.3af,IEEE 802.3at
• PoE Power 8-Pin: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port: Ports 1 to 16
• Max. Port Power: 30 W
• PoE Power Budget: 230 W
• Installation Mode: Rack (equipped with mounting ears)
• Max. Power Consumption: 250 W
• Power Consumption in Idle: 20 W
• Surge Protection: 6 KV
