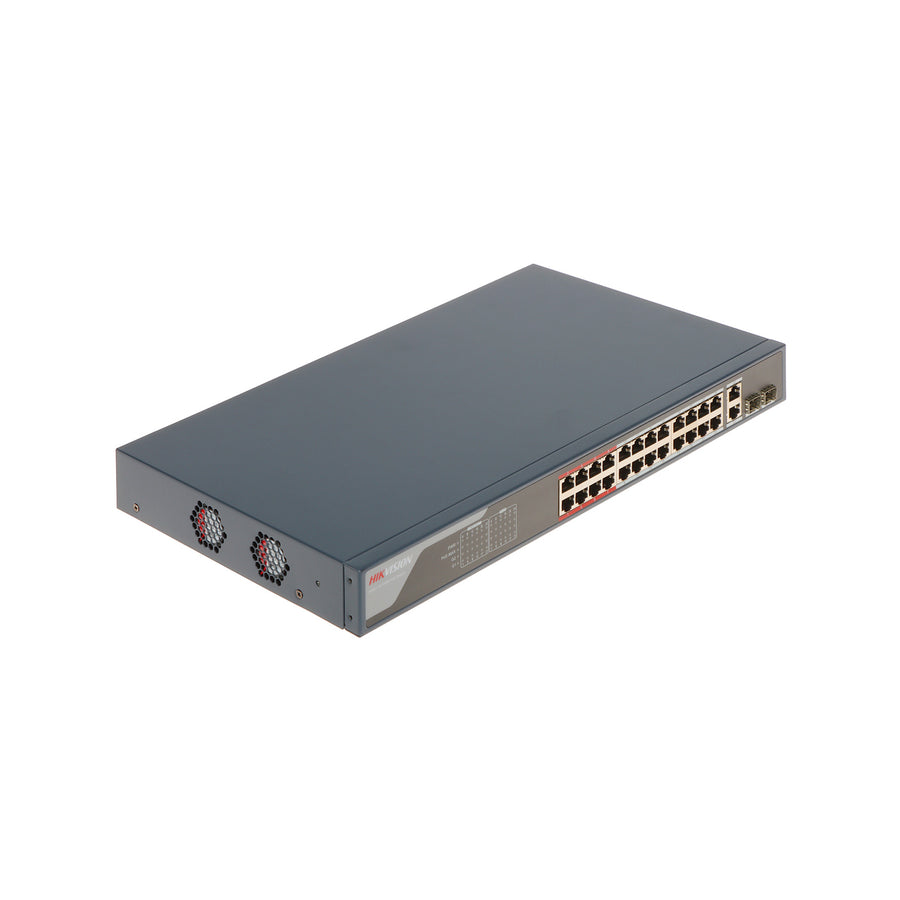

Hikvision 24 Port Smart POE Switch

Hikvision 24-port Fast Ethernet Smart POE Switch

Features:

• 24 × 10/100M PoE ports, 2 × Gigabit combos.
• Total PoE Power Budget 370 W
• Support 802.1Q VLAN
• Support PoE watchdog to detect and restart the cameras that do not respond
• Support STP/RSTP Loop prevention
• Support cable detection to locate failure
• Up to 300 m Long Range PoE Transmission
• 6 kV Surge Protection

Technical Specifications:

Shell
Material: Metal
Net Weight: 2.83 kg (6.24 lb)
Gross Weight: 3.8 kg (8.38 lb)
Dimensions (W × H × D): 440 × 44 × 220.8 mm (17.32 × 1.73 × 8.69 in)
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 85°C (-40°F to 185°F)
Operating/Relative Humidity: 5%–95% (non-condensing)
Power Supply: 100–240 VAC, 50/60 Hz, Max. 6.3 A
Installation Mode: Rack (with mounting ears)
Max Power Consumption: 400 W
Idle Power: 30 W
Surge Protection: 6 kV

Network Parameters
Ports: 24 × 10/100 Mbps PoE, 2 × Gigabit Combo
MAC Address Table: 16 K
Switching Capacity: 14.8 Gbps (whole-device), 8.8 Gbps (port)
Packet Forwarding Rate: 11.01 Mpps (whole-device), 6.55 Mpps (port)
Internal Cache: 4 Mbits

PoE Power Supply
Standard: IEEE 802.3af, IEEE 802.3at
Power Pin: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Ports: 1–24
Max Port Power: 30 W
PoE Power Budget: 370 W

Software Functions
Long Range: Ports 1–24, up to 300 m (varies by camera and cable)
VIP Port: Ports 1–8, prioritised data forwarding
Port Isolation: Ports 1–24, improved network security
PoE Watchdog: Auto detect and restart unresponsive cameras
Link Aggregation: Static aggregation, 1 group supported
Loop Prevention: Supports 802.1D STP, 802.1w RSTP (disabled by default)
VLAN: Supports 802.1Q, VLAN ID 1–4094, Trunk/Access mode, up to 4094 VLANs

HPP (Hik-Partner Pro)
Supports one-click activation, remote management, port rate and power display, topology and alarm monitoring, port restart, long-range mode, and remote firmware upgrade

System Maintenance
Web-based management, DHCP Client (enabled by default), Super IP (10.180.190.200), Hik-Central Pro and Hik-Partner Pro management, cable detection, LLDP support, port mirroring

Approvals
EMC: CE-EMC (EN 55032:2015+A11:2020, etc.), ICES-003:2020, RCM (AS/NZS CISPR 32:2015)
Safety: CB, CE-LVD (EN 62368-1:2014+A11:2017)
Chemistry: CE-RoHS (2011/65/EU), WEEE (2012/19/EU), REACH (EC No.1907/2006)
