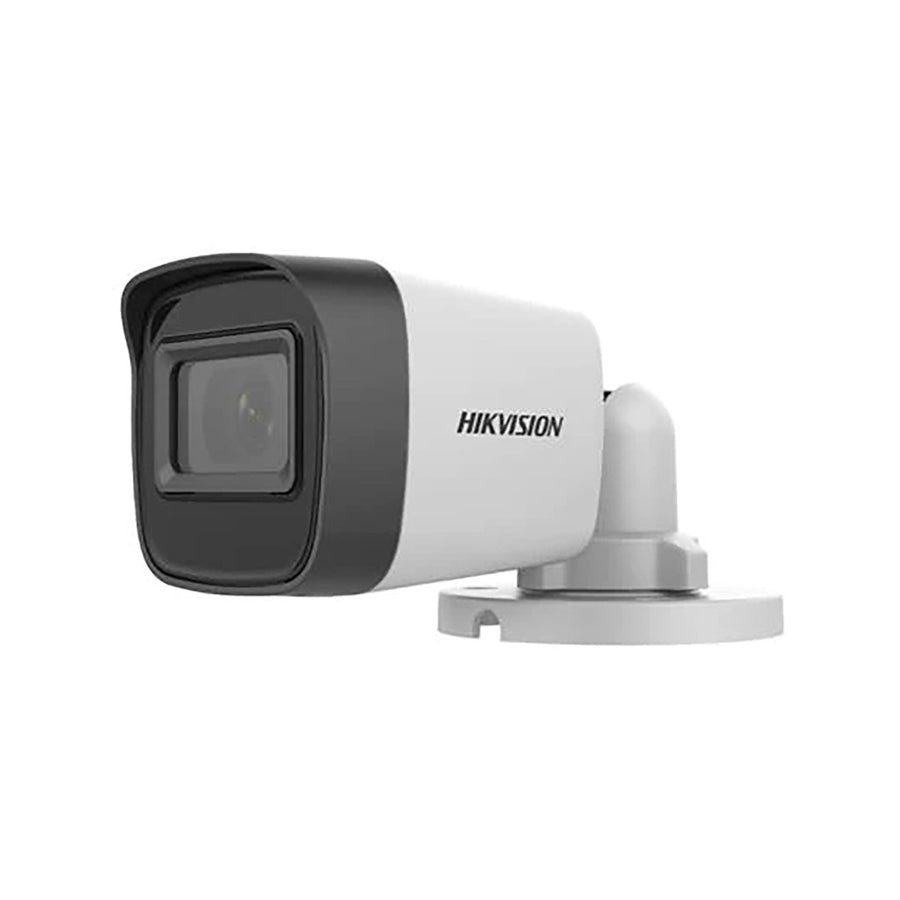

Hikvision 2MP 2.8mm 20m-IR Bullet Analog Camera

Hikvision 2MP 2.8mm 20m-IR Bullet Analog Camera

Camera

• Image Sensor 2 MP CMOS
• Signal System PAL/NTSC
• Max. Resolution 1920 (H) × 1080 (V)
• Min. Illumination 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
• Day & Night IR Cut Filter
• Angle Adjustment Pan: 0° to 360°, Tilt: 0° to 90°, Rotation: 0° to 360°

Lens

• Lens Type 2.8 mm Fixed Lens
• Focal Length & FOV 2.8 mm, horizontal FOV: 96.5°, vertical FOV: 48.9°, diagonal FOV: 120.5°
• Lens Mount M12

Illuminator

• Supplement Light Range Up to 20 m


• Frame Rate TVI: 1080p@25fps/30fpsAHD: 1080p@25fps/30fpsCVI: 1080p@25fps/30fpsCVBS: PAL/NTSC
• Wide Dynamic Range (WDR) Digital WDR
• Image Parameters Switch STD/HIGH-SAT
• Day/Night Mode Auto/Color/BW (Black and White)
• White Balance Auto
• Image Enhancement DWDR, BLC, Global
• Noise Reduction 2D DNR
• Image Settings Brightness, Mirror, Smart IR, Sharpness, AGC

Interface

• Video Output Switchable TVI/AHD/CVI/CVBS

General

• Language English
• Operating Condition -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Material Plastic
• Communication HIKVISION-C
• Dimension 138.8 mm × 60.9 mm × 57.9 mm (5.465″ × 2.389″ 2.278″)
• Weight Approx. 145 g (0.32 lb.)
• Power 12 VDC ± 25%, Max. 3.3 W

Approval

• Protection IP67
