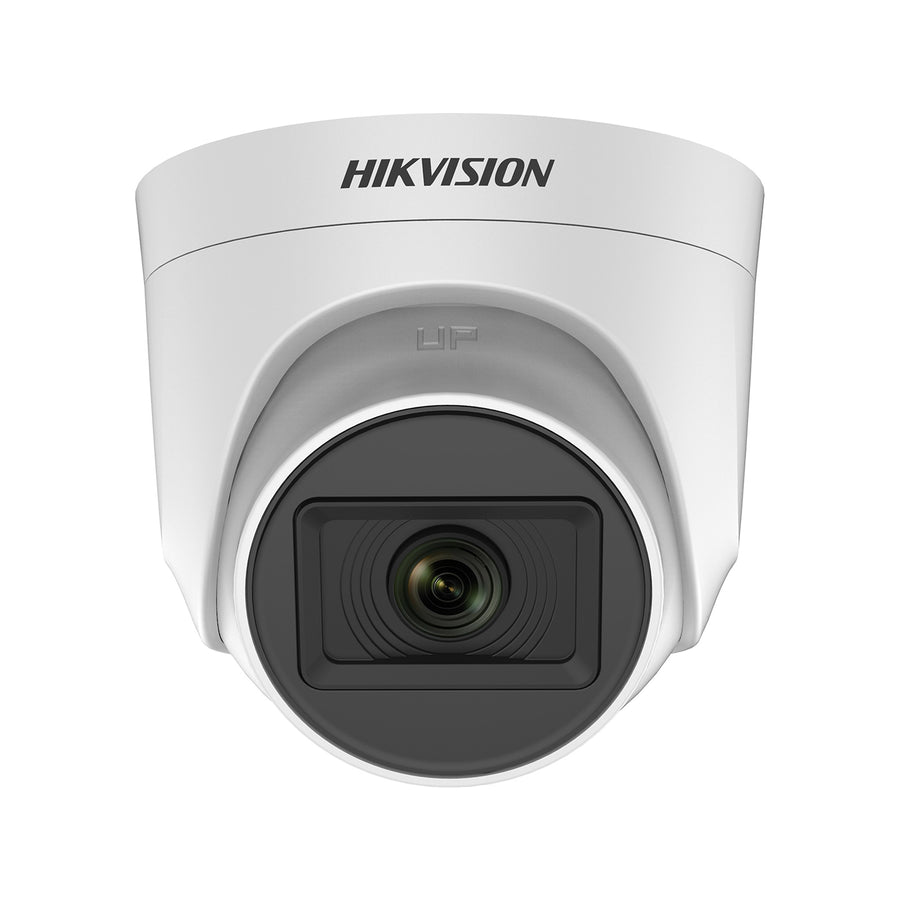

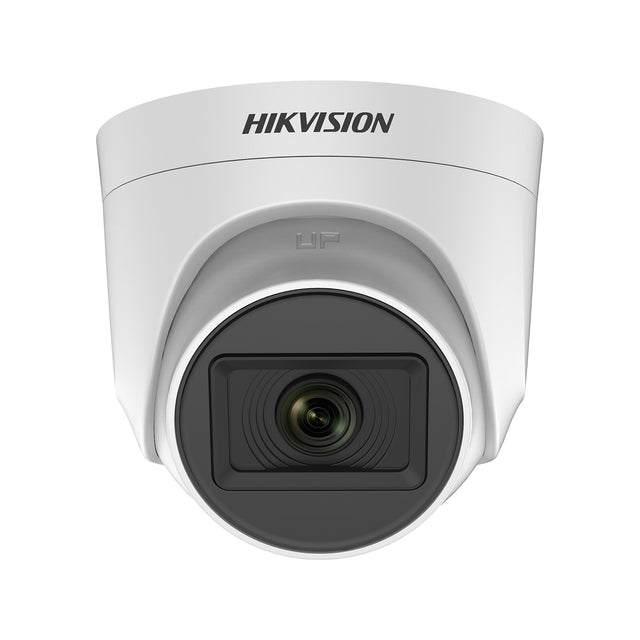

Hikvision 2MP 3.6mm 20m-IR Turret Analogue Camera

Hikvision 2MP 3.6mm 20m-IR Turret Analogue Camera

Camera

• Image Sensor : 2 MP CMOS
• Signal System : PAL/NTSC
• Resolution : 1920 (H) × 1080 (V)
• Frame Rate
  • TVI: 1080p@25fps/30fps
  • AHD: 1080p@25fps/30fps
  • CVI: 1080p@25fps/30fps
  • CVBS: PAL/NTSC
• Min. Illumination : 0.02 Lux @ (F1.2, AGC ON), 0 Lux with IR
• Shutter Time PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s
• Lens : 3.6 mm Fixed Lens
• Field of View : 3.6 mm, horizontal FOV: 81°, vertical FOV: 42°, diagonal FOV: 100°
• Lens Mount : M12
• Day & Night : ICR
• WDR (Wide Dynamic Range) : Digital WDR
• Angle Adjustment : Pan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°

Menu

• Image Mode : STD/HIGH-SAT
• AGC : Yes
• Day/Night Mode : Auto/Color/BW (Black and White)
• White Balance : Auto
• AE (Auto Exposure) Mode : DWDR, BLC, Global
• Noise Reduction : 2D DNR
• Language : English
• Function Brightness, Mirror, Smart IR, Sharpness

Interface

• Video Output : Switchable TVI/AHD/CVI/CVBS

General

• Operating Conditions : -40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
• Power Supply : 12 VDC ± 25%
• Consumption : Max. 3.3 W
• Material : Plastic
• IR Range : Up to 20 m
• Communication : HIKVISION-C
• Dimension : Φ 84.6 mm × 78.9 mm (Φ 3.33″ × 3.11″)
• Weight : Approx. 195g (0.43 lb.)
