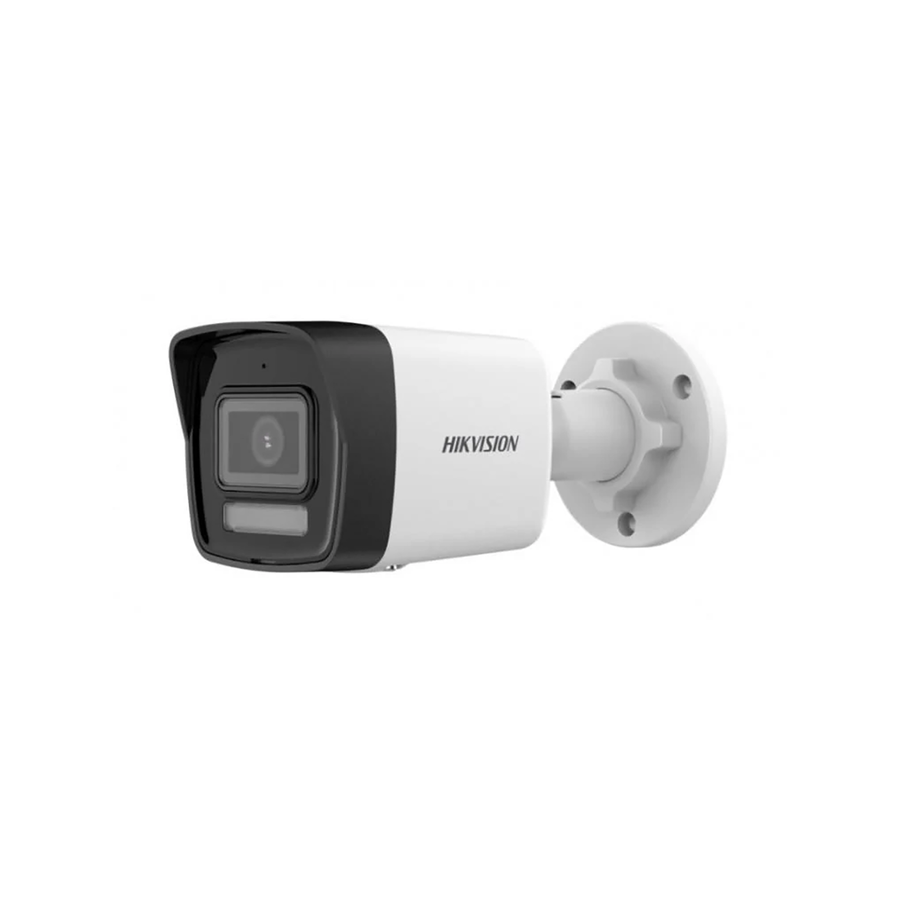

Hikvision 2MP Fixed Mini Bullet Network Camera

Hikvision 2MP 2.8mm Hybrid Light Fixed Mini Bullet Network Camera

Features

• 2MP Resolution
• Hybrid Light 30m IR Illumination
• 2.8mm Fixed Lens
• IP67
• 1/3" Progressive CMOS
• ICR
• 1920 × 1080: 25fps(P)/30fps(N)
• H.265+/H.265/H.264+&H.264
• DWDR, 3D DNR, BLC
• IR or white light range: up to 30m
• Built-in microphone
• DC12V & PoE
• *Power supply is not included
• Support mobile monitoring via Hik-Connect

Technical Specifications:

Camera

Image Sensor: 1/2.9" Progressive Scan CMOS

Max. Resolution : 1920 × 1080

Shutter Time : 1/3 s to 1/100,000 s

Min. Illumination : Color: 0.005 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR

Day & Night : IR cut filter

Angle Adjustment : Pan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°

Lens

Lens Type Fixed focal lens, 2.8mm

Focal Length & FOV : 2.8 mm, horizontal FOV 103°, vertical FOV 56°, diagonal FOV 121°

4 mm, horizontal FOV 83°, vertical FOV 44°, diagonal FOV 99°

Lens Mount: M12

Iris Type: Fixed

Aperture: F1.6

DORI

DORI : 2.8 mm, D: 45 m, O: 18 m, R: 9 m, I: 4 m

Illuminator

Supplement Light Type: IR,White Light

Supplement Light Range: Up to 30 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

Video

Main Stream

50 Hz: 25 fps (1920 × 1080, 1280 × 720)

60 Hz: 30 fps (1920 × 1080, 1280 × 720)

Sub-Stream

50 Hz: 25 fps (640 × 480, 640 × 360)

60 Hz: 30 fps (640 × 480, 640 × 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264,

Sub-stream: H.265/H.264/MJPEG

Video Bit Rate : 32 Kbps to 8 Mbps

H.264 Type : Baseline Profile,Main Profile,High Profile

H.265 Type : Main Profile

Bit Rate Control : CBR,VBR

Region of Interest (ROI): 1 fixed region for main stream

Audio

Audio Type : Mono sound

Environment Noise Filtering : Yes

Audio Sampling Rate : 8 kHz/16 kHz

Audio Compression : G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC

Audio Bit Rate

• 64 Kbps (G.711 ulaw)/64 Kbps (G.711 alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to
• 160 Kbps (MP2L2)/16 to 64 Kbps (AAC-LC)

Network

Security : Password protection, complicated password, watermark, basic and digest
authentication for HTTP, WSSE and digest authentication for Open Network Video
Interface, security audit log, host authentication (MAC address)

Simultaneous Live View : Up to 6 channels

API : Open Network Video Interface (Profile S, Profile T),ISAPI,SDK

Protocols : TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IGMP, IPv6, UDP, QoS, FTP,
SMTP

User/Host

Up to 32 users

3 user levels: administrator, operator, and user

Client :  iVMS-4200,Hik-Connect

Web Browser

Plug-in required live view: IE 10, IE 11,

Local service: Chrome 57.0+, Firefox 52.0+


Wide Dynamic Range (WDR) : Digital WDR

SNR : ≥ 52 dB

Day/Night Switch : Day,Night,Auto,Schedule

Image Enhancement : BLC,HLC,3D DNR

Image Settings : Rotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable
by client software or web browser

Privacy Mask : 4 programmable polygon privacy masks

Interface

Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port

Built-in Microphone : Yes

Event

Basic Event : Motion detection,video tampering alarm,exception

Linkage : Upload to FTP, send email, notify surveillance center, trigger capture

General

Power

• 12 VDC ± 25%, 0.4 A, max. 5 W,Ø 5.5 mm coaxial power plug,reverse polarity
  protection,
• PoE: IEEE 802.3af, Class 3, max: 6.5 W

Material : Metal & Plastic

Dimension : 170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Package Dimension : 216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")

Weight : Approx. 265 g (0.6 lb.)

With Package Weight : Approx. 495 g (1.1 lb.)

Storage Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Startup and Operating Conditions : -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)

Language : English, Ukrainian

General Function : Heartbeat,anti-banding,mirror,password protection,password reset via email
