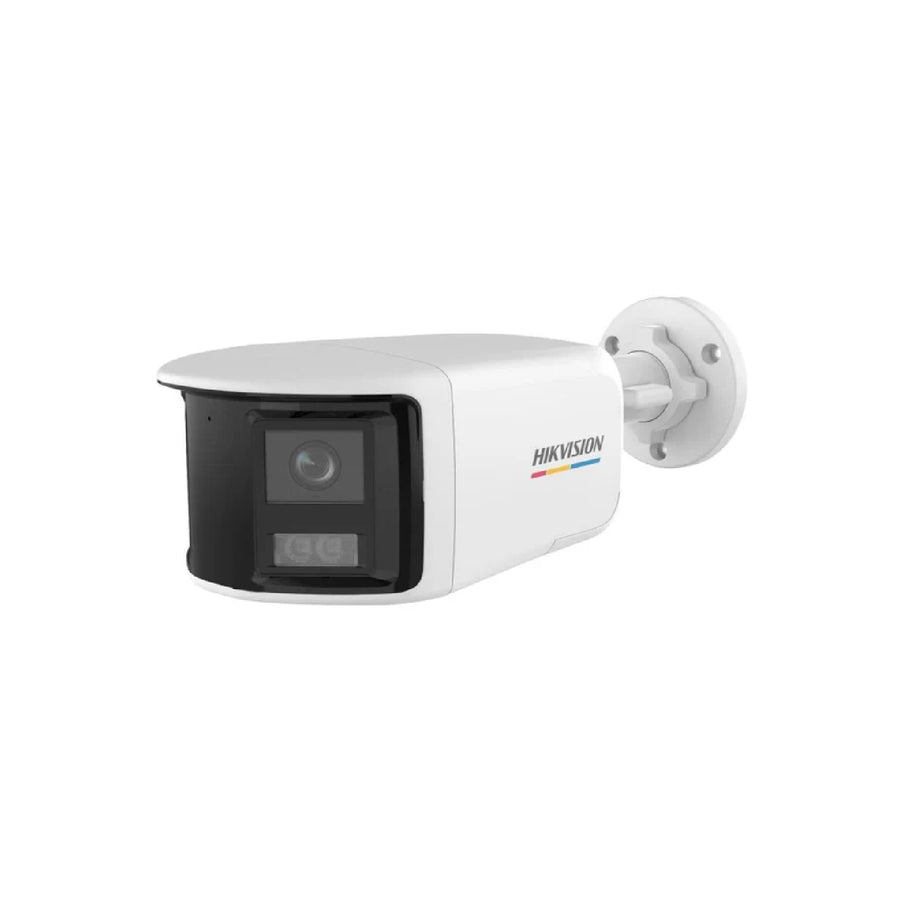

Hikvision 3K 5MP Colorvu Dual-Lens Fixed Bullet Camera

Hikvision 3K ColorVu Dual-Lens Fixed Bullet Camera

The camera features a 3K CMOS sensor with a maximum resolution of 3328 × 1504 and supports shutter speeds from 1/20 s to 1/50,000 s, including a slow shutter mode up to 16×. It delivers excellent low-light performance with a minimum illumination of 0.0005 Lux (F1.0, AGC ON) and 0 Lux when using white light.

Features:

• Dual-lens design, built-in stitching algorithm, presenting a 180-degree image
• High quality imaging with 3K, 3328 × 1504 resolution
• 24/7 color imaging with F1.0 aperture
• Smart-Hybrid light, optimize your security with flexible lighting options
• Clear imaging against strong back light due to 130 dB true WDR technology
• 3D DNR technology delivers clean and sharp images
• Up to 40 m white light and 40 m IR distance for bright night imaging
• Built-in mic, high quality audio with audio over coaxial cable
• Water and dust resistant (IP67)

Equipped with a 2.8 mm fixed focal lens, the camera provides a wide field of view (180° horizontal, 75° vertical). Its pan, tilt, and rotation ranges allow flexible positioning (Pan: 0°–360°, Tilt: 0°–180°, Rotate: 0°–360°). IR and white-light illumination support up to 40 m, with smart supplementary lighting for optimal visibility in various conditions.

The camera includes advanced image processing features such as WDR ≥130 dB, 3D DNR noise reduction, BLC/HLC, and multiple image parameter settings (brightness, contrast, sharpness, Smart IR, Anti-Banding, AGC). Day/Night mode and auto/manual white balance enhance clarity in varying lighting. Privacy is protected with four programmable masks.

For connectivity, it provides one HD analog output and a built-in microphone. Motion detection supports four programmable areas. The device operates under extreme conditions (-40°C to 60°C, up to 90% non-condensing humidity) and has an IP67-rated weatherproof metal front cover and plastic main body.

Power is 12 VDC ±25% with a maximum consumption of 7.2 W, with guidance on adapter requirements for high-impedance cables. The camera uses HIKVISION-C communication protocol and weighs approximately 630 g, with dimensions of 234.46 × 103.58 × 76.01 mm.

Technical Specifications:

Camera

Max. Resolution: 3328 × 1504

Shutter Time: 1/20 s to 1/50,000 s

Image Sensor: 3K CMOS

Slow Shutter: Max. 16×

Min. Illumination: 0.0005 Lux @ F1.0, AGC ON; 0 Lux with white light

Angle Adjustment: Pan 0°–360°, Tilt 0°–180°, Rotate 0°–360°

Lens

Type: 2.8 mm fixed focal lens

Focal Length & FOV: 2.8 mm, Horizontal 180°, Vertical 75°

Mount: M12

Illuminator

Supplement Light Range: IR up to 40 m, White Light up to 40 m

Smart Supplement Light: Yes


Frame Rate: 3K @20 dual

Privacy Mask: 4 programmable

WDR: ≥130 dB

Image Parameters Switch: STD / HIGH-SAT / HIGHLIGHT

Day/Night Mode: Auto

White Balance: Auto / Manual

Image Enhancement: WDR, BLC, HLC, Global

Noise Reduction: 3D DNR

Image Settings: Brightness, Contrast, Smart IR, Sharpness, Anti-Banding, AGC

Interface

Video Output: 1 HD analog output

Built-in Microphone: Yes

Event

Motion Detection: 4 programmable areas

General

Power: 12 VDC ±25%, max. 7.2 W (recommend one adapter per camera; 15 VDC required for high-impedance cable like 18 m extension)

Language: English

Operating Condition: -40 °C to 60 °C, Humidity ≤ 90% (non-condensing)

Material: Front cover Metal, Main body Plastic

Communication: HIKVISION-C

Dimensions: 234.46 × 103.58 × 76.01 mm (9.23" × 4.08" × 2.99")

Weight: Approx. 630 g (1.39 lb.)

Protection: IP67
