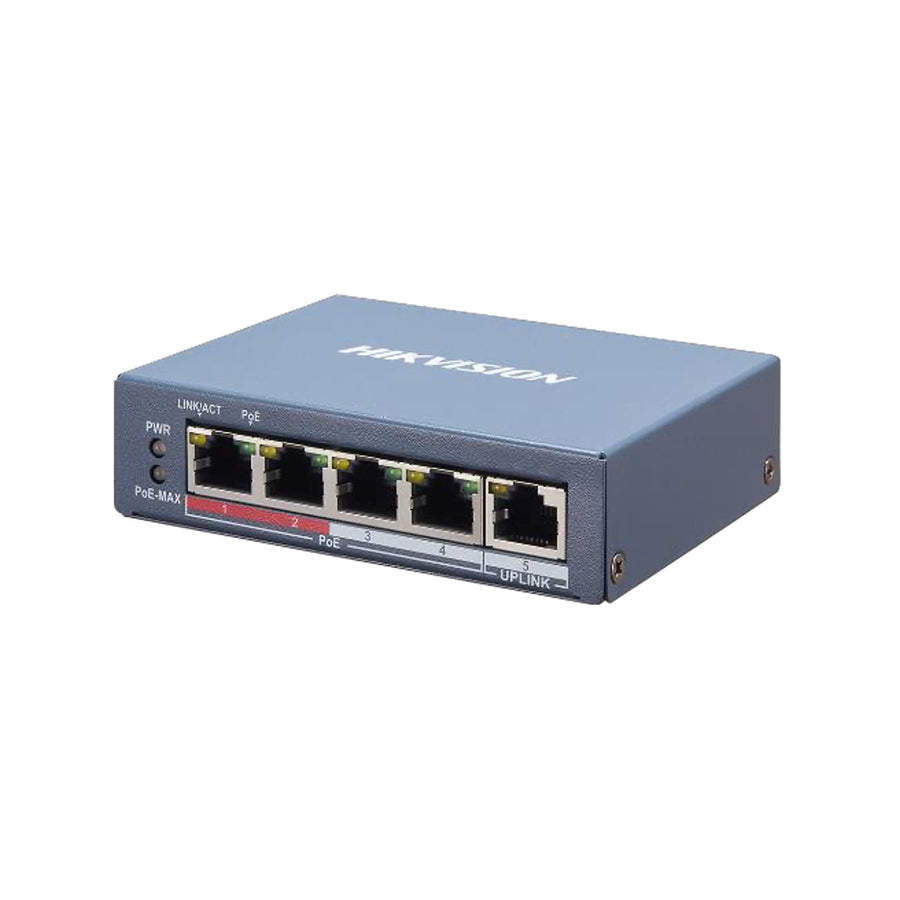

Hikvision 4 Port Smart Managed Switch

Hikvision 4 Port Smart Managed Switch

• Port number : 4 × 100 Mbps PoE RJ45 ports, and 1 × 100 Mbps network RJ45 port.
• Port type : RJ45 port, full duplex, MDI/MDI-X adaptive
• Standard : IEEE 802.3, IEEE 802.3u, and IEEE 802.3x
• Forwarding mode : Store-and-forward switching
• Working mode : Standard mode (default), Extend mode
• High priority ports : Ports 1 and 2
• Ports for long-distance transmission : Ports 1 to 4
• MAC address table : 2 K
• Switching capacity : 1 Gbps
• Packet forwarding rate : 0.744 Mpps
• Internal cache : 768 Kbits

PoE Power Supply

• PoE power pin : Ports 1 to 4: Ethernet cables 1/2/3/6 and 4/5/7/8 provide power supply simultaneously.
• PoE port : Ports 1 to 4
• Max. port power : 30 W
• PoE power budget : 60 W

Software Function

• Device maintenance : Support remote upgrade, recovering default parameters, viewing logs, configuring
• basic network parameters.
• Typology display : Support typology display.
• Port configuration : Support rate, flow control, and switch configuration
• PoE function : IEEE 802.3at/af device provides power supply.
• Device status alarm : Support the device status, PoE_MAX and PoE status alarm.
• Network management : Support client management.
• Port statistics : Support port transmitting/receiving real-time rate statistics, 7-day transmitting/receiving
• peak rate statistics

General

• Shell : Metal material, fan-free design
• Net Weight : 0.22 kg (0.49 lb)
• Dimension (L × H × D) : 105 mm × 27.6 mm × 83.1 mm (4.76” × 3.47” × 1.09”)
• Operating temperature : 0°C to 40°C (32°F to 104°F)
• Storage temperature : -40°C to 85°C (-40°F to 185°F)
• Operating humidity : 5% to 95% (no condensation)
• Storage humidity : 5% to 95% (no condensation)
• Power Supply : 48 VDC, 1.35 A
• Max. power consumption : 65 W
• Power source : 65 W
