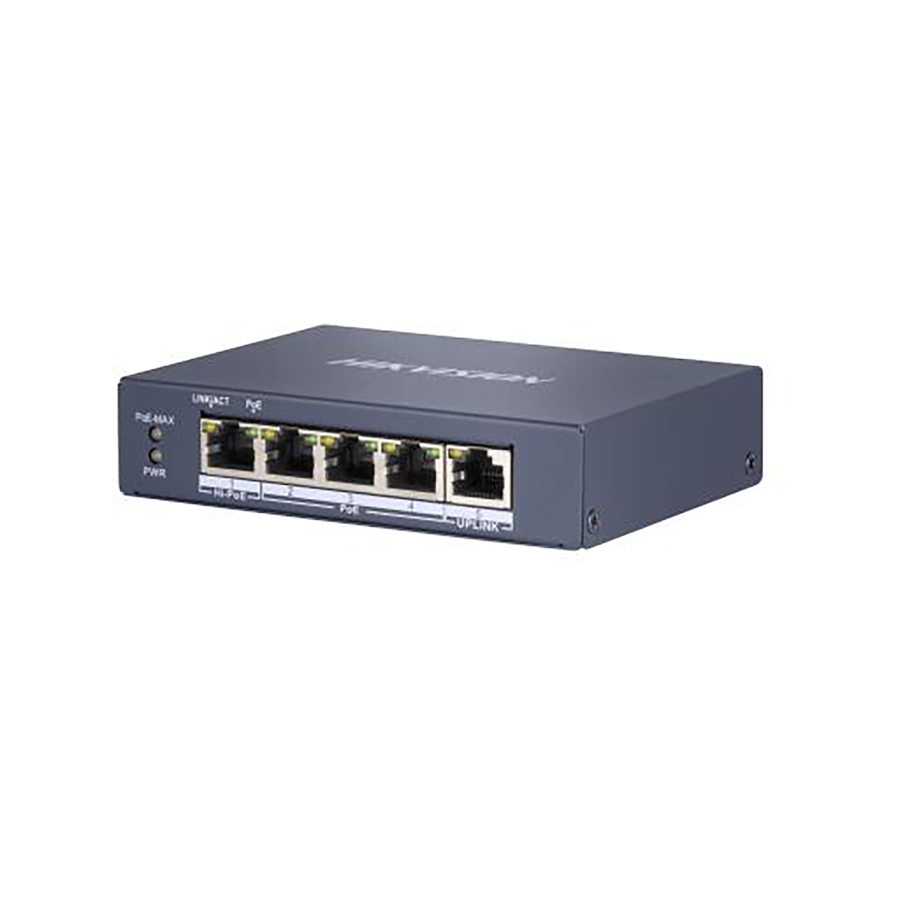

Hikvision 4 Port Unmanaged POE Switch

Hikvision 4-port GbE POE Unmanaged Switch

Features

• 3x Gigabit PoE port, 1x Gigabit Hi-PoE port and 1x Gigabit RJ45 port.
• IEEE 802.3at/af/bt standard for Hi-PoE port (Max. 60 W PoE output).
• IEEE 802.3at/af standard for PoE ports (Max. 30 W PoE output).
• IEEE 802.3, IEEE 802.3u, IEEE 802.3x, and IEEE 802.3ab standard.
• 6 kV surge protection for PoE ports.
• Up to 300m long-range transmission.
• PoE watchdog to auto detect and restart the cameras that do not respond.
• Port isolation to improve network security.
• Gigabit network access design.
• Wire-speed forwarding.
• Store-and-forward switching.
• Solid high-strength metal shell.
• Reliable fan-free design.

Technical Specification

General

• Shell: Metal material, fan-free design
• Net Weight: 0.27 kg
• Dimensions (W × H × D): 121.0 mm × 88.1 mm × 27.6 mm
• Power Supply: 48 VDC, 1.35 A
• Max. Power Consumption: 65 W
• Power Consumption in Idle: 5 W
• Installation Mode: Desk-Mounted
• Surge Protection: 6 KV

Network Parameters

• Ports: 4x Gigabit PoE port, 1x Gigabit RJ45 port
• MAC Address Table: 2 K
• Switching Capacity: 10 Gbps
• Packet Forwarding Rate: 7.44 Mpps
• Internal Cache: 1 Mbits

PoE Power Supply

• PoE Standard: IEEE 802.3af,IEEE 802.3at,IEEE 802.3bt
• PoE Power Pin: 8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
• PoE Port
   Hi-PoE: Port 1
   PoE: Ports 2 to 4
• Max. Port Power
   Port 1: 60 W
   Ports 2 to 4: 30 W
• PoE Power Budget: 60 W

Dialing Function

• Long Range
   Ports 3 to 4: up to 300 m
   Long range performance may vary depend on camera model or cable condition.
• Port Isolation
   Ports 1 to 4: port isolation mode to improve network security.
• PoE Watchdog
   Ports 1 to 4: auto detect and restart the cameras that do not respond.
