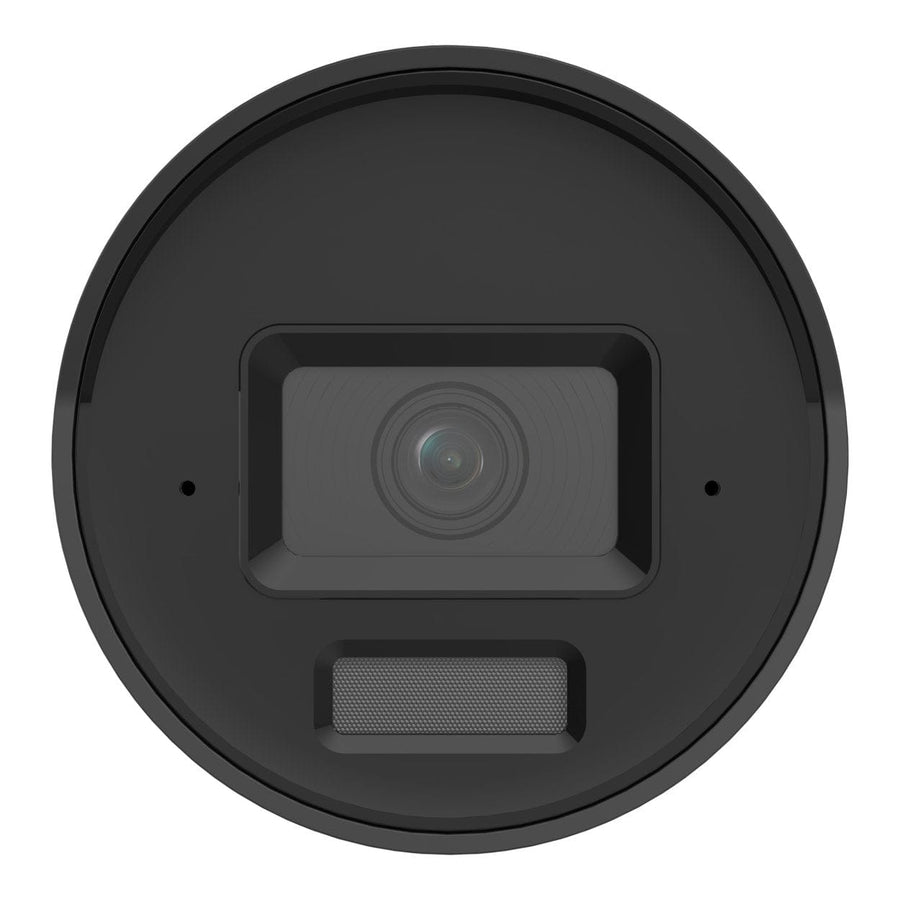

Hikvision 4MP 4mm Powered by Darkfighter Fixed Mini Bullet Network Camera

Hikvision 4MP 4mm Powered by Darkfighter Fixed Mini Bullet Network Camera

Camera

• Image Sensor: 1/3″” Progressive Scan CMOS
• Max. Resolution 2688 × 1520
• Min. Illumination Color: 0.001 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time 1/3 s to 1/100,000 s Day & Night IR cut filter
• Angle Adjustment Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type : Fixed focal lens 4 mm
• Focal Length & FOV : 4 mm, horizontal FOV 81.1°, vertical FOV 44.7°, diagonal FOV 94.6°
• Lens Mount : M12
• Iris Type: Fixed
• Aperture: F1.0
• Depth of Field : 4 mm: 2.5 m to ∞

Illuminator

• Supplement Light Type:IR
• Supplement Light Range :Up to 40 m
• Smart Supplement Light: Yes
• IR Wavelength: 850 nm

Video

• Main Stream: 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream:50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream: 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
• Video Compression:
  • Main stream: H.265/H.264/H.265+/H.264+
  • Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • *Third stream is supported under certain settings.
• Video Bit Rate: 32 Kbps to 8 Mbps
• H.264 Type: Baseline Profile/Main Profile/High Profile
• H.265 Type :Main Profile
• Bit Rate Control: CBR/VBR
• Scalable Video Coding (SVC) : H.264 and H.265 encoding
• Region of Interest (ROI): 1 fixed region for main stream and sub-stream

Audio

• Audio Type: -U: mono sound
• Audio Compression: -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
• Audio Bit Rate :-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
• Audio Sampling Rate: -U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
• Environment Noise Filtering:-U: Yes

Network

• Protocols :TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket, WebSockets
• Simultaneous Live View: Up to 6 channels
• API:  Open Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
• User/Host: Up to 32 users. 3 user levels: administrator, operator and user
• Security: Password protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
• Network Storage NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
• Client iVMS-4200, Hik-Connect, Hik-Central
• Web Browser Plug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+ Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch:Yes
• Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
• Day/Night Switch Day, Night, Auto, Schedule
• Wide Dynamic Range (WDR) 120 dB
• SNR ≥ 52 dB
• Image Enhancement BLC, HLC, 3D DNR
• Privacy Mask 4 programmable polygon privacy masks

Interface

• Ethernet Interface: 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage: Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Built-in Microphone: -U: Yes
• Reset Key :Yes

Event

• Basic Event: Motion detection (support alarm triggering by specified target types (human and vehicle)), video tampering alarm, exception
• Smart Event: Scene change detection
• Linkage :Upload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email

Deep Learning Function

• Face Capture :  Yes
• Perimeter Protection:  Line crossing, intrusion, region entrance, region exiting, Support alarm triggering by specified target types (human and vehicle

General

• Power : 12 VDC ± 25%, 0.45 A, max. 5.5 W, Ø 5.5 mm coaxial power plug, reverse polarity protection, PoE: IEEE 802.3af, Class 3, max. 7 W
• Material :nFront cover: Metal, body: Metal, bracket: Metal
• Dimension : Ø 74.4 mm × 179.2 mm (Ø 2.9″” × 7.1″”)
• Package Dimension: 234 mm × 120 mm × 117 mm (9.2″” × 4.7″” × 4.6″”)
• Weight : Approx. 525 g (1.2 lb.)
• With Package Weight Approx.: 750 g (1.7 lb.)
• Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing) Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
• Language :33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
