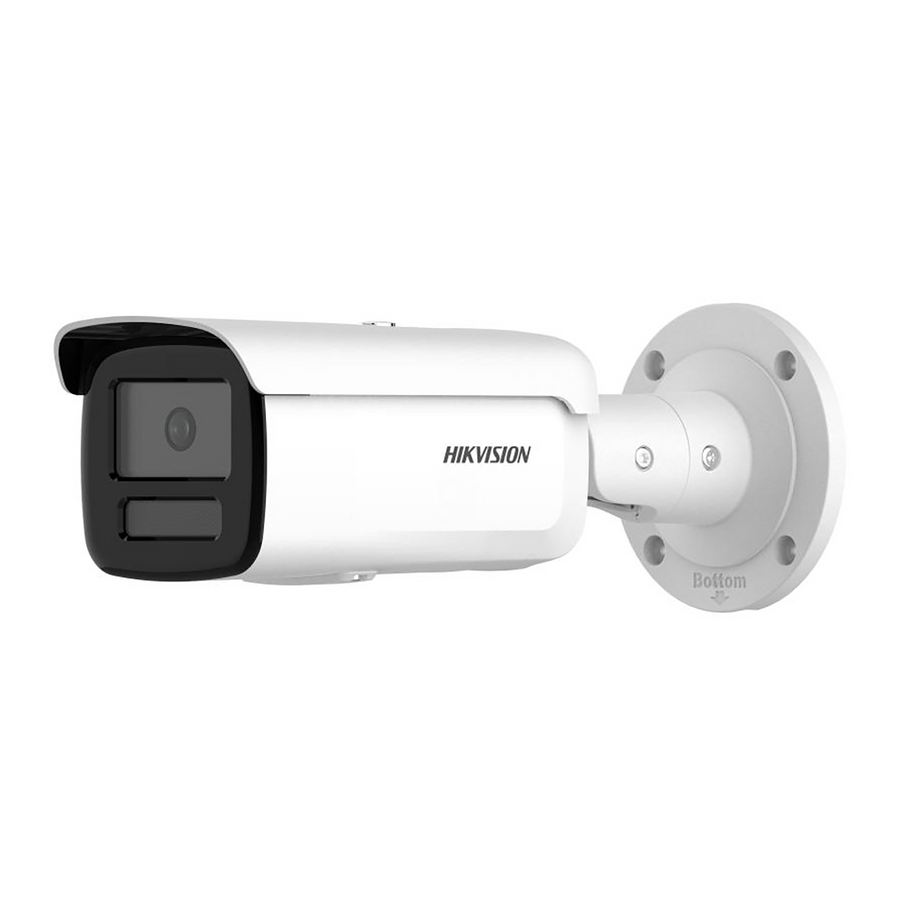

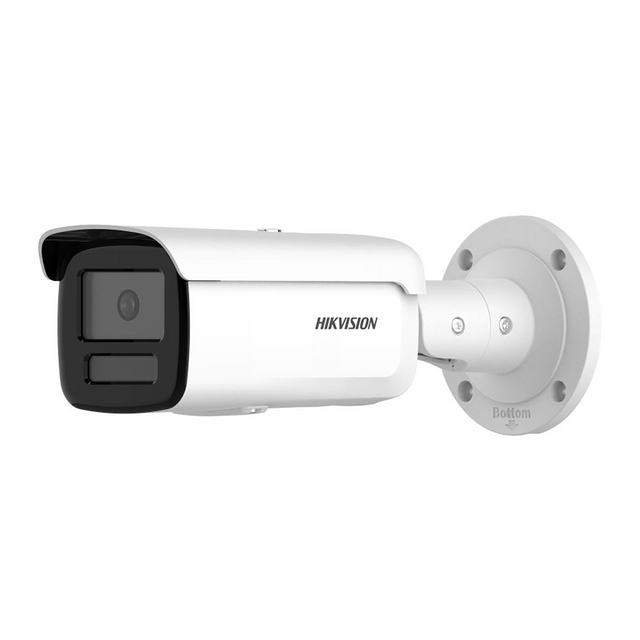

Hikvision 4MP 4mm Smart Hybrid Light with Colorvu Fixed Bullet Network Camera

Hikvision 4MP 4mm Smart Hybrid Light with Colorvu Fixed Bullet Network Camera

Camera

• Image Sensor : 1/1.8″ Progressive Scan CMOS
• Max. Resolution : 2688 × 1520
• Min. Illumination : Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time : 1/3 s to 1/100,000 s
• Day & Night : IR cut filter
• Angle Adjustment : Pan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

• Lens Type : Fixed focal lens, 4mm
• Focal Length & FOV : 4 mm, horizontal FOV 89.2°, vertical FOV 45.5°, diagonal FOV 108.2°
• Lens Mount : M16
• Iris Type : Fixed
• Aperture : F1.0
• Depth of Field : 4 mm: 3.1 m to ∞

DORI

• DORI : 4 mm: D: 75 m, O: 30 m, R: 15 m, I: 7 m

Illuminator

• Supplement Light Type : IR, White Light
• Supplement Light Range : Up to 60 m
• Smart Supplement Light : Yes
• IR Wavelength : 850 nm

Video

• Main Stream
  • 50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
• Sub-Stream
  • 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
• Third Stream
  • 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
  • *The third stream is supported under certain settings.
• Video Compression
  • Main stream: H.265/H.264/H.264+/H.265+,
  • Sub-stream: H.265/H.264/MJPEG,
  • Third stream: H.265/H.264,
  • *Third stream is supported under certain settings.
• Video Bit Rate : 32 Kbps to 8 Mbps
• H.264 Type : Baseline Profile, Main Profile, High Profile
• H.265 Type : Main Profile
• Bit Rate Control : CBR, VBR
• Scalable Video Coding (SVC) : H.264 and H.265 encoding
• Region of Interest (ROI) : 1 fixed region for main stream and sub-stream

Network

• Protocols : TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets, SRTP, SFTP
• Simultaneous Live View : Up to 6 channels
• API : Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
• User/Host
  • Up to 32 users
  • 3 user levels: administrator, operator, and user
• Security : Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
  authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address)
• Network Storage : NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
• Client : iVMS-4200, Hik-Connect, Hik-Central
• Web Browser
  • Plug-in required live view: IE 10, IE 11,
  • Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+,
  • Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+


• Image Parameters Switch : Yes
• Image Settings : Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
• Day/Night Switch : Day, Night, Auto, Schedule
• Image Enhancement : BLC, HLC, 3D DNR
• SNR : ≥ 52 dB
• Wide Dynamic Range (WDR) : 130 dB
• Privacy Mask : 4 programmable polygon privacy masks

Interface

• Ethernet Interface : 1 RJ45 10 M/100 M self-adaptive Ethernet port
• On-Board Storage : Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
• Reset Key : Yes
