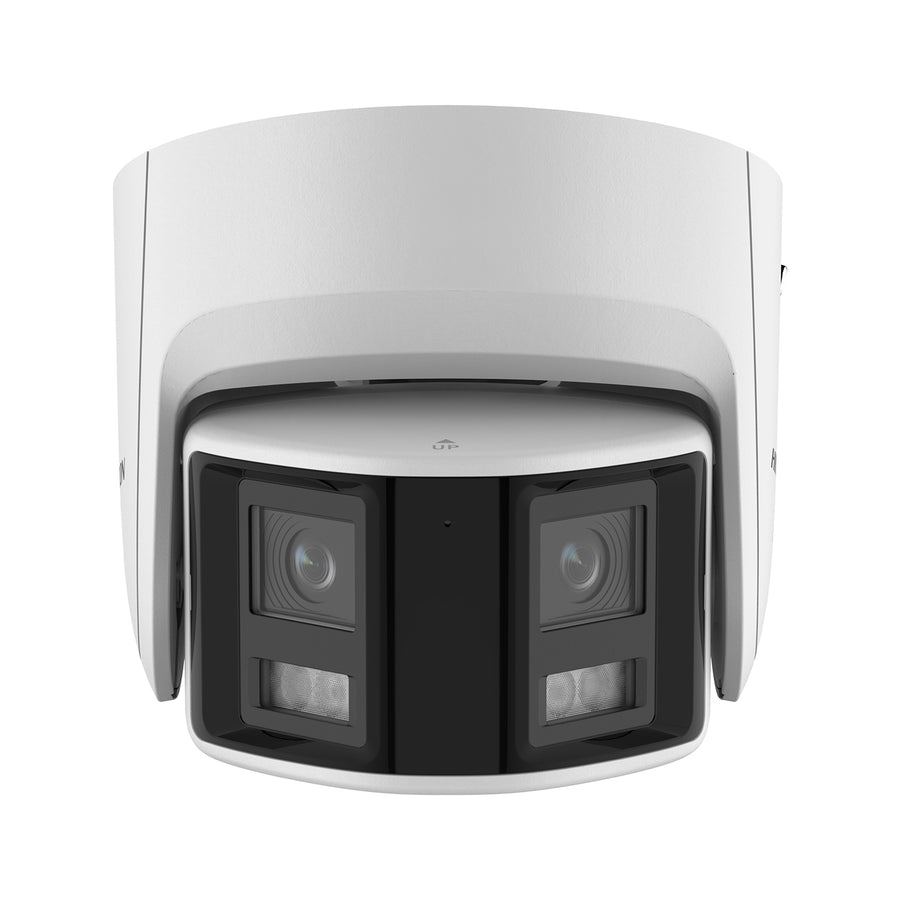

Hikvision 4MP ColorVU Panoramic Fixed Turret IP Camera

Hikvision 4MP Panoramic ColorVu Fixed Turret Network Camera

The Hikvision DS-2CD2347G2P-LSU/SL is a high-performance panoramic network camera designed to deliver crystal-clear, full-color imaging around the clock. Equipped with dual 1/2.5" Progressive Scan CMOS sensors and a 2.8 mm fixed dual lens, it provides a sweeping 180° horizontal field of view, making it ideal for wide-area monitoring with minimal blind spots.

Features:

• High quality imaging with 4 MP resolution
• One image that presents all the scenes covered by the camera
• 24/7 colorful imaging
• Efficient H.265+ compression technology
• Clear imaging against strong back light due to 130 dB WDR technology
• Focus on human and vehicle classification based on deep learning
• Active strobe light and audio alarm to warn intruders off
• Water and dust resistant (IP67)

Thanks to ColorVu technology and an F1.0 super-aperture lens, the camera achieves vivid, detailed color images even in ultra-low-light conditions (down to 0.0005 Lux), with built-in white light illumination up to 30m when required.

The DS-2CD2347G2P-LSU/SL supports advanced video compression (H.265+/H.265/H.264+/H.264) to optimize storage and bandwidth efficiency while maintaining high image quality. With a resolution of 3040 × 1368 at 25/24 fps, it delivers sharp and smooth video performance.

This model is equipped with intelligent perimeter protection powered by deep learning, supporting features like line crossing detection, intrusion detection, and region entrance/exit detection, with reliable human and vehicle classification to reduce false alarms.

For enhanced security, it includes motion detection, flashing white light, and an integrated speaker for real-time audio warnings, alongside a built-in microphone for one-way audio.

The camera is designed for durability with an IP67-rated weather-resistant metal housing, ensuring reliable operation in harsh outdoor conditions. It supports both 12V DC and PoE power options for flexible installation.

With its wide coverage, true-color imaging, and intelligent event detection, the DS-2CD2347G2P-LSU/SL is an excellent choice for applications such as parking lots, building perimeters, retail environments, and open public spaces.

Technical Specifications:

Camera

• Image Sensor: 2 × 1/2.5" Progressive Scan CMOS
• Max. Resolution: 3040 × 1368
• Min. Illumination: Color: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with light
• Shutter Time: 1/3 s to 1/100,000 s
• Angle Adjustment: Pan: 0° to 30°, Tilt: -75° to 75°

Lens

• Type: Fixed focal, dual lens, 2.8 mm
• Focal Length & FOV: 2.8 mm; Horizontal FOV: 180°, Vertical FOV: 81°
• Mount: M12
• Iris: Fixed
• Aperture: F1.0
• Depth of Field: 2 m to ∞

DORI

• 2.8 mm: Detect: 38 m | Observe: 15 m | Recognize: 7.5 m | Identify: 3.5 m

Illuminator

• Type: White Light
• Range: Up to 30 m
• Smart Supplement Light: Yes

Video

Main Stream:

• 50 Hz: 25 fps (3040 × 1368)
• 60 Hz: 24 fps (3040 × 1368)

Sub-Stream:

• 50 Hz: 25 fps (1200 × 536, 960 × 432)
• 60 Hz: 24 fps (1200 × 536, 960 × 432)
• Compression: H.265+/H.265/H.264+/H.264 (main); H.265/H.264/MJPEG (sub)
• Bit Rate: 32 Kbps – 8 Mbps
• Profiles: H.264 (Baseline, Main, High), H.265 (Main)
• Control: CBR, VBR
• SVC: H.264 and H.265
• ROI: 1 fixed region (main stream)

Audio

• Type: Mono
• Compression: G.711, G.722.1, G.726, MP2L2, PCM, MP3, AAC-LC
• Bit Rate: 8 Kbps – 320 Kbps (depending on codec)
• Sampling Rate: 8 kHz – 48 kHz
• Noise Filtering: Yes

Network

• Protocols: TCP/IP, HTTP/HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, IPv4/IPv6, SNMP, SSL/TLS, Websocket, etc.
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Profile S/G/T), ISAPI, SDK
• Users: Up to 32 (Administrator / Operator / User)
• Security: Password, HTTPS, 802.1X, watermark, TLS 1.2, IP/MAC filtering, audit log, etc.
• Storage: NAS (NFS/SMB), ANR, encrypted memory card (up to 512 GB, health detection)
• Clients: iVMS-4200, Hik-Connect, Hik-Central

Web Browser:

• Plug-in: IE 10/11
• Plug-in free: Chrome 57+, Firefox 52+, Edge 89+


• Parameters Switch: Yes
• Adjustments: Saturation, brightness, contrast, sharpness, gain, white balance
• Day/Night Switch: Day, Night, Auto, Schedule
• WDR: 130 dB
• SNR: ≥ 52 dB
• Enhancements: BLC, HLC, 3D DNR
• Privacy Masks: 8 (rectangular)

Interface

• Ethernet: 1 × RJ45 10/100M self-adaptive
• On-Board Storage: microSD/SDHC/SDXC, up to 512 GB
• Audio I/O: 1 in, 1 out (3.3 Vpp, terminal block, non-equilibrium)
• Built-in Mic & Speaker: Yes (Speaker: 1.2 W, 95 dB @ 10 cm)
• Alarm I/O: 1 in, 1 out (max. 24 VDC/24 VAC, 1 A)
• Reset Key: Yes

Events

• Basic: Motion detection (human/vehicle), I/O alarms, flashing light, audible alarm, exceptions
• Smart: Scene change detection
• Linkage: Upload to FTP/NAS/SD, notify center, email, alarm out, recording, snapshot, audio warning, white light flash

Deep Learning Functions

• Perimeter Protection: Line crossing, intrusion, region entrance/exit (human/vehicle filtering)

General

• Power: 12 VDC ±25% (0.88 A, max. 10.5 W), PoE (802.3af Class 3, max. 12.5 W)
• Material: Metal base & cover
• Dimensions: Ø140 × 145.6 mm (Ø5.5 × 5.7")
• Weight: 920 g (2.0 lb) | With package: 1670 g (3.7 lb)
• Package Dimensions: 230 × 230 × 230 mm (9" × 9" × 9")
• Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH (non-condensing)
• Storage Conditions: Same as above
• Languages: 33 (EN, RU, DE, FR, ES, PT, ZH, JP, etc.)
• Functions: Anti-banding, heartbeat, flash log, pixel counter, flashing light

Approvals

• EMC: FCC Part 15, CE-EMC EN55032, EN61000-3, RCM, ICES-003
• Safety: UL 62368-1, IEC/EN 62368-1
• Environment: CE-RoHS, WEEE, REACH
• Protection: IP67 (IEC 60529-2013)
