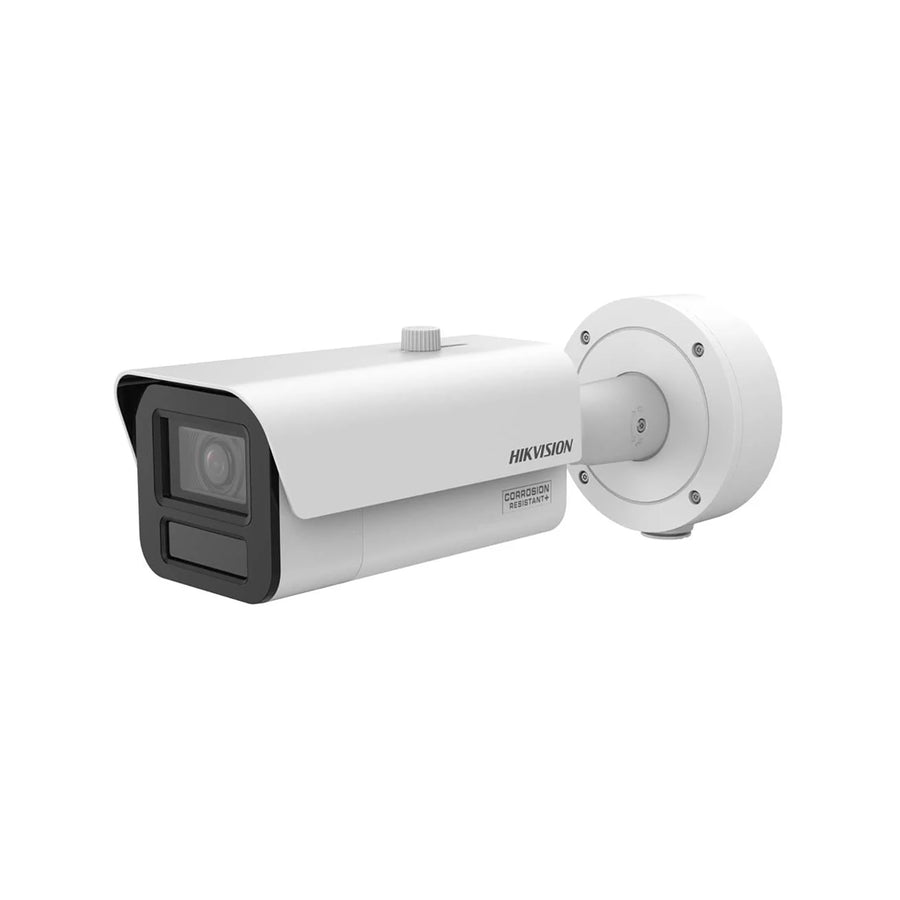

Hikvision 4MP DeepinView ANPR Moto Varifocal Bullet IP Camera

Hikvision 4MP 2.8-12mm DeepinView ANPR Motorized Varifocal Bullet Camera

Features

• High quality imaging with 4 MP resolution
• Excellent low-light performance via DarkFighter 2.0 technology
• Clear imaging against strong back light due to 150 dB AWDR technology
• Efficient H.265+ compression technology to save bandwidth and storage
• 5 streams to meet a wide variety of applications
• Water and dust resistant (IP67), vandal proof (IK10)
• High frame rate, up to 2MP@120fps and 4MP@60fps
• Built-in heater to ensure clear image under rainy or snowy weather
• Built-in G-sensor for vibration detection
• Built-in power meter for historical power statistics
• License plate recognition and vehicle attribution recognition

Technical Specification

Image Sensor: 1/1.8" Progressive Scan CMOS

Max. Resolution: 2688 × 1520

Focal Length: 2.8 to 12 mm

FOV: Horizontal FOV 106° to 41.8°, Vertical FOV 55.4° to 23.6°, Diagonal FOV 130° to 48.1°

Focus: Auto,Semi-auto,Manual

DORI

• Wide: D (Detect): 60 m, O (Observe): 23.8 m, R (Recognize): 12 m, I (Identify): 6 m
• Tele: D (Detect): 151.7 m, O (Observe): 60.2 m, R (Recognize): 30.3 m, I (Identify): 15.2 m

Supplement Light Type: IR

Supplement Light Range: Monitoring: 60 m

Smart Supplement Light: Yes

IR Wavelength: 850 nm

Mobile Communication: Not Supported

Video Output: 1x Vp-p Composite Output (75 Ω/CVBS) (Only for debugging)

Alarm: 2x inputs, 2x outputs (max. 24 VDC/24 VAC, 1 A)

Audio

• 1x input (line in), 3.5 mm connector, three-contact, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium,
• 1x output (line out), 3.5 mm connector, three-contact, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium, mono sound

Ethernet Interface: 1x RJ45 10 M/100 M/1000 M self-adaptive Ethernet port

Power

• Three-core terminal block
• 12 VDC ± 20%, 1.88 A, max. 22.56 W
• 24 VAC ± 20%, 1.57 A, max. 21.5 W
• PoE: IEEE 802.3at, Type 2, Class 4, 42.5 V to 57 V, 0.53 A to 0.4 A, max. 22.6 W
• Please note: Power supply is not included
