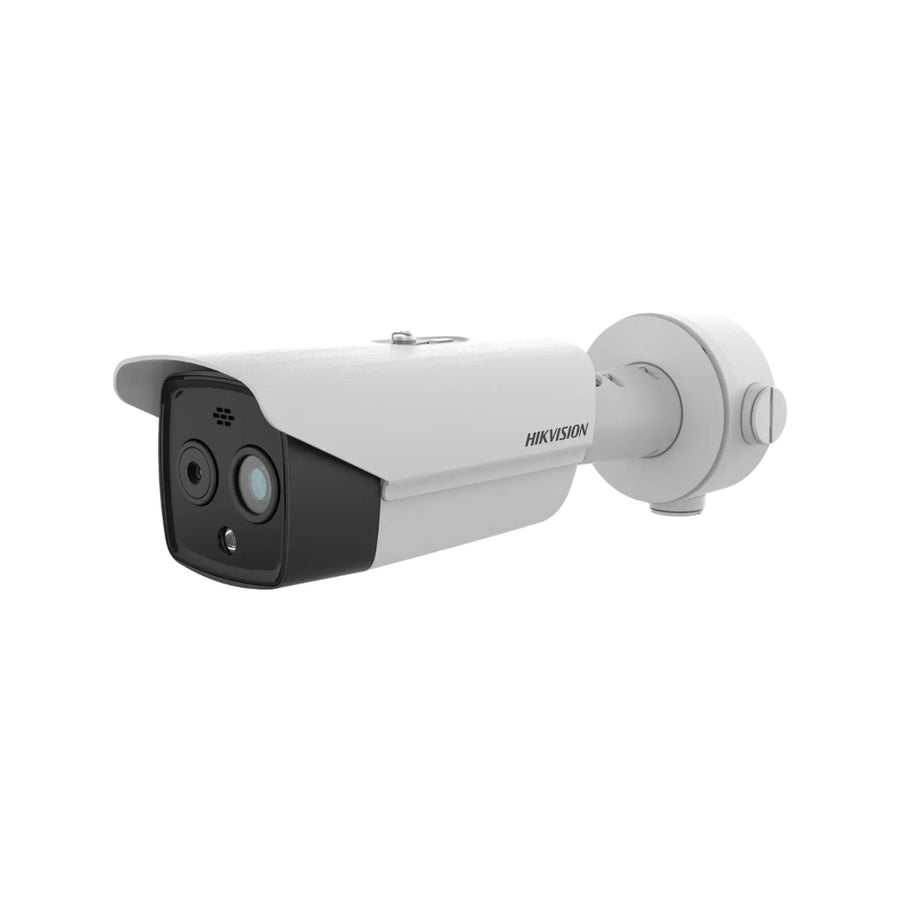

Hikvision 4MP Heat-Pro Bi-Spectrum Thermal IP Camera

Hikvision Thermal & Optical Bi-spectrum Network Bullet Camera

Features:

• 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
• Video content analysis: vehicle/human classification
• Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
• Support smoking detection algorithm
• Support sun-reflection filter algorithm
• Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
• High quality detector with 10 years guarantee

Technical Specifications:

Thermal Module
Image Sensor: Vanadium Oxide Uncooled Focal Plane Arrays
Resolution: 256 × 192
Pixel Pitch: 12 μm
Spectral Range: 8 μm to 14 μm
NETD: < 40 mK (25°C, F1.0)
Focal Length: 3.6 mm
IFOV: 3.33 mrad
Field of View: 50.0° × 37.3° (H × V)
Minimum Focusing Distance: 0.5 m
Aperture: F1.0
Digital Zoom: ×2, ×4

Optical Module
Image Sensor: 1/2.7" Progressive Scan CMOS
Resolution: 2688 × 1520
Minimum Illumination: 0.0089 Lux @(F1.6, AGC ON), 0 Lux with IR
Shutter Speed: 1 s to 1/100,000 s
Focal Length: 4.3 mm
Field of View: 84.0° × 43.1° (H × V)
Aperture: F1.6
WDR: 120 dB

Image Features
Target Coloration: Supported in white hot and black hot modes

Illuminator
IR Distance: Up to 30 m
IR Intensity and Angle: Automatically adjusted

Audible and Visual Alarm
White Light Range: Up to 30 m
Visual Alarm: White light alarm with adjustable flashing frequencies
Audio Alarm: Two types (VCA and Temperature Exception), 2 preset voice alerts and 6 user-defined alerts

Smart Functions
VCA: Line crossing, intrusion, region entrance, region exit (up to 8 rules)
Temperature Measurement: 3 rule types, 21 rules total (10 points, 10 areas, 1 line)
Temperature Range: -20°C to 150°C
Temperature Accuracy: ± 8°C

General Functions
Functions: Fire detection, smoking detection, sun-reflection filter

Video and Audio
Main Stream:
Thermal: 25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240)
Optical: 25 fps (50 Hz) / 30 fps (60 Hz) at up to 2688 × 1520

Sub Stream:
Thermal: 25 fps (704 × 576, 640 × 512, 320 × 240)
Optical: 25 fps (50 Hz) / 30 fps (60 Hz)

Video Compression: H.265 / H.264 (Main), H.265 / H.264 / MJPEG (Sub)
Audio Compression: G.722.1 / G.711ulaw / G.711alaw / MP2L2 / G.726 / PCM

Network
Protocols: IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour, SFTP, SRTP, TLS
Storage: MicroSD (up to 256 GB), NAS (NFS, SMB/CIFS), ANR
API: ISAPI, Hikvision SDK, ISUP, ONVIF (Profile S, G)
Simultaneous Live View: Up to 20 channels
User Access: Up to 32 users (Administrator, Operator, User)
Security: User authentication, MAC binding, HTTPS encryption, IEEE 802.1x, IP filtering

Client & Browser Support
Client Software: iVMS-4200, Hik-Connect
Web Browsers: Internet Explorer 11, Chrome 57+, Firefox 52+

Interface
Alarm Input: 2 (0–5 VDC)
Alarm Output: 2 (configurable)
Audio Input: 1 × 3.5 mm Mic/Line in
Audio Output: Linear level, 600 Ω
Network Interface: 1 × RJ45 (10/100 Mbps)
Serial Interface: 1 × RS-485 (half duplex)
Analog Output: 1.0 Vp-p / 75Ω (PAL/NTSC/BNC)

General
Web Client Language: 32 languages supported
Power Supply: 24 VAC ±25%, 12 VDC ±25%, PoE (802.3af, Class 3)
Power Consumption: Max. 8.5 W
Operating Temperature: -40°C to 65°C
Operating Humidity: ≤ 95%
Protection Level: IP67, IK10, TVS 4000V lightning protection

Physical
Dimensions: 321.3 × 106.1 × 107.0 mm
Weight: 1550 g

Detection Range
Human Detection (VCA): 24 m
Vehicle Detection (VCA): 72 m
