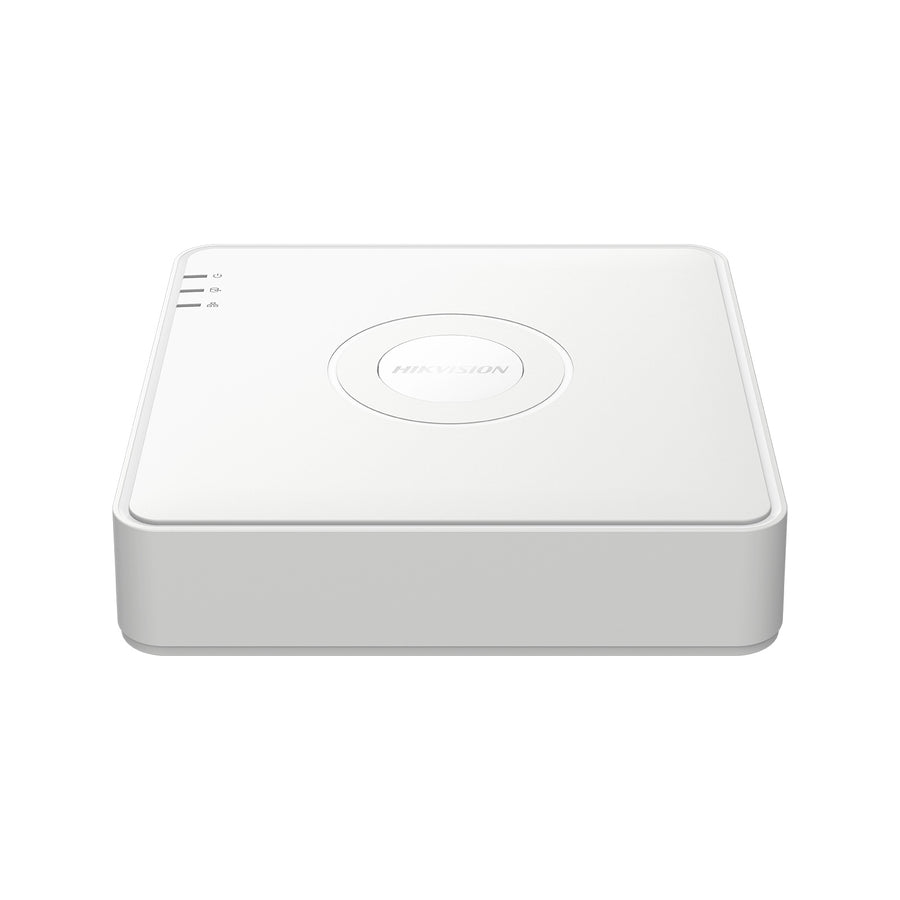

Hikvision 8-Channel 1080p Lite Mini 1U DVR

Hikvision 8-ch 1080p Lite Mini 1U H.265 DVR

Features

• Support all channels motion detection technology
• H.265 Pro+/H.265 Pro/H.265 video compression
• HDTVI/CVI/AHD/IP/CVBS video inputs
• Audio over coaxial cable
• Support all channels HDTVI two-way audio technology
• Up to 10-ch IP camera inputs

Targets classification

Deep learning based human and vehicle targets classification of Motion Detection 2.0

Compression and Recording

H.265 Pro+ video compression improves encoding efficiency, and reduces data storage costs, Support 1080p Lite of all channels. When 1080p Lite is on, the image effect is similar with 1080p

Technical Specification

IP Video Input

• 2-ch (up to 10-ch)
• Up to 5MP resolution
• Support H.265+/H.265/H.264+/H.264 IP cameras

Analog Video Input

• 8-ch
• BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Audio Input

• 1-ch RCA (2.0 Vp-p, 1 KΩ)
• 8-ch via coaxial cable

Audio Output: 1-ch, RCA (Linear, 1 KΩ)

Two-Way Audio: Reuse the first audio input

SATA: 1x SATA interface

Capacity: Up to 4 TB capacity for each disk

Rear panel USB Interface: 2x USB 2.0

Network Interface: 1x RJ45 10/100 Mbps self-adaptive Ethernet interface
