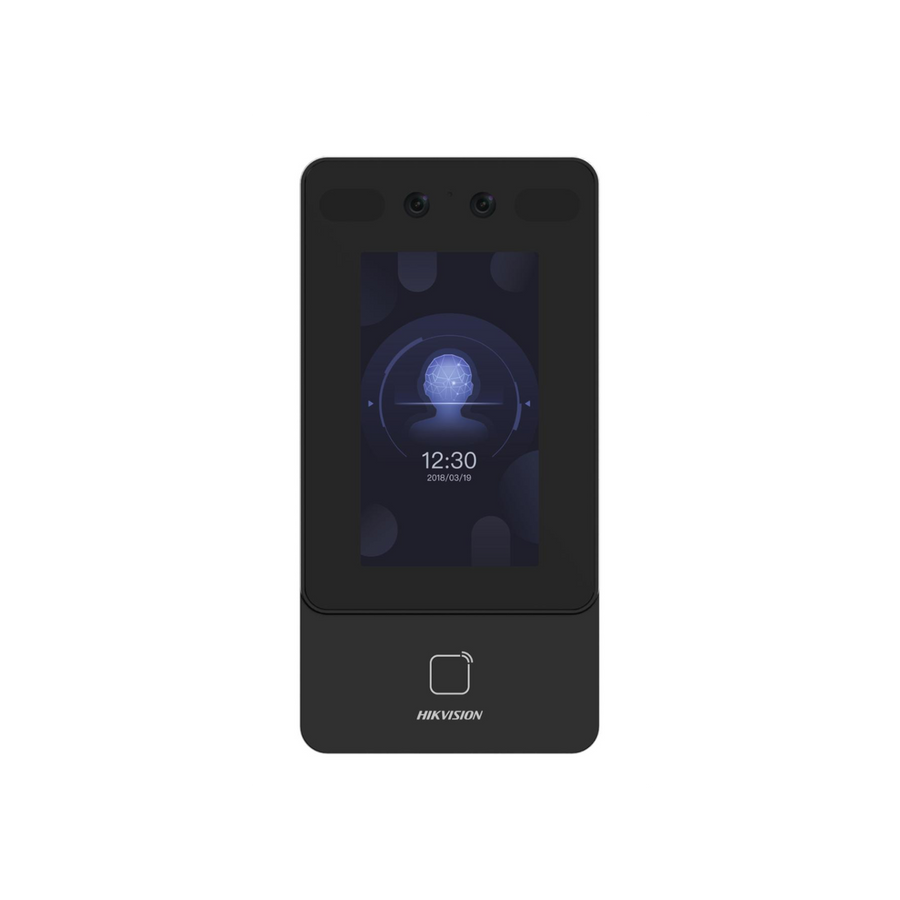

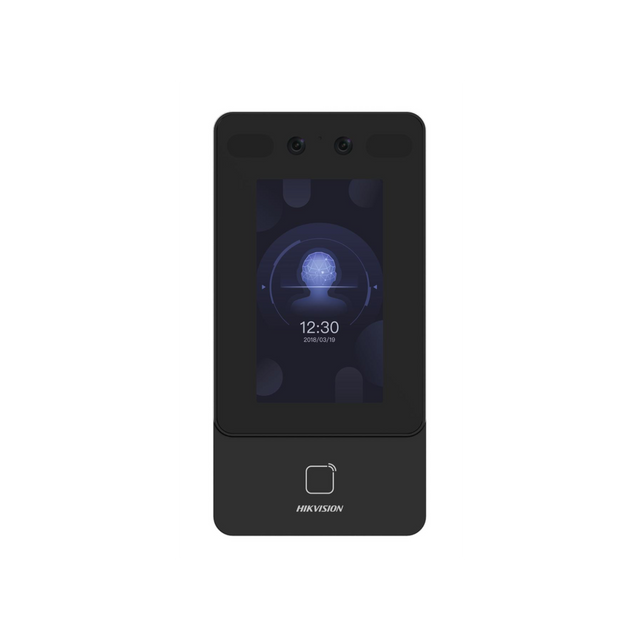

Hikvision Face Recognition Terminal Access Control

Hikvision Face Recognition Access Control Terminal

Face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes: face/card authentication, etc. It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.

Features

• Max.1500 faces capacity, and Max.3000 cards
• Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1 card reading module
• Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
• Supports ISAPI, ISUP5.0
• Configuration via the web client
• Face Recognition Distance: 0.3 m to 1.5 m; Duration ＜ 0.2 s/User; Accuracy rate ≥ 99%
• Supports face with mask recognition
• Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
• Supports platform-applied personal PIN and device-set personal PIN

Technical Specification

• Operation System: Linux

• Dimensions: 4.3-inch
• Resolution: 272 x 480
• Type: LCD
• Operation Method: Capacitive touch screen

• Pixel: 2MP
• Lens: 2x
• Video Standard: PAL (Default) and NTSC

• Wired Network: 10/100Mbps self-adaptive
• Wi-Fi: Support

• PoE: IEEE802.3at, standard PoE
• Network Interface: 1
• RS-485: 1
• Wiegand: 1
• Lock Output: 1
• Exit Button: 1
• Door Contact Input: 1
• TAMPER: 1
• USB: 1

• Card Capacity: 3,000
• Face Capacity: 1,500
• Event Capacity: 150,000

• Card Type: M1 card
• Card Reading Frequency: 13.56 MHz
• Face Recognition Duration:＜ 0.2 s
• Face Recognition Accuracy Rate:＞99%
• Face Recognition Distance: 0.3 to 1.5 m

• Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)
• Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)
• Dimensions: 91.3 mm x 181.3 mm x 24.5 mm
• Installation: Wall Mounting
• Protective Level: IP65

• Face Anti-Spoofing: Support
• Audio Prompt: Support
• Time Synchronization: Support
