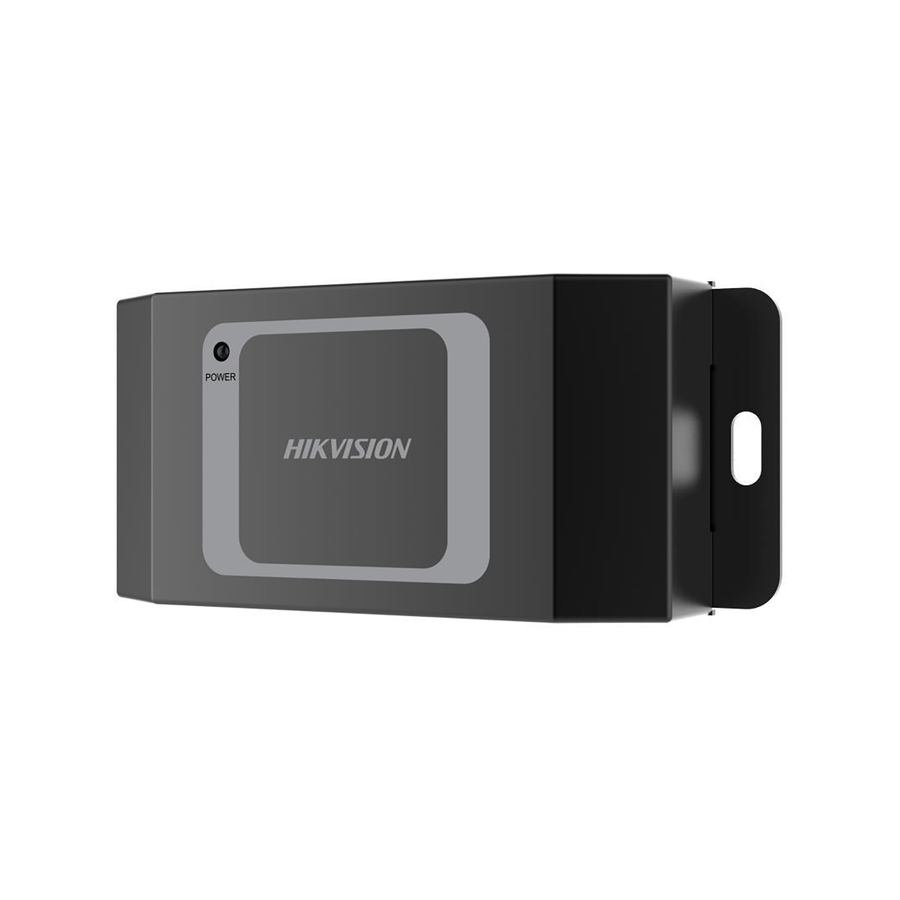

Hikvision Secure Door Control Module

Hikvision Secure Door Control Module

Secure Door Control Unit is the interlayer between the access control terminal and the lock, including the door magnetic, the lock, the exit button and so on. It can be applied to keep the door closed when the door is damaged

Features

• Communicates with the access control terminal via RS-485 to execute the commands from the terminal including open door, close door, normally open and normally closed
• Collects the door magnetic signal, the exit button signal and the tamper-proof signal and send them to the access control terminal
• Supports tampering alarm
• Supports RS-485 communication indicators to show the communication status
• 4-ch DIP switch supporting ID No. configuration
• Supports a Wiegand interface to connect a Wiegand card reader to enter/exist access control terminal by swiping card
• Fire interface and exit button linkage

Technical Specification

Interface

• Lock control: 1
• Exit button: 1
• Door contact input: 1
• Alarm input: 2
• Alarm output: 1
• RS-485: 1
• Wiegand: 1

General

• Indicator: 1 for power supply
• Power supply: 12 VDC 0.5A
• Dimensions: 48 mm × 115 mm × 26 mm (1.9" × 4.5" × 1.0")
• Installation: Wall Mounting
