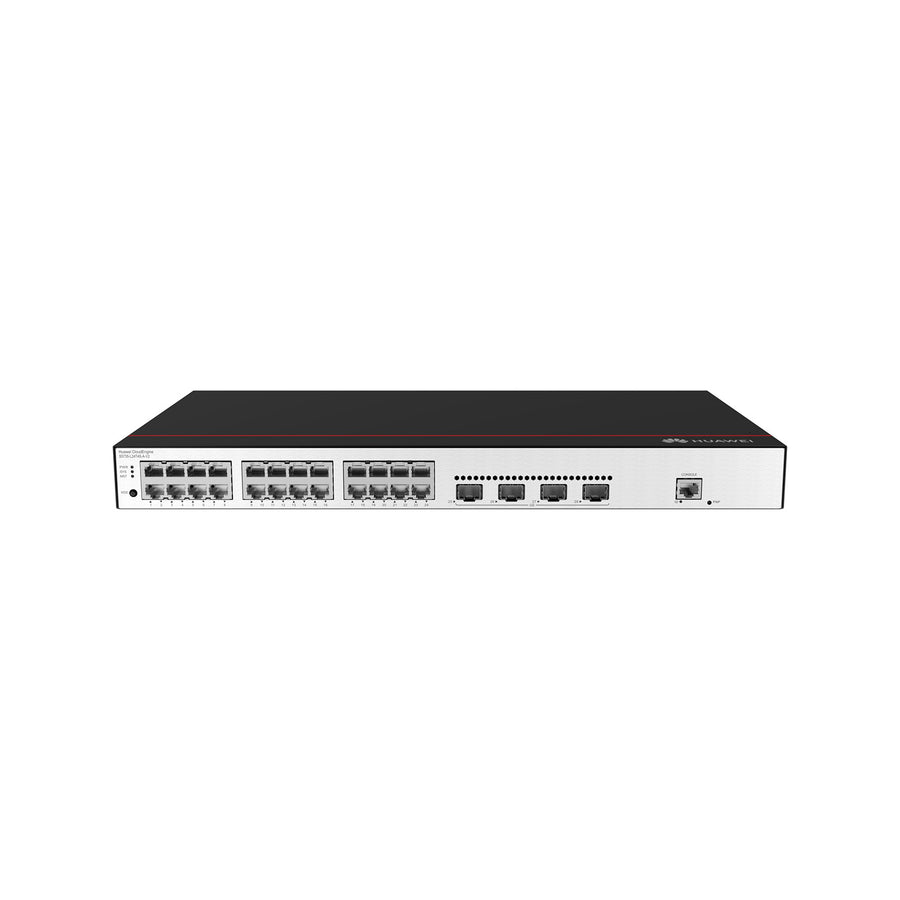

Huawei CloudEngine S5735-L24T4S-A-V2 1U L2 Managed 24-Port Gigabit 4x SFP Rack Switch

Huawei CloudEngine S5735-L24T4S-A-V2 24-Port Switch

Based on the next-generation high-performance hardware and Huawei's unified software platform, the CloudEngine S5735-L-V2 series switches feature flexible Ethernet networking, various security control methods, and easy O&M.

These switches support multiple Layer 3 routing protocols, provide higher performance, and offer more service processing capabilities, making them ideal for various industries, such as healthcare, retail, mining, and Internet.

Technical Specifications:

Ports & Interfaces

Ethernet Ports

• 24 × 10/100/1000BASE-T RJ45 Ports
• 4 × GE SFP (1000BASE-X) Ports
• 1 × Console Port (RJ45)

Performance & Hardware

Switch Type
Layer 2 Ethernet Switch

Memory
2 GB

Flash Memory
1 GB

PoE Support
Not Supported

Power

Power Supply Type
Built-In AC Power Module

Rated Input Voltage
100–240 V AC, 50/60 Hz

Input Voltage Range
90–264 V AC, 45–65 Hz

Maximum Input Current
0.8 A

Typical Power Consumption
26.37 W

Maximum Power Consumption
34.04 W

Cooling

Cooling System
Built-In Fan With Intelligent Speed Adjustment

Airflow Direction
Left And Front Intake, Right Exhaust

Environmental

Operating Temperature
-5°C To 50°C

Storage Temperature
-40°C To 70°C

Operating Humidity
5% To 95% RH (Non-Condensing)

Maximum Operating Altitude
0–5000 m

Ingress Protection Rating
IP20

Physical Specifications

Form Factor
1U Rack-Mount

Chassis Material
Metal

Dimensions (H × W × D)
43.6 × 442 × 220 mm

Maximum Depth
227 mm

Package Dimensions (H × W × D)
90 × 550 × 360 mm

Weight (Without Packaging)
2.32 kg

Weight (With Packaging)
3.44 kg

Other Features

Heat Dissipation
Air Cooling

Surge Protection
Power Supply Surge Protection ±6 kV

Certification
EMC Certification
Safety Certification
Manufacturing Certification
