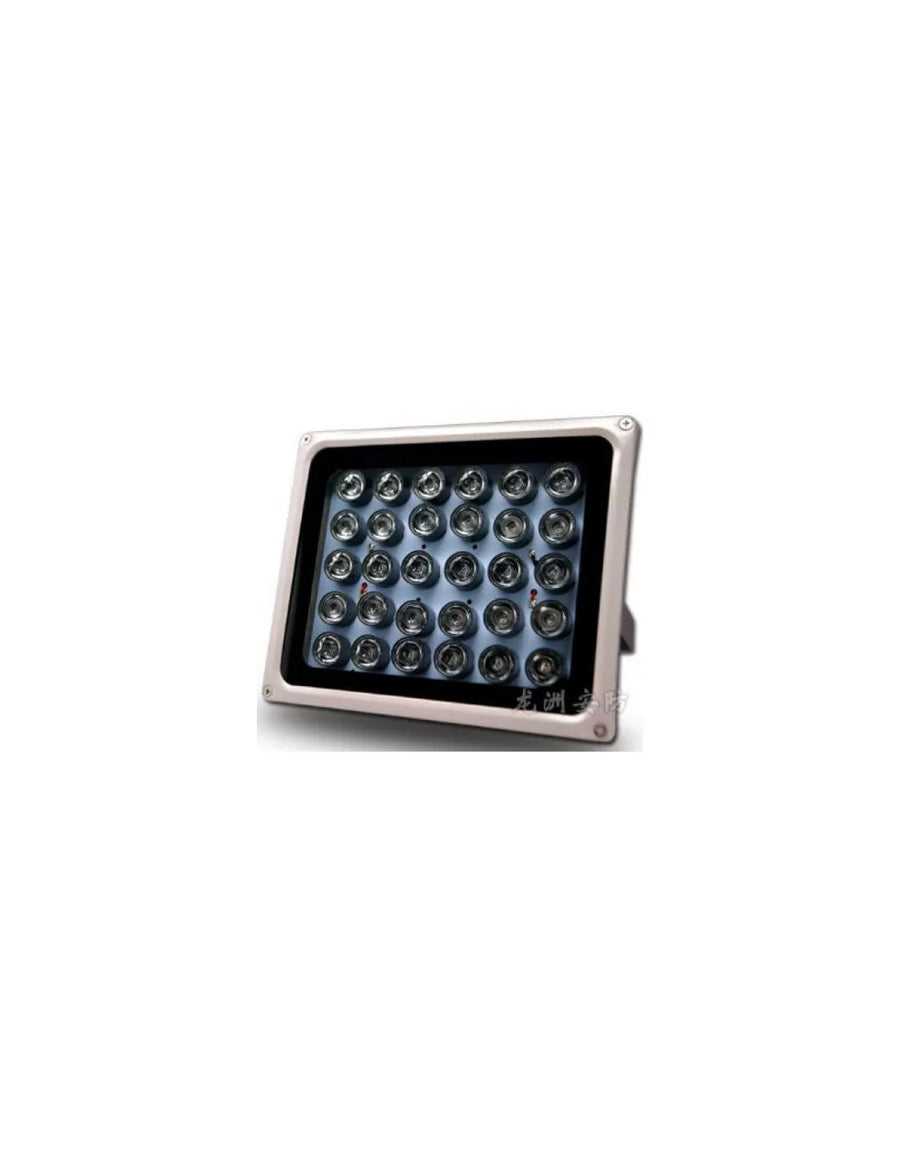

IR Illuminator, 60- 85m Range, 100m at 45 Degree angle, DC12V2A, no PSU included

IRL-180 60-120m Distance IR Illuminator

The IRL-180 is a high-performance infrared illuminator designed to enhance night-time surveillance by providing powerful infrared lighting for CCTV cameras in low-light and no-light environments. With an illumination range of up to 120 metres, 850nm infrared wavelength, and IP65-rated weather protection, it is ideal for perimeter security, parking areas, warehouses, industrial facilities, and other outdoor surveillance applications. The integrated photocell automatically activates the IR LEDs at dusk and switches them off at dawn, ensuring efficient and reliable operation.

Weatherproofing

Housed with IP65-rated protection (dust-tight and water-resistant), and protected by toughened glass

Thermal management

Effective heat sink design ensures proper ventilation, reducing overheating risk

Auto operation

Built-in photocell enables automatic activation of the IR LEDs at dusk and off at dawn

Mounting

Comes with an adjustable bracket for precise alignment and low-resistance installation

Specifications

Product Type: Infrared Illuminator

Model:

Product Code: IRL-180

Illumination Distance: 60–120 m

LED Type: 30 × 42mil Array IR LEDs

Infrared Wavelength: 850 nm

Beam Angle: 45°

Power Supply: DC 12V

Current Requirement: Up to 7.5A

Day/Night Switching: Automatic Photocell

Housing Protection: IP65

Front Cover: Toughened Glass

Mounting: Adjustable Bracket

Cooling System: Integrated Heat Sink
