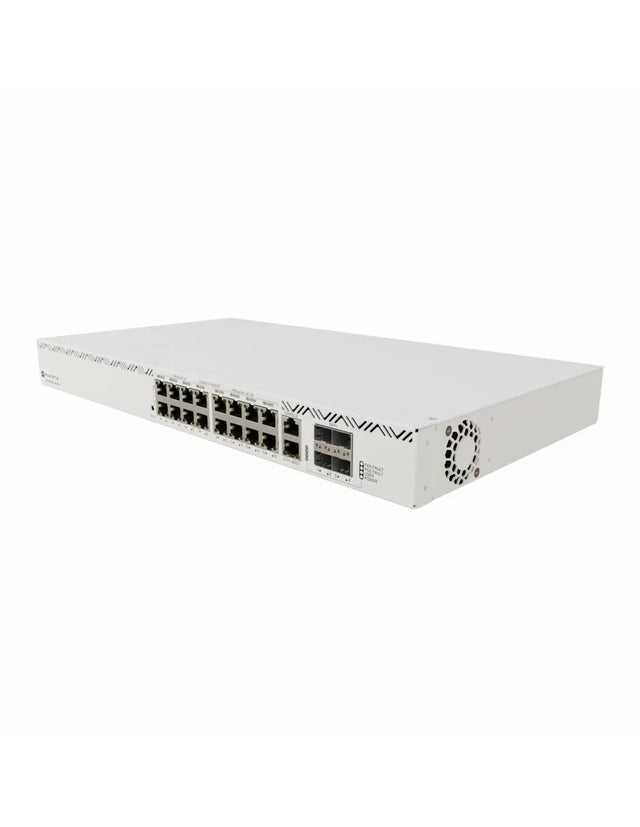

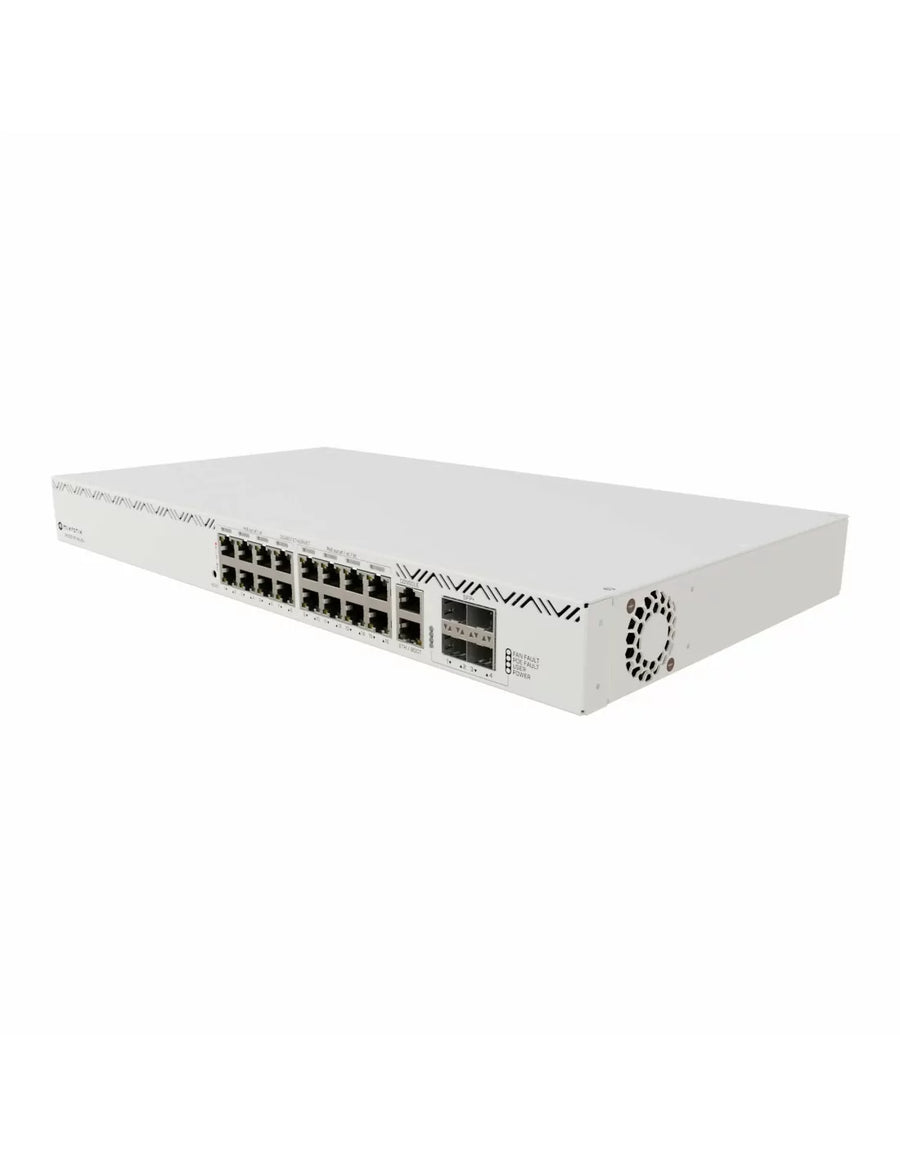

MikroTik 16 Port PoE++ Cloud Router Switch | CRS320-8P-8B-4S+RM

MikroTik CRS320 16-port GbE PoE++ Cloud Router Switch with 4x SFP+ Ports

The first MikroTik high-power PoE++ switch – for easy and cost-effective powering of industry standard 802.3af/at/bt devices. Forget about countless power cables – create a cleaner space with PoE++!

Cable management can get really exhausting. But it doesn’t have to. Our first PoE++ or 802.3bt switch can make your cable management so much easier, as it can output enough power for all your hotel, conference hall, office and high-rise building needs!

4K security cameras with built-in winter heating elements, LED ad screens, PoE-powered light fixtures – CRS320 can output up to 90W per port, enough even for the most demanding devices! It comes with a reliable 600 W power supply, but we’ve reserved an expansion slot for an additional PSU, in case you need to raise the power output to 1150 W.

There are 17 Gigabit Ethernet ports: #1 - #8 Gigabit Ethernet ports with 802.3af/at PoE-out, #9 - #16 802.3bt PoE++ ports, and an extra Gigabit Ethernet port for management purposes. There’s also a console port, and four 10G SFP+ fiber ports for uplink.

At its core, this convenient switch has a phenomenal Marvel switch-chip – the same one you’ve seen in ISP bestsellers like the netPower 16P and netFiber 9! It can handle the heaviest loads, including VLAN-filtering and hardware-offloaded Layer-3 routing.

If you’ve been looking for a way to simplify your cable management – this is it! With a single CRS320, you can ditch that endless mess of DC power adapters and start living the clean minimalist PoE dream.

Unlike our previous 802.3af/at Power Sourcing Equipment, this is our first PoE switch with full implementation of the 802.3af/at/bt standard. It supports only fully compliant 802.3 at/af/bt Powered Devices - mAP-lite / RB1100AHx4 / CRS510-8XS-2XQ / CRS504-4XQ / FTC11XG / CRS305-1G-4S+OUT. While it can also power “802.3af/at/bt-compatible” Powered Devices, you must avoid specific grounding scenarios. Please refer to the official MikroTik Help page.

• 1x Hot-swappable PSU is included.

Technical Specification

Product: MikroTik

Architecture: ARM 32bit

CPU: 98DX226S

CPU core count: 2

CPU nominal frequency: 800 MHz

Switch chip model: 98DX226S

RouterOS license: 5

Operating System: RouterOS v7

Size of RAM: 256 MB

Storage size: 32 MB

Storage type: FLASH

MTBF: Approximately 200'000 hours at 25C

Powering

• Number of AC inputs: 1x
• AC input range: 100-240
• Number of PSU slots: 2
• Frequency (Hz): 50-60
• Max power consumption: 600W (1150W with additional PSU)
• Max power consumption without attachments: 36 W
• Cooling type: 3 fans

PoE-out

• PoE-out ports: Ether1-Ether8 (af/at), Ether9-Ether16 (bt)
• PoE out: 802.3af/at/bt
• Max out per port output (input 30-57 V): 560 (af/at) / 1667 (bt) mA
• Max total out (A): 17.82 A
• Total output current: 17.82
• Total output power: 963

Ethernet

• Ethernet ports: 17x 10/100/1000
• Number of 1G Ethernet ports with PoE-out: 16x

Fiber

• SFP+ ports: 4x

Peripherals

• Serial console port: 1x RJ45
