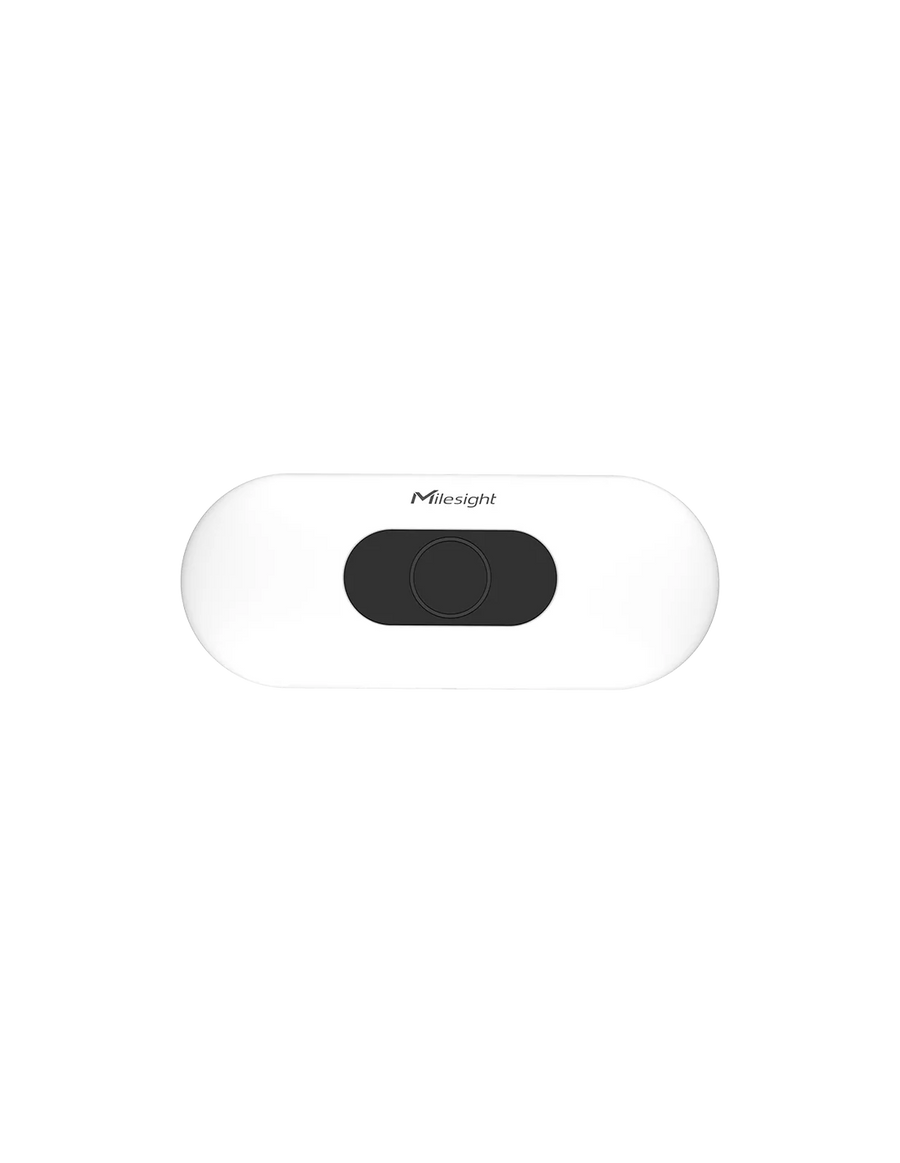

Milesight AI ToF People Counting Sensor - PoE Version (NO LoRA)

Milesight AI ToF People Counting Sensor - PoE Version

AI ToF People Counting Sensor

VS13x, a ToF pioneer, delivers ultra-precise overhead people counting for staff and groups. Anonymous, GDPR-compliant, AI-powered analytics make VS133 and VS135 the must-have solution for smart spaces.

99.8% Accurate People Insights, GDPR First

2nd Gen ToF

Ultra-accurate and highly adaptive sensing, stable in any lighting environments.

AI Algorithms

Filters non-human targets and ensure accuracy even in complex flows.

GDPR Certified

Full control and transparency over personal data, protecting user privacy.

Foot Flow-Driven Smart Building

Leverage real-time foot traffic insights with VS13x overhead people counter to automate building systems, enhance safety, and improve tenant experience.

Deploy Flexibly, Manage Centrally, Optimize for the Future

VS133 simplifies deployment and maintenance with its flexible installation options, intuitive central management, and integrated overhead people counter for accurate occupancy insights.

VS135: Engineered for Wide-Area Coverage

VS135 with Ultra AI and ToF delivers greater precision and wider coverage. Supporting ceiling heights up to 6.5m.

High-Ceiling Mounting – 6.5m

Accurate people counting in tall scenarios, 22.05㎡ coverage.

Multi-Connectivity

LoRa®, Wi-Fi HaLow, 4G, Ethernet; seamless data & easy maintenance.

Up to 8 Units Multi-Stitching

Expand coverage, integrate insights effortlessly.

Radar ESG Mode

Automatically dims or powers off ToF light when no presence is detected, saving energy.

Applicable Scenarios

Perfect for tall entrances or the center of large spaces to monitor heavy foot traffic, with Ultra ToF ensuring privacy protection.

Technical Specifications:

People Counting
ToF FoV: 98° Horizontal, 80° Vertical
ToF Light Beam: 940 nm (Invisible)
Distance Measuring Accuracy: ±3.5 cm
Detection Range: 0.5 m to 3.5 m
Installation Height: ≤3.5 m

Advanced Functions
Bi-Directional People Counting: Up to 4 counting lines for bi-directional people counting
U-Turn Filtering: Filters redundant counting of people wandering in bi-directional people counting areas
Regional People Counting and Dwell Time Detection: Up to 4 detection areas (up to 10 sides per area) for regional people counting and dwell time detection
Group Counting: Supported
Children/Adults Differentiation: Supported
Staff Detection: Supported
Shopping Cart Fill Level Detection: Supported
Occlusion Detection: Supported
Heat Map:

• Motion Heat Map
• Dwell Heat Map

Data Retransmission: Supports 6 × 30,000 data retransmission packets
Multi-Device Stitching:

• Supports up to 4 devices stitched together to expand coverage
• Supports automatic detection of the deflection angle

Wireless Transmission
Ethernet Port: 1 × RJ45 10/100 Mbps (PoE PD)
Ethernet Isolation: 1.5 kV RMS
Network Protocols: HTTP(S), MQTT(S), NTP, 802.1X, SSH, LLDP, BACnet/IP
VPN: OpenVPN

Other Interfaces
Alarm I/O: 1 Input, 1 Output
Serial Interface: 1 × RS485 (Under Development)
Button: 1 × Reset Button
LED Indicators: 1 × RGB LED Indicator

Physical Characteristics
Local Storage: Stores up to 1 million data records and supports CSV file export
Power Supply: 802.3at PoE+
Power Consumption: Typical 9.4 W, Maximum 23.8 W
Operating Temperature: -20°C to 50°C
Relative Humidity: 0% to 95% Non-Condensing
Ingress Protection: IP40
Dimensions: 180 × 26 × 72 mm
Housing and Colour: PC and Aluminium Alloy, White
Weight: 226 g
Installation Methods:

• Ceiling Mounting
• Extended Ceiling Mounting
• Lintel Mounting (with Optional Multifunctional Bracket)

Approvals
Regulatory Compliance: CE, FCC, GDPR
Environmental Compliance: RoHS
