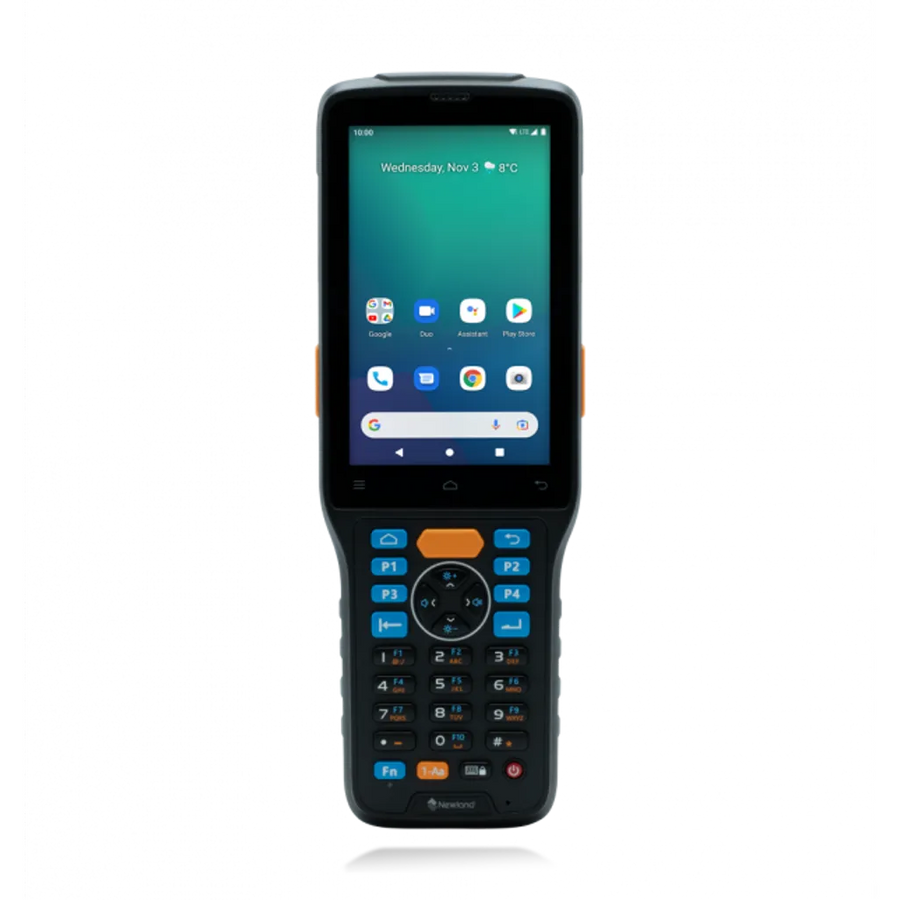

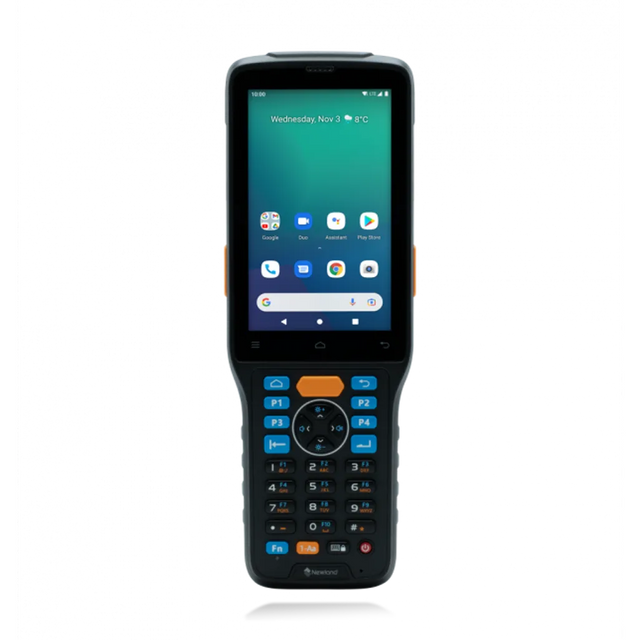

Newland N7 Cachalot Pro II 2D CMOS Rugged Mobile Computer Android 11 4G LTE IP65 QWERTY

Newland N7 Cachalot Pro II 2D CMOS Mobile Computer

Meet the most rugged entry in the Newland Pro Series! The N7 Cachalot Pro II thrives in even the busiest warehouse and logistic applications. This mobile computer adds processing speed, fast-roaming wireless connections, higher drop- and IP ratings, and added flexibility through a choice of 3 keyboard layouts. Available with Duo Near & Far technology, the N7 Cachalot Pro II enables scanning at both close and long ranges.

Features:

Business-Class Durability

Built to withstand dusty environments and inevitable bumps and drops, the N7 Cachalot Pro II offers an IP65 rating and has been drop-tested up to 1.8m, ensuring a long lifetime in harsh environments.

The Keys to Unlocking Applications

The N7 Cachalot Pro II is designed to allow tailoring to many different applications for which a physical keyboard is still preferred. It offers the flexibility to choose between a 29, 38 and 47 keypad option (not including side scan buttons). Each of the three configurations are back-lit for high visibility in dark work environments.

Megapixel Barcode Scanning - Duo Near & Far*

The N7 Cachalot Pro II is available with advanced Duo Near & Far scanning technology. Newland’s Duo Near & Far combines two 2D scan engines working side by side to select and decode barcodes at both near and far distances. By using two separate scan engines, the N7 Cachalot Pro II can seamlessly switch between them based on the distance of the barcode, resulting in faster scanning and improved productivity. *also available as standard range only model

Rugged Touchscreen Mobile Computer

The 4” HD screen has high transparency and low reflectivity to give crystal clear images, even in sunlight. The touchscreen responds when wearing gloves and maintains sensitivity even when wet. For added protection, Gorilla Glass 3 makes the N7 Cachalot Pro II tougher and more damage resistant, making the device the perfect companion in rough environments.

Reliable All-day Use with Hot-Swappable Battery

The N7 Cachalot Pro II supports fast charging with its 5100mAh hot-swappable battery. This keeps your program running and your WiFi connected, even when taking the battery fully out to exchange it with a new one. The single cradle is designed to link to up to 3 additional cradles (4 in total), to limit the number of power outlets needed to charge units.

Android Enterprise Recommended

The N7 Cachalot Pro II carries Google’s AER seal of approval, signaling it keeps pace with performance and security upgrades to its operating system and core functionality. This label, in combination with Newland’s free MDM Ndevor, enables clients to maintain secure visibility and control over their devices regardless of location.

Technical Specifications:

Display
Display Type: IPS
Display Size: 4 Inch
Display Resolution: 480 × 800 Pixels
Display Glass Type: Gorilla Glass
Touchscreen: Yes

Camera
Built-In Camera: Yes
Rear Camera Resolution: 13 MP
Built-In Flash: Yes
Sensor Type: CMOS

Memory & Storage
Internal Memory: 4 GB
Flash Memory: 64 GB

Supported Memory Cards:

• MicroSD (TransFlash)

Maximum Memory Card Capacity: 128 GB

Network & Connectivity
4G Standards:

• LTE-TDD
• LTE-FDD

Data Network Support:

• CDMA
• GSM
• LTE
• WCDMA

Supported GSM Bands:

• 850 MHz
• 900 MHz
• 1800 MHz
• 1900 MHz

Bluetooth: Yes
Bluetooth Version: 5.0
Bluetooth Low Energy (BLE): Yes
NFC: Yes
SIM Card Type: Nano SIM

Wi-Fi: Yes
Wi-Fi Band: Dual-Band (2.4 GHz / 5 GHz)

Supported Wi-Fi Standards:

• 802.11a
• 802.11b
• 802.11g
• Wi-Fi 4 (802.11n)
• Wi-Fi 5 (802.11ac)

GPS & Navigation
GPS: Yes
A-GPS: Yes
GLONASS: Yes
Galileo: Yes
BeiDou: Yes

Performance
Processor Cores: 8
Processor Frequency: 2 GHz

Scanner Type: 1D / 2D
Barcode Reader: Yes
RFID Reader: Yes
Phone Function: Yes
Keyboard Layout: QWERTY

Supported 1D Barcodes:

• Code 128
• Code 39
• EAN-13
• PDF417

Supported 2D Barcodes:

• Data Matrix
• QR Code

Drop Resistance: 180 Cm
Protection Rating: IP65
Product Color: Black

Ports & Interfaces
USB Ports:

• 1 × USB 3.2 Gen 1 Type-C Port

Power
AC Adapter Input Voltage: 100–240 V
AC Adapter Frequency: 50–60 Hz
Battery Voltage: 3.8 V
Fast Charging: Yes
Fast Charging Technology: Quick Charge 3.0

Sensors
Hall Sensor: Yes
High Gravity Sensor: Yes

Software
Operating System: Android 11

Environmental
Operating Temperature: -20°C To 55°C
Storage Temperature: -40°C To 70°C
Operating Humidity: 5% To 95% RH

What's in the Box:

• USB Cable
• Power Supply
