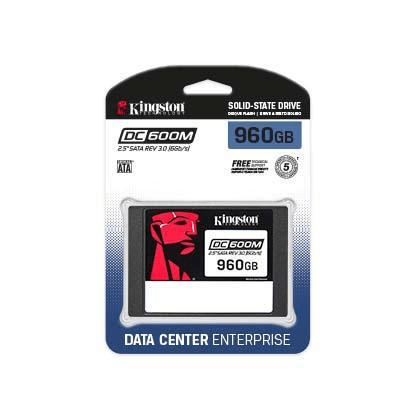

Kingston DC600M 960GB 2.5-inch SATA Enterprise SSD Mixed-Use 3D TLC Power Loss Protection

Kingston DC600M 3.84TB 2.5-inch SATA 3.0 Enterprise Internal SSD

Kingston’s DC600M SSD is a fourth-generation data center SATA 3.0, 6Gbps SSD with 3D TLC NAND intended for “mixed use” workloads. The DC600M is suited for use in high-volume rack-mount servers and includes hardware-based on-board PLP. Via power loss capacitors, DC600M protects data against unexpected power failure to reduce the possibility of data loss and ensure that the drive will successfully re-initialise on the next power-up of the system. DC600M is designed to deliver latency and IOPS consistency for system integrators, hyperscale data centers and cloud service providers.

Capacities available from 480GB–7680GB* to meet your data storage requirements.

Designed for data center environments

Optimised to meet the high demands of server RAID applications with low latency and IO consistency as the key design criteria.

Hardware-based PLP

Power loss capacitors to protect user data against unexpected power loss and enhance performance.

Delivers excellent quality of service (QoS)*

Optimised performance predictability to meet service-level agreements (SLAs).

Capacities of up to 7680GB

Upgrade and manage storage with capacities of up to 7680GB**.

Technical Specifications:

Storage
Average Latency 200 microsecond
Data Transfer Rate (Hard Drive) 600 MBps
Endurance (DWPD) 1.66
Endurance Type 7008 TB
Form Factor (Short) 2.5"
Form Factor (Short) (Metric) 6.4 cm
Hard Drive Capacity 3.84 TB
Hard Drive Features Dynamic and Static Wear Leveling, High Quality of Service (QoS), Hot-Plug Support, Power Loss Protection (PLP), S.M.A.R.T health information support
Hard Drive Type Internal hard drive
HD Interface Serial ATA-300, Serial ATA-600
Max 4KB Random Read 94000 IOPS
Max Internal Data Transfer Rate 560 MBps
Max Write Transfer Rate 530 MBps
Maximum 4KB Random Write 59000 IOPS
NAND Flash Memory Type 3D triple-level cell (TLC)
Storage Interface Serial ATA-600

Connectivity
Interface Provided 1 x SATA 6 Gb/s 7-Pin SATA

Power
Power Consumption 1.3 Watt (idle), 1.45 Watt (average), 1.6 Watt (max read), 3.6 Watt (max write)

Technical Information
Compatible Bay 2.5"
Hard Drive Form Factor 2.5"
Hard Drive Form Factor (Metric) 6.4 cm
Max Operating Temperature 158 °F
Max Storage Temperature 185 °F
Min Operating Temperature 32 °F
Min Storage Temperature -40 °F
MTBF 2,000,000 Hours
Vibration Acceleration (Non-operating) 20 gram
Vibration Acceleration (Operating) 2.17 gram
Vibration Frequency Range (Non-operating) 10-2000 Hz
Vibration Frequency Range (Operating) 7-800 Hz

Product Information
Packaged Quantity 1
Product Type Solid State Drive

Dimensions & Weight
Height 0.3 inch
Weight 3.26 ounce
Width 2.8 inch
Depth 3.9 inch
