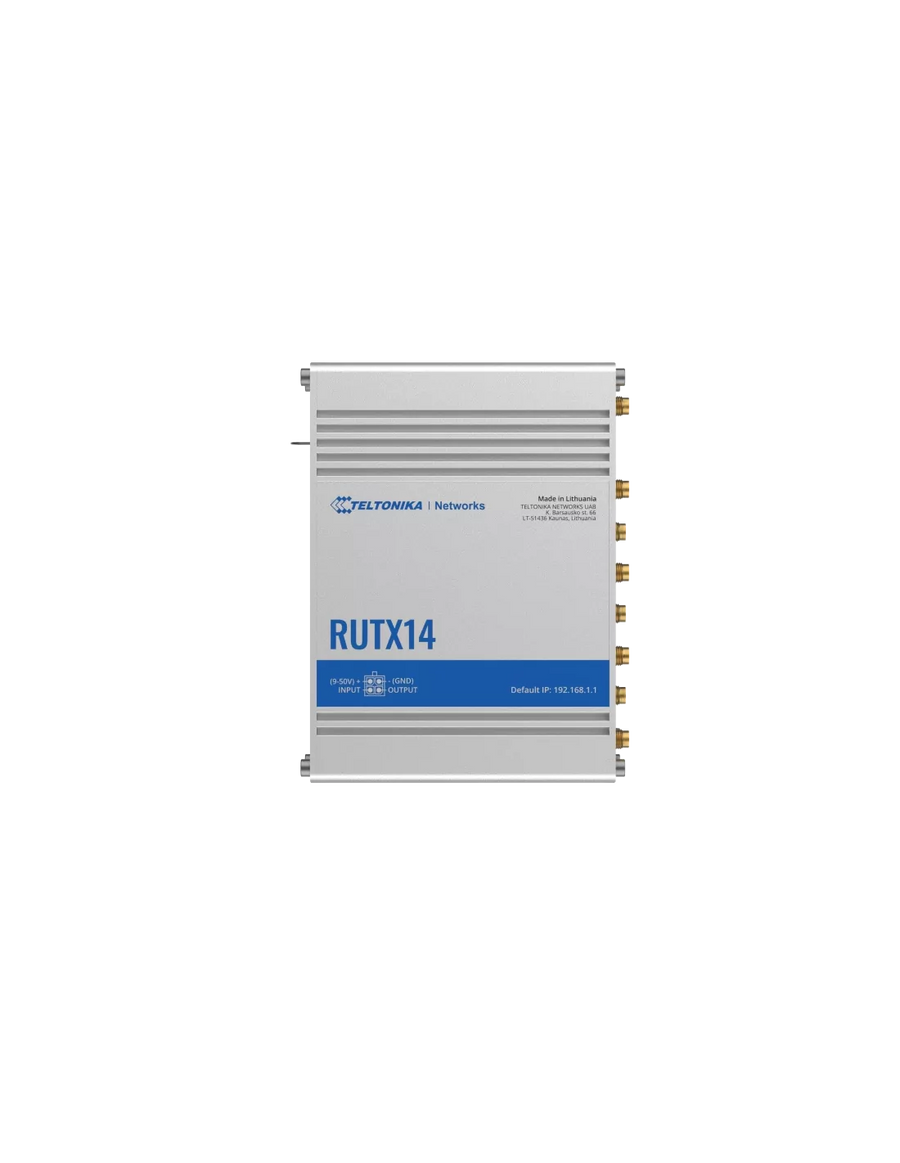

Teltonika 4G LTE Cat 12 Industrial Cellular Router | RUTX14

Teltonika Industrial Cellular LTE Cat12 Router

is the fastest single modem LTE-A Cat 12 router in the Teltonika Networks product range. With two SIM cards, Wave-2 dual-band Wi-Fi, five Gigabit Ethernet ports, and automatic failover, you may expect high compatibility, unbeatable network resilience, and exceptional speed.

Features

• Download up to 600 Mbps. Upload up to 150 Mbps
• DUAL SIM - With auto failover, backup WAN and other switching scenarios
• Wave-2 802.11ac Dual Band WI-FI and Bluetooth LE
• 5 x Gigabit Ethernet ports with up to 128 port/tag-based VLANs supported

Technical Specification

SIM switch: 2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection Status: Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation SMS: SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP USSD: Supports sending and reading Unstructured Supplementary Service Data messages Black/White list: Operator black/white list Multiple PDN: Possibility to use different PDNs for multiple network access and services Band management: Band lock, Used band status display APN: Auto APN Bridge: Direct connection (bridge) between mobile ISP and device on LAN Passthrough: Router assigns its mobile WAN IP address to another device on LAN Wireless mode: 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) WiFi security: WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation SSID/ESSID: ESSID stealth mode WiFi users: up to 150 simultaneous connections Wireless Hotspot: Captive portal (Hotspot), internal/external Radius server, SMS authorization, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes Wireless Connectivity Features: Wireless mesh (802.11s), fast roaming (802.11r), Relayd Bluetooth 4.0: Bluetooth low energy (LE) for short range communication WAN: 1 x WAN port  10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover LAN: 4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover Ethernet ports: 5 x RJ45 ports, 10/100/1000 Mbps I/O’s: 1 x Digital Input, 1 x Digital Output on 4-pin power connector Status LEDs: 2 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders Power: 1 x 4-pin power connector Antennas: 4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNNS USB: 1 x USB A port for external devices
