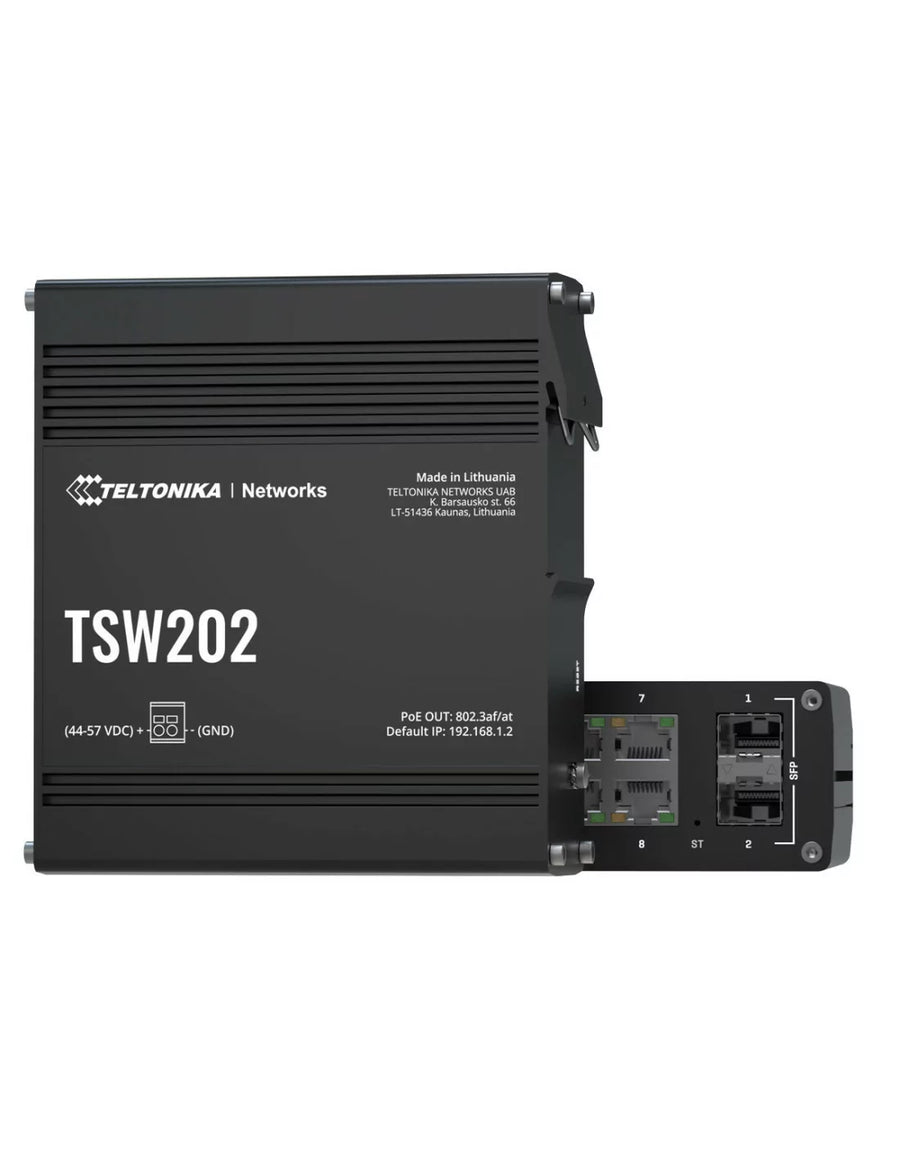

Teltonika TSW202 8-Port Industrial Managed PoE+ Switch

The TSW202 managed PoE+ Ethernet switch features eight Gigabit Ethernet ports with Power over Ethernet Plus (PoE+) capability and two SFP ports for fibre optic connections. This switch is designed for industrial networking applications, offering Layer 2 and Layer 3 functionalities, including VLANs, Quality of Service (QoS), and Simple Network Management Protocol (SNMP) for effective network oversight. Its design prioritises reliability and connectivity across various industrial environments. The TSW202 is suitable for businesses requiring a managed switch that accommodates both copper and fibre connectivity, providing a scalable option to meet increasing network demands.

• 8 × Gigabit Ethernet PoE+ ports with up to 30W per port for powering network devices
• 2 × SFP ports for fibre optic communication and extended network reach
• Managed Layer 2 switch with additional Layer 3 features for advanced network control
• Supports industrial protocols including PROFINET, EtherNet/IP, and MRP
• Up to 240W total PoE power budget for centralised power distribution
• TSWOS operating system for flexible configuration and management
• DIN rail mountable with rugged industrial design for harsh environments

Specifications:
Ports: 8 × 10/100/1000 Mbps RJ45 (PoE+), 2 × SFP
PoE Standards: IEEE 802.3af / 802.3at
PoE Power per Port: Up to 30W
Total PoE Budget: Up to 240W
Switch Type: Managed L2 with L3 features
Bandwidth: 20Gbps (non-blocking)
Forwarding Rate: 14.88 Mpps
Packet Buffer: 512KB
MAC Address Table: 8000 entries
Protocols Supported: PROFINET, EtherNet/IP, MRP, SNMP, VLAN, STP/RSTP
Operating System: TSWOS
Power Input: 7 – 57 VDC (2-pin industrial socket)
Operating Temperature: -40°C to 75°C
Mounting: DIN rail / wall mount
Ingress Protection: IP30
Product Dimensions: 132 × 44 × 122 mm
Product Weight: ±600 g

What’s in the box:

• Teltonika TSW202 8-Port Industrial Managed PoE+ Switch x1
• Quick Start Guide x1
