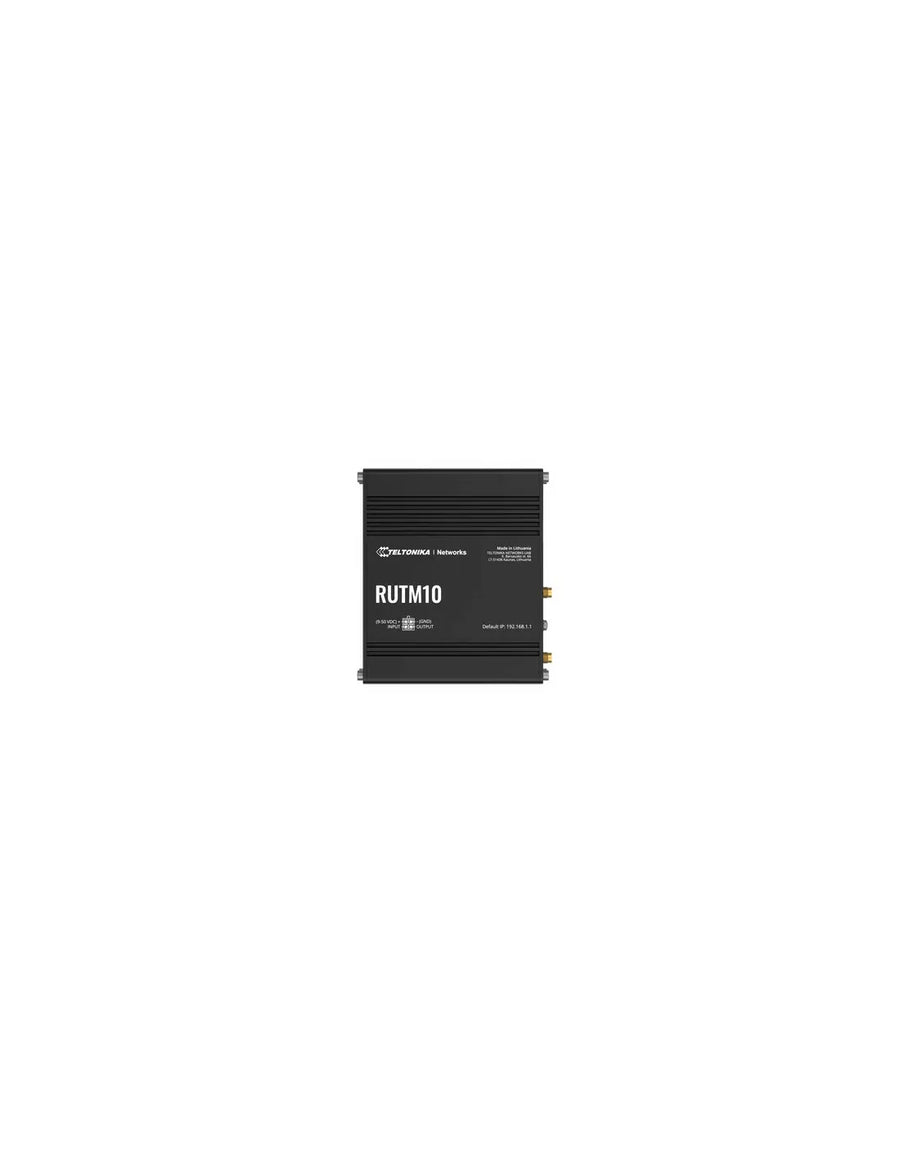

Teltonika Industrial Wired WiFi Router | RUTM10

Teltonika Industrial Wired Wi-Fi Router

The is a wired router featuring four Gigabit RJ45 ports and Wi-Fi 5 connectivity options, making it ideal for applications that require both wired connections and a wireless access option for Internet access. The can establish a Wi-Fi mesh network within your networking solutions, enabling a smoother and more robust wireless network experience while making it highly secure due to the router’s support of VPNs like OpenVPN, IPsec, Wireguard, and Tailscale.

Wireless

• Wireless mode

  802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)

• Wi-Fi security

  WPA2-Enterprise: PEAP, WPA2-PSK, WPA-EAP, WPA-PSK, WPA3-SAE, WPA3-EAP, OWE; AES-CCMP, TKIP, Auto-cipher modes, client separation, EAP-TLS with PKCS#12 certificates, disable auto-reconnect, 802.11w Protected Management Frames (PMF)

• SSID/ESSID

  ESSID stealth mode

• Wi-Fi users

  Up to 150 simultaneous connections

• Wireless Connectivity Features

  Wireless mesh (802.11s), fast roaming (802.11r), BSS transition management (802.11v), radio resource measurement (802.11k)

• Wireless MAC filter

  Allowlist, blocklist

• Wireless QR code generator

  Once scanned, a user will automatically enter your network without needing to input login information

Ethernet

• WAN

  1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

• LAN

  3 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover

Network

• Routing

  Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing

• Network protocols

  TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN

• VoIP passthrough support

  H.323 and SIP-alg protocol NAT helpers, allowing proper routing of VoIP packets

• Connection monitoring

  Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection

• Firewall

  Port forward, traffic rules, custom rules, TTL target customisation

• Firewall status page

  View all your Firewall statistics, rules, and rule counters

• Ports management

  View device ports, enable and disable each of them, turn auto-configuration on or off, change their transmission speed, and so on

• Network topology

  Visual representation of your network, showing which devices are connected to which other devices

• DHCP

  Static and dynamic IP allocation, DHCP relay, DHCP server configuration, status, static leases: MAC with wildcards

• QoS / Smart Queue Management (SQM)

  Traffic priority queuing by source/destination, service, protocol or port, WMM, 802.11e

• DDNS

  Supported >25 service providers, others can be configured manually

• DNS over HTTPS

  DNS over HTTPS proxy enables secure DNS resolution by routing DNS queries over HTTPS

• Network backup

  Wi-Fi WAN, VRRP, Wired options, each of which can be used as an automatic Failover

• Load balancing

  Balance Internet traffic over multiple WAN connections

• Hotspot

  Captive portal (hotspot), internal/external Radius server, Radius MAC authentication, SMS authorisation, SSO authentication, internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customisable themes and optionality to upload and download customised hotspot themes

• SSHFS

  Possibility to mount remote file system via SSH protocol

• VRF support

  Initial virtual routing and forwarding (VRF) support

• Traffic Management

  Real-time monitoring, wireless signal charts, traffic usage history

Security

• 802.1x

  Port-based network access control client

• Authentication

  Pre-shared key, digital certificates, X.509 certificates, TACACS+, Internal & External RADIUS users authentication, IP & login attempts block, time-based login blocking, built-in random password generator

• Firewall

  Pre-configured firewall rules can be enabled via WebUI, unlimited firewall configuration via CLI; DMZ; NAT; NAT-T

• Attack prevention

  DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention (SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks)

• VLAN

  Port and tag-based VLAN separation

• WEB filter

  Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only

• Access control

  Flexible access control of SSH, Web interface, CLI and Telnet

• SSL certificate generation

  Let's encrypt support

System Characteristics

• CPU

  MediaTek, Dual-Core, 880 MHz, MIPS1004Kc

• RAM

  256MB, DDR3

• FLASH storage

  16MB serial NOR flash, 256MB serial NAND flash

USB

• Data rate

  USB 2.0

• Applications

  Samba share, USB-to-serial

• External devices

  Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter

• Storage formats

  FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

• Input

  1 x Configurable digital Input, 0 - 6 V detected as logic low, 8 - 50 V detected as logic high

• Output

  1 x Configurable digital Output, Open collector output, max output 50 V, 300 mA

• Events

  Email, RMS

• I/O juggler

  Allows to set certain I/O conditions to initiate event

Power

• Connector

  4-pin industrial DC power socket

• Input voltage range

  9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max

• PoE (passive)

  Possibility to power up through LAN1 port, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 50 VDC

• Power consumption

  Idle: < 3.51 W, Max: < 8.65 W

Physical Interfaces

• Ethernet

  4 x RJ45 ports, 10/100/1000 Mbps

• I/O’s

  1 x Digital Input, 1 x Digital Output on 4-pin power connector

• Status LEDs

  8 x LAN status, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs

• Power

  1 x 4-pin power connector

• Antennas

  2 x RP-SMA for Wi-Fi

• USB

  1 x USB A port for external devices

• Reset

  Reboot/User default reset/Factory reset button

• Other
