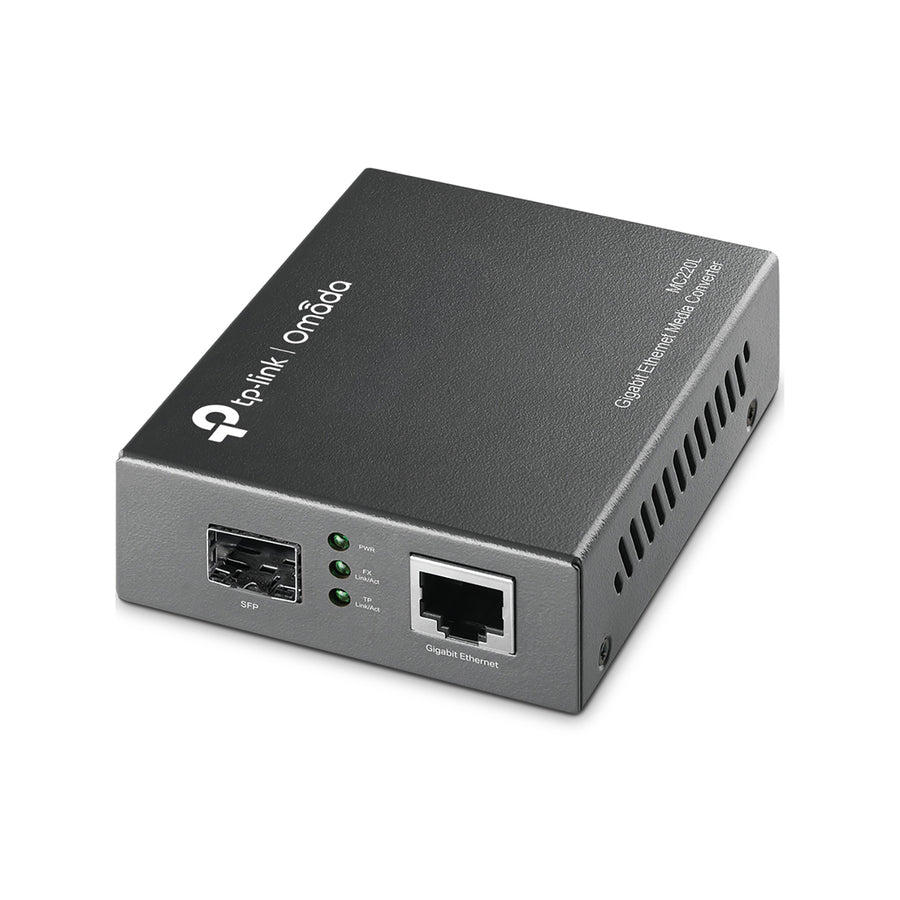

TP-Link 1Gbps RJ45 To 1Gbps SFP Module Media Converter

TP-Link Omada Gigabit SFP Media Converter

The is a media converter designed to convert between 1000BASE-SX/LX fiber and 10/100/1000Base-T copper media. It easily extends the distance of an existing gigabit network via fiber optic when integrated with the SFP Module. The applies the IEEE802.3ab 1000Base-T & IEEE802.3z 1000Base-SX/LX standards as part of its intended use with multi-mode/single-mode SFP Module. Long-range point-to-point connections are easily built with the gigabit fiber converters, making them ideal for network connections across multiple buildings, for remote surveillance and automated factory equipment.

Features:

• 1× 10/100/1000Mbps Auto-Negotiation RJ45 ports supporting Auto-MDI/MDIX
• Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
• Complies with IEEE 802.3ab and IEEE 802.3z
• FX port supports hot-swappable
• Maximum transmission distance depends on the inserting SFP

offers flexible installation on standalone desktops or inserted into a chassis (TP-Link's MC1400). The easy-to-view front panel status LEDs provide real-time status information to monitor up-to-the-minute network activity. While the maximum transmission distance of fiber optics depends on the insertion of the SFP module.

Technical Specifications

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z

Basic Function
Auto-negotiation of Half-Duplex / Full-Duplex transfer mode
Maximum transmission distance depends on the inserting SFP module

Interface
1× 1000M SFP port
1× 10/100/1000M RJ45 port (Auto MDI/MDIX)

Wave Length
Depends on the used SFP module

Network Media 1000BASE-X
Multi-mode/Single-mode SFP module

Network Media 1000BASE-T
UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ω STP (maximum 100m)

Dimensions (W x D x H)
3.7 × 2.9 × 1.1 in. (94.5 × 73.0 × 27.0 mm)

Power Supply
External Power Adapter

Max. Power Consumption
1.7 W

LED
PWR, Link/Act

Safety & Emission
FCC, CE, RoHS

Environment
Operating Temperature: 0℃ ~ 40℃ (32℉ ~ 104℉)
Storage Temperature: -40℃ ~ 70℃ (-40℉ ~ 158℉)
Operating Humidity: 10% ~ 90% non-condensing
Storage Humidity: 5% ~ 90% non-condensing

What's in the Box:

• Power Adapter
• Installation Guide
