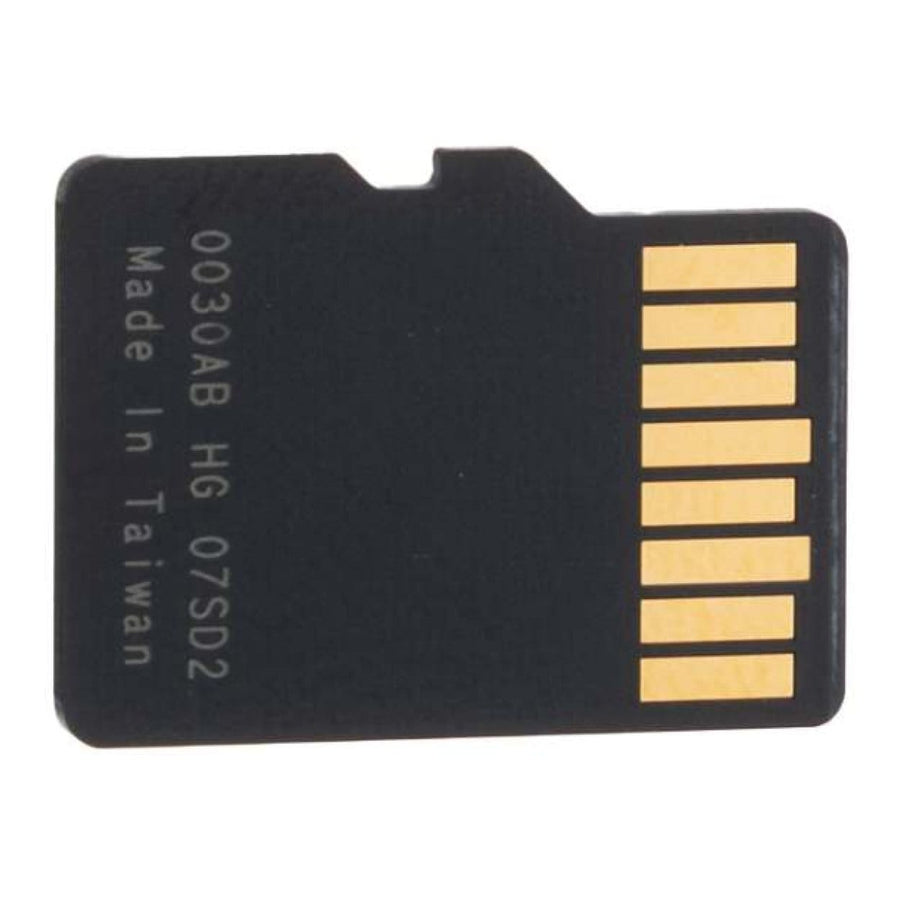

Transcend 64GB USD465T High Endurance microSD Card V30 U3 A2 100MB/s 3K P/E Cycles 3-Year Warranty

Transcend 64GB USD465T High Endurance Embedded SDXC V30 U3 A2 MicroSD Card

Utilizing top-quality 162-layer 3D NAND flash and rated to endure 3K P/E cycles, Transcend's USD465T memory cards combine the advantages of high performance and exceptional endurance at an affordable price. They are ideal for write-intensive applications such as medical devices, surveillance systems, and POS terminals.

Transcend also offers the USD465I with wide temperature (-40℃ ~ 85℃) capabilities to ensure sustained functionality and optimal reliability.

Firmware Features

• Built-in LDPC ECC (Error Correction Code) functionality
• Early Move
• Supports S.M.A.R.T. function to conduct health monitoring, analysis, and reporting for storage devices
• Wear-Leveling
• Supports password protection and secure erase via Scope Pro

Hardware Features

• Compliant with RoHS 2.0 standards
• Electrostatic protection (ESD IEC 61000-4-2)
• Compliant with SD specification 6.1
• Compliant with UHS-I
• Compliant with Video Speed Class 30 (V30)
• Compliant with Application Performance Class 2 (A2)
• Endurance: 3K P/E cycles (Program/Erase cycles) guaranteed
• Power Shield (PS) to ensure data transfer integrity and minimize data corruption in the drive during an abnormal power outage
• Promised operational reliability in a wide temperature range (from -40°C to 85°C)
• Supports Transcend Scope Pro software

Technical Specifications:

Appearance

Dimensions
11 × 15 × 1 mm (0.43" × 0.59" × 0.04")

Form Factor
microSD Flash Card

Storage

Flash Type
162-Layer 3D NAND Flash

Capacity
64 GB

Operating Environment

Operating Voltage
2.7V to 3.6V

Drop Test
1.5 m Free Fall

Operating Temperature

• Standard Temp.: -25°C (-13°F) to 85°C (185°F)
• Wide Temp.: -40°C (-40°F) to 85°C (185°F)

Storage Temperature
-40°C (-40°F) to 85°C (185°F)

Humidity
0% to 95%

Shock
Acceleration: 490 m/s² (Standard Holding Time: 11 ms, Semi-Sine Wave, Velocity Change: 3.44 m/s)

Vibration (Operating)
20 G (Peak-to-Peak), 20 Hz to 2,000 Hz

Performance

Read Speed (Max.)
Up to 100 MB/s

Write Speed (Max.)
Up to 80 MB/s

Terabytes Written (TBW)
Up to 2,660 TBW

Performance Note
Speed May Vary Due to Host Hardware, Software, Usage, and Storage Capacity.
Terabytes Written (TBW) Expresses the Endurance Under the Highest Capacity.

Warranty

Certifications
CE / UKCA / FCC

Warranty
Three-Year Limited Warranty

What's in the Box:

• microSD Flash Card
