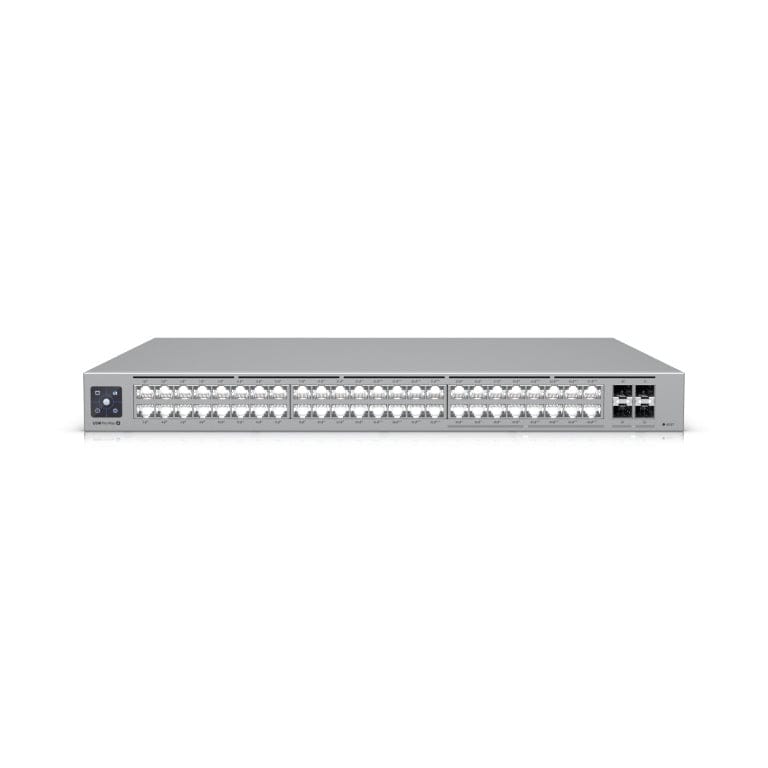

Ubiquiti 48-port, Layer 3 Etherlighting switch with 2.5 GbE and PoE++ output, 16x 2.5 GbE ports including (8) PoE+ and (8) PoE++, 32x GbE ports including (24) PoE+ and (8) PoE++, 4x 10G SFP+ ports, DC power backup ready, 720W

Ubiquiti Pro Max 48-port PoE GbE Managed Switch with 4x SFP+ Ports

Features

• Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network*
• 16x 2.5 GbE ports including 8x PoE+ and 8x PoE++
• 32x GbE ports including 24x PoE+ and 8x PoE++
• 4x 10G SFP+ ports
• DC power backup ready
• 720W total PoE availability
• Managed with UniFi Network 8.0.24 and later

Technical Specification

Management interface: Ethernet In-Band
Networking interface

• 32x GbE RJ45 ports
• 16x 1/2.5 GbE RJ45 ports
• 4x 10G SFP+ ports

PoE interface

• 32x PoE/PoE+ (Pins 1, 2+; 3, 6-)
• 16x 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)

Total non-blocking throughput: 112 Gbps
Switching capacity: 224 Gbps
Forwarding rate: 166.656 Mpps
Power method

• 1x Universal input, 100—240V AC, 50/60 Hz
• 1x USP-RPS DC input

Power supply: AC/DC, internal, 820W
Supported voltage range: 100—240V AC
Max. power consumption: 100W (Excluding PoE output) Total available PoE: 720W
Max. PoE wattage per port by PSE

• PoE: 15.4W
• PoE+: 30W
• PoE++: 60W

Voltage range PoE mode

• PoE: 44—57V
• PoE+: 50—57V

LCM display: 1x 1.3" touchscreen Etherlighting Ethernet

• Locating
• Speed/link
• Native VLAN/network

SFP+

• Locating
• Speed/link
• Native VLAN/network
